CPT Series 180° Pass-through Connector
Related Products
Part Information

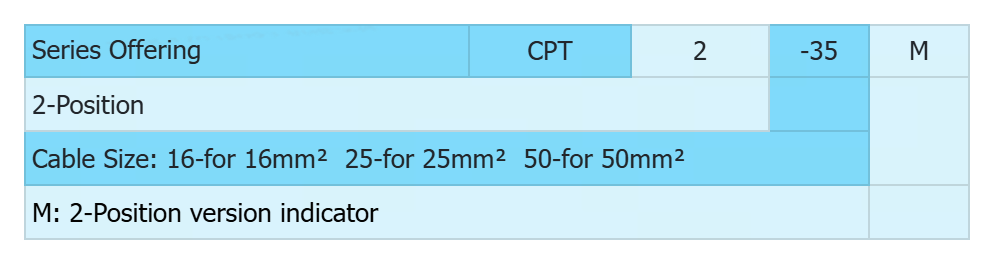

2-Position Connector Ordering Information
| No. | Ordering P/N | Product Description | Applicable Cable Size |
| 1 | CPT2-16M | CPT Series 2-Position Pass-through Connector/with 16㎡ Cable |
16mm² Shielded Cable |
| 2 | CPT2-25M | CPT Series 2-Position Pass-through Connector/with 25㎡ Cable | 25mm² Shielded Cable |
| 3 | CPT2-35M | CPT Series 2-Position Pass-through Connector/with 35㎡ Cable | 35mm² Shielded Cable |
| 4 | CPT2-50M | CPT Series 2-Position Pass-through Connector/with 50㎡ Cable | 50mm² Shielded Cable |
Structural Features:
Easy installation, reliable connection, excellent shielding properties, and low-cost solution.

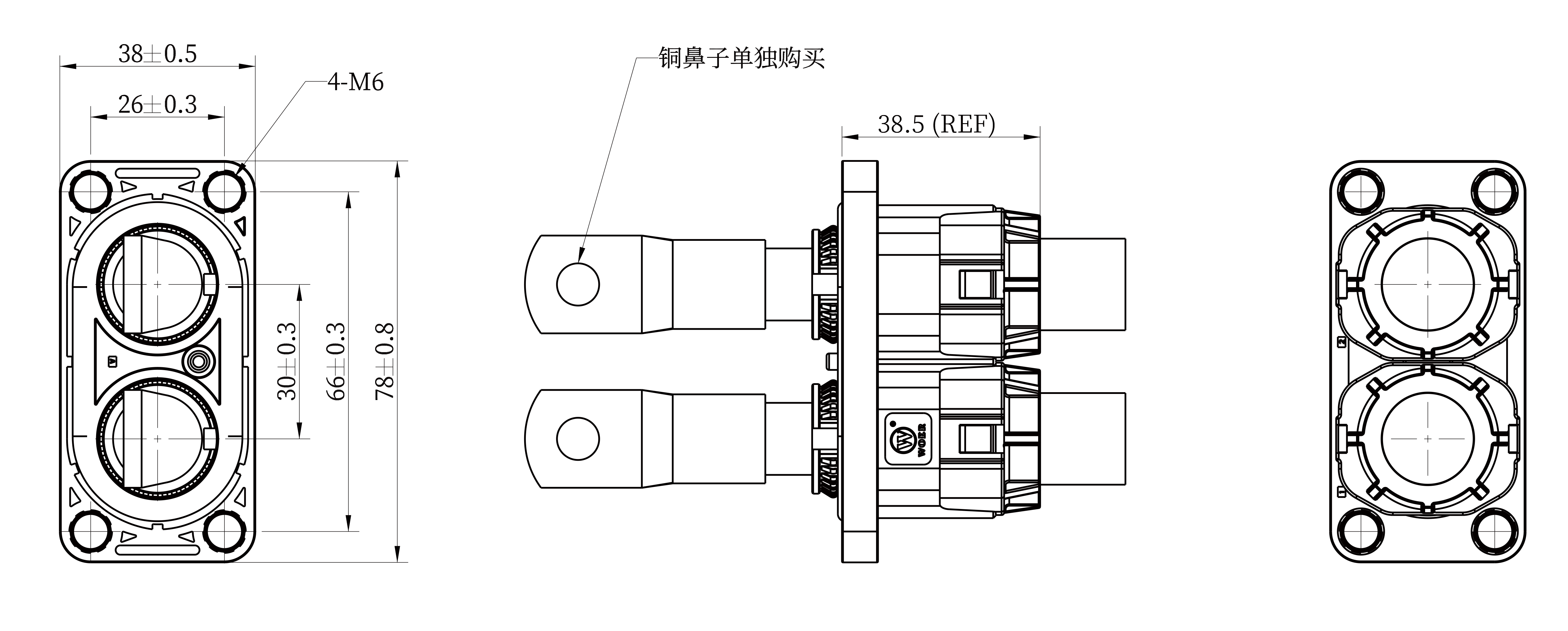

2-Position Connector Outline Drawing

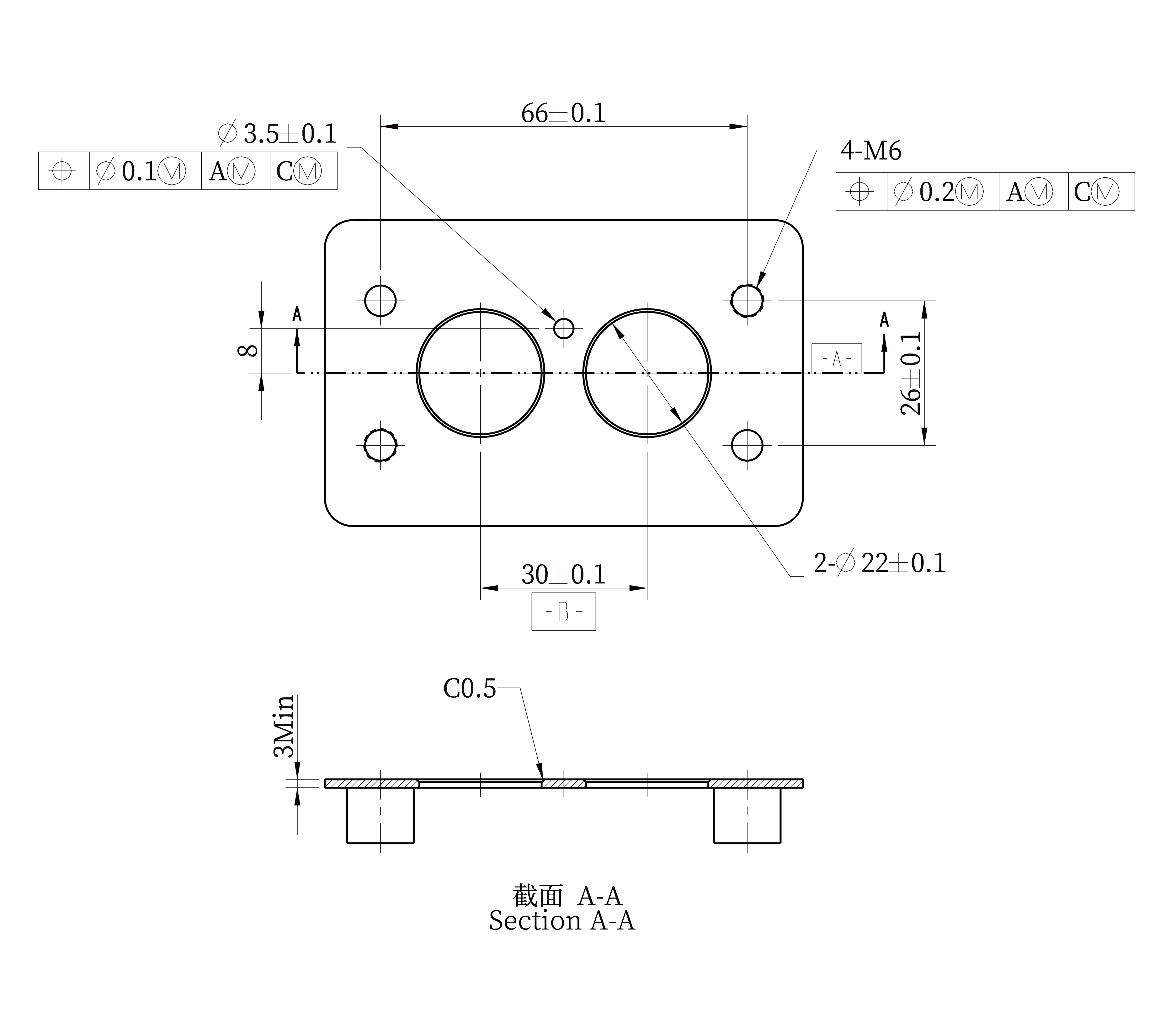

Suggested Hole Dimension for 2-Position Connector
| Production Process | ||||
|
Injection Molding Workshop |
Compounding & Mixing Workshop |
Machining Workshop |
Cable Stranding & Cabling |
Heat-Shrink Tubing Production Line |
|
Molding & Tooling Workshop |
Rubber Injection Workshop |
Stamping & Press Workshop |
Irradiation Crosslinking Center |
Embossed Tubing Production Line |

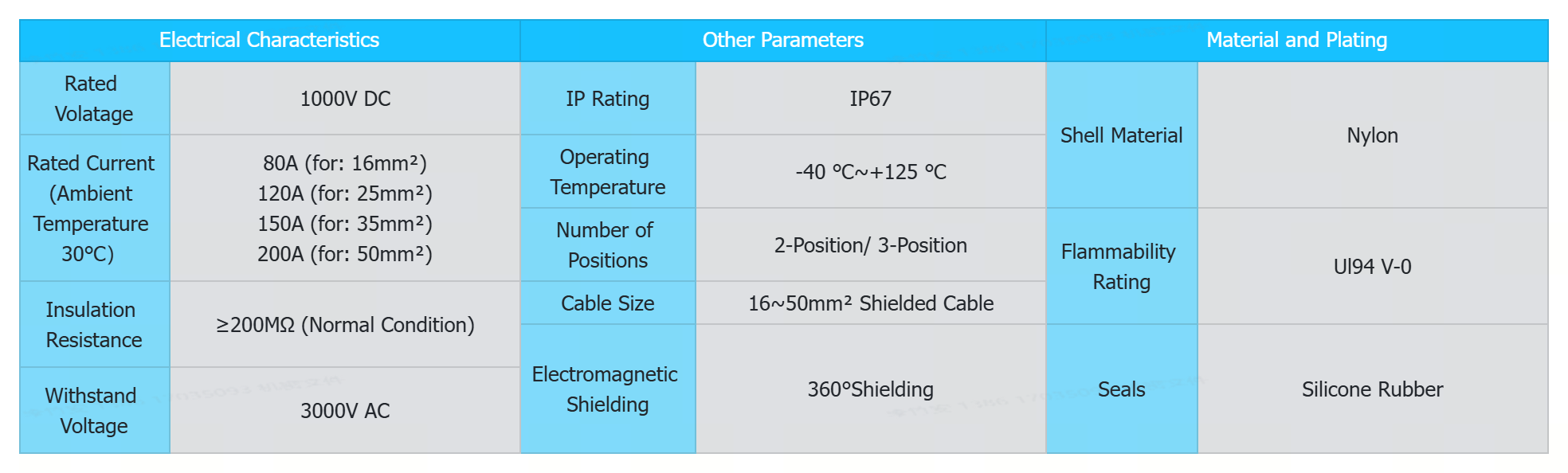

Performance Parameters
|
① Perfect quality management and process production. |
 |
|
|
② A professional team engaged in the production and research and development of this product for more than 12 years. |
|
③ A first-class and complete production workshop and equipment. |
 |
|
|
④ Comprehensive product testing equipment. We have the first authorized UL sighting laboratory in China. |
