UT Series Signal Connectors
be compatible with similar products in shape and properties from other companies. The connector uses a metal shell for a solid and
reliable connection, with a triple-engagement guarantee and a variety of anti-misplug keys designed to prevent misplacement.
Related Products
No data
Outline Dimensions:
Plug Outlines Drawing
Remark: "*"represents optional key

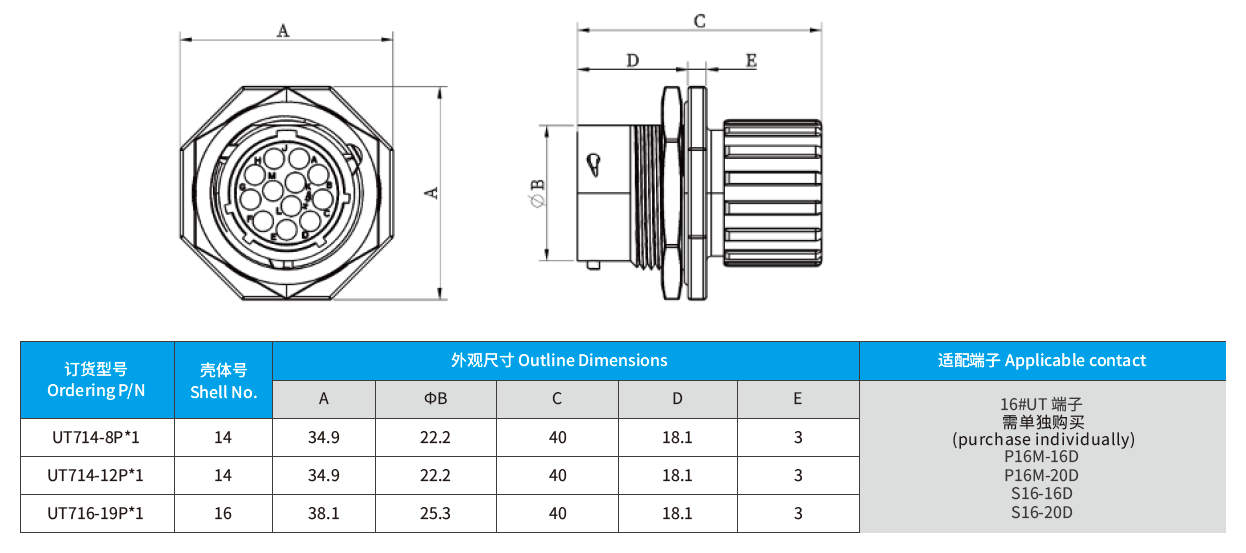

Receptacle Outline Drawing
Remark: "*"represents optional key
Receptacle Outline Drawing(No backshell accessories)
Remark: "*"represents optional key
Receptacle Outline Drawing(Glue filling)
Remark: "*"represents optional key

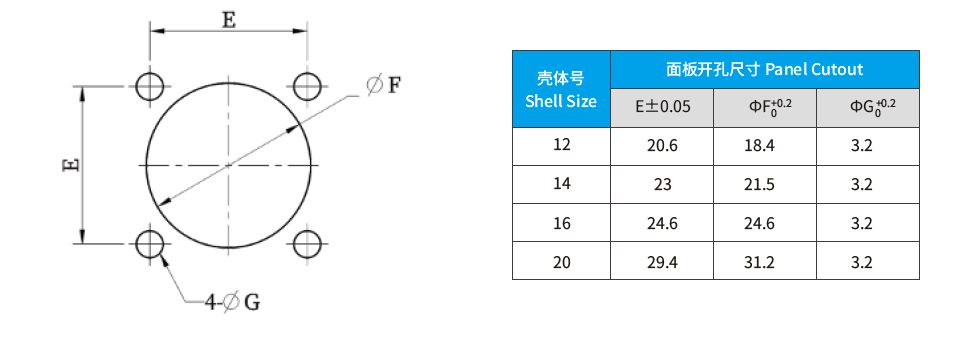

Recommended Panel Cutout

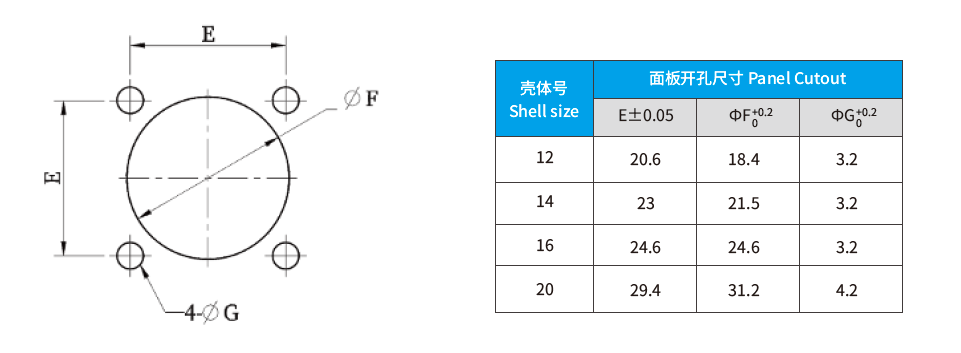

Recommended Panel Cutout for Rceptacle Installation(No backshell accessories)

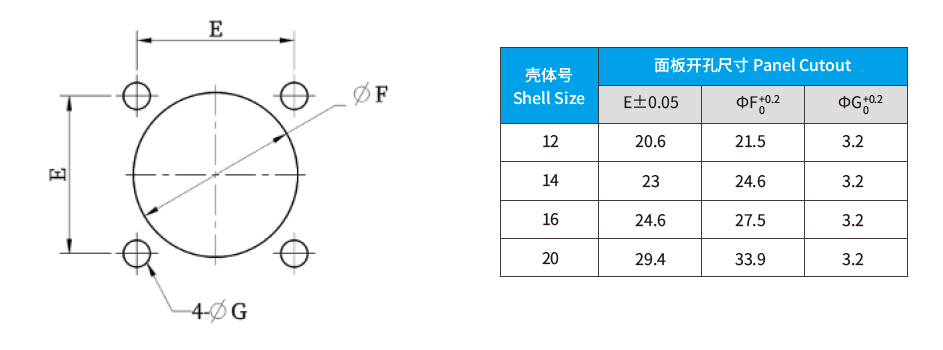

Recommended Panel Cutout for Receptacle(Glue-filled Receptacle)
Eight Square Plate Receptacle Outline Drawing
Remark: "*"represents optional key
Eight Square Plate Receptacle Outline Drawing(No backshell accessories)
Remark: "*"represents optional key

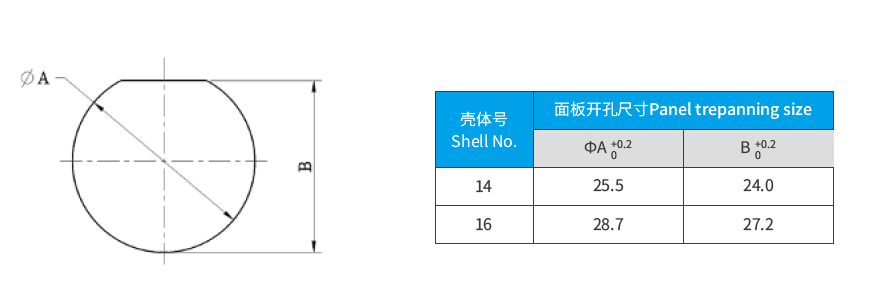

Recommended Panel Cutout for Receptacle(Eight square plate receptacle)

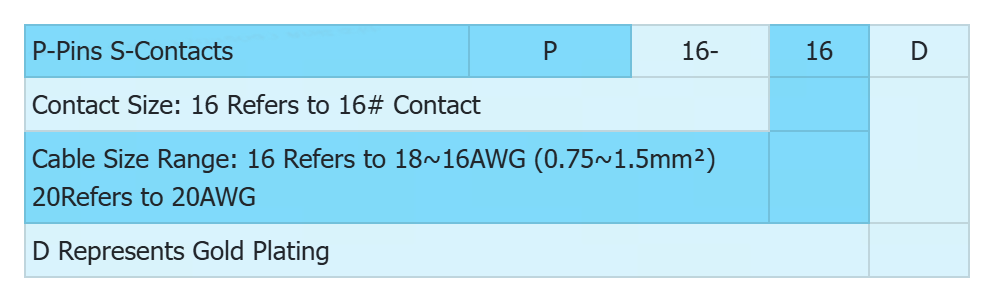

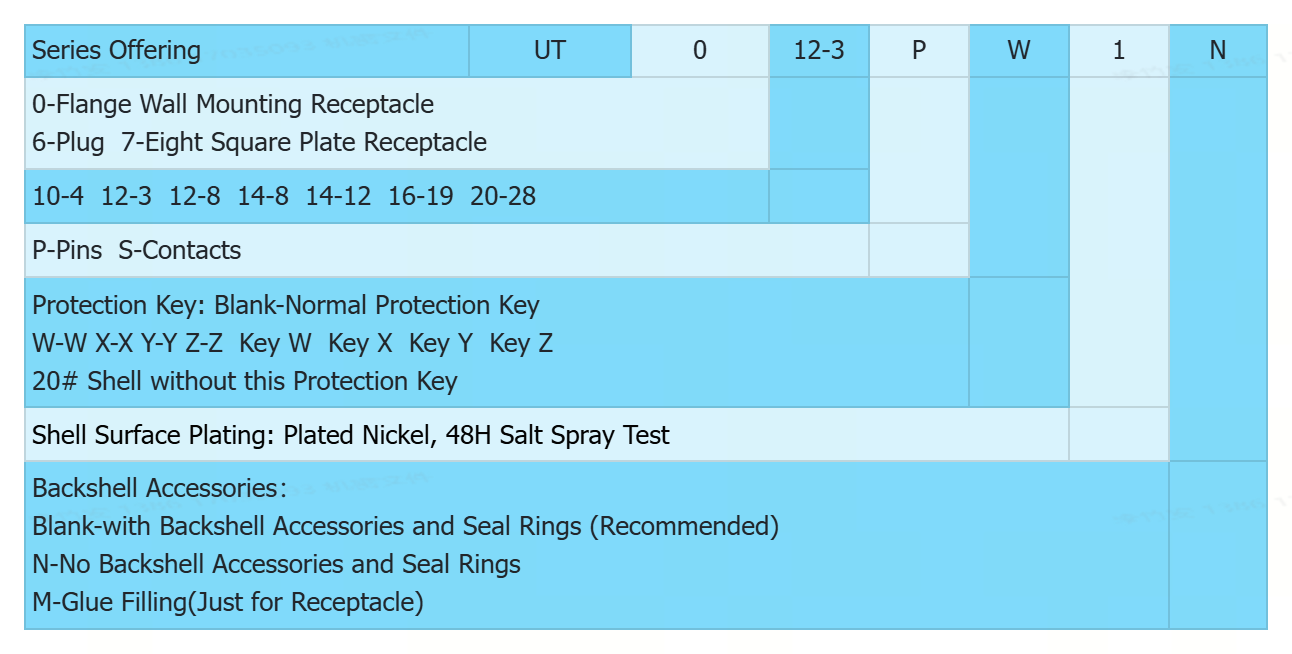

Model Description:
| Production Process | ||||
|
Injection Molding Workshop |
Compounding & Mixing Workshop |
Machining Workshop |
Cable Stranding & Cabling |
Heat-Shrink Tubing Production Line |
|
Molding & Tooling Workshop |
Rubber Injection Workshop |
Stamping & Press Workshop |
Irradiation Crosslinking Center |
Embossed Tubing Production Line |
Insert Configuration
View from the front or back of the pins (arranged clockwise)

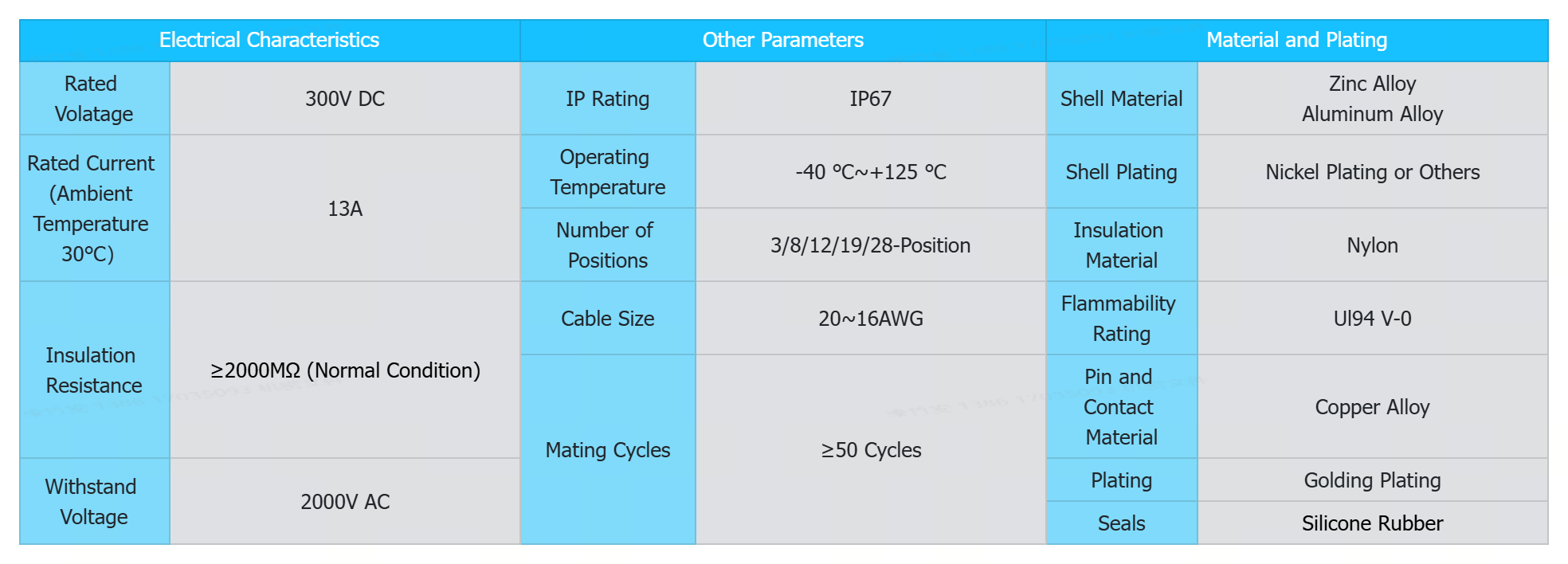

Performance Parameters
|
