HPLA500 Series Single-Core 500A Connector with HVIL
Related Products

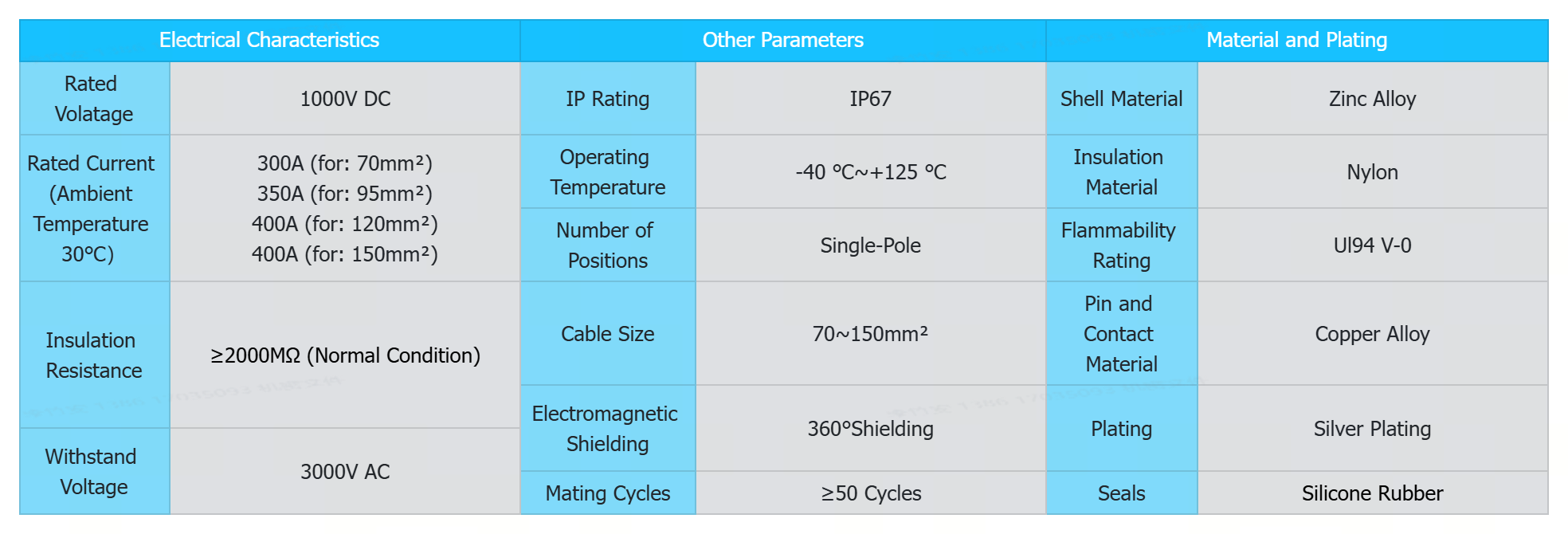

Product List:
Plug Ordering Information

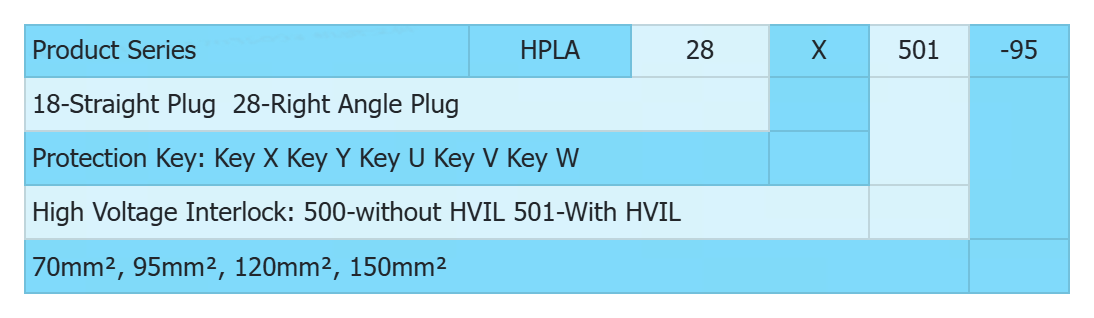

| No. | Ordering P/N | Description | Applicable Wire Size |
| 1 | HPLA18*-500-70 | Straight Key* without High Voltage Interlock Connector Plug (Male) |
70mm² Shielded Wire |
| 2 | HPLA18*-500-95 | Straight Key* without High Voltage Interlock Connector Plug (Male) | 95mm² Shielded Wire |
| 3 | HPLA18*-500-120 | Straight Key* without High Voltage Interlock Connector Plug (Male) |
120mm² Shielded Wire |
| 4 | HPLA18*-500-150 | Straight Key* without High Voltage Interlock Connector Plug (Male) | 150mm² Shielded Wire |
| 5 | HPLA18*-501-70 | Straight Key* with High Voltage Interlock Connector Plug (Male) |
70mm² Shielded Wire |
| 6 | HPLA18*-501-95 | Straight Key* with High Voltage Interlock Connector Plug (Male) | 95mm² Shielded Wire |
| 7 | HPLA18*-501-120 | Straight Key* with High Voltage Interlock Connector Plug (Male) |
120mm² Shielded Wire |
| 8 | HPLA18*-501-150 | Straight Key* with High Voltage Interlock Connector Plug (Male) | 150mm² Shielded Wire |
| 9 | HPLA28*-500-70 | Right Angle Key* without High Voltage Interlock Connector Plug (Male) |
70mm² Shielded Wire |
| 10 | HPLA28*-500-95 | Right Angle Key* without High Voltage Interlock Connector Plug (Male) | 95mm² Shielded Wire |
| 11 | HPLA28*-500-120 | Right Angle Key* without High Voltage Interlock Connector Plug (Male) |
120mm² Shielded Wire |
| 12 | HPLA28*-500-150 | Right Angle Key* without High Voltage Interlock Connector Plug (Male) | 150mm² Shielded Wire |
| 13 | HPLA28*-501-70 | Right Angle Key* with High Voltage Interlock Connector Plug (Male) |
70mm² Shielded Wire |
| 14 | HPLA28*-501-95 | Right Angle Key* with High Voltage Interlock Connector Plug (Male) | 95mm² Shielded Wire |
| 15 | HPLA28*-501-120 | Right Angle Key* with High Voltage Interlock Connector Plug (Male) |
120mm² Shielded Wire |
| 16 | HPLA28*-501-150 | Right Angle Key* with High Voltage Interlock Connector Plug (Male) | 150mm² Shielded Wire |
Remark: *represents key, X, Y, U, V, W key optional, Each key corresponds to a unique color, X-Orange, Y-Black, U-Yellow, V-Green, W-Red.
Receptacle Ordering Information

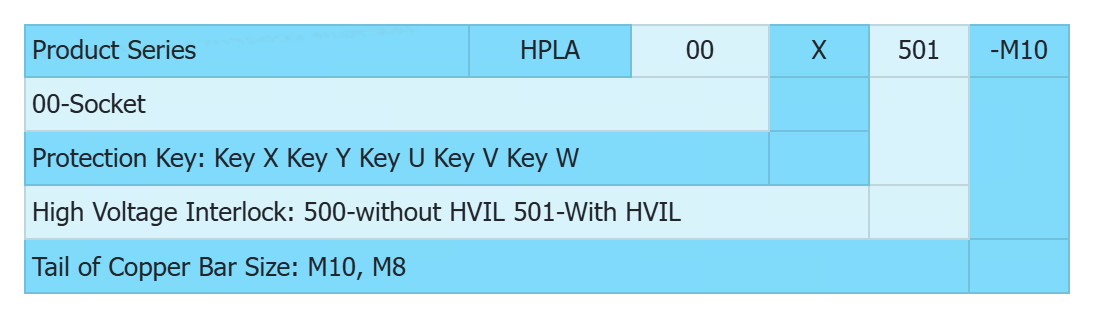

| No. | Ordering P/N | Description | Tail's Hole Size |
| 1 | HPLA00*-500-M10 | Receptacle Key* without High Voltage Interlock Connector Plug (Male) |
M10 |
| 2 | HPLA00*-501-M10 | Receptacle Key* with High Voltage Interlock Connector Plug (Male) | M10 |
| 3 | HPLA00*-500-M8 | Receptacle Key* without High Voltage Interlock Connector Plug (Male) |
M8 |
| 4 | HPLA00*-501-M8 | Receptacle Key* with High Voltage Interlock Connector Plug (Male) | M8 |
Remark: *represents key, X, Y, U, V, W key optional, Each key corresponds to a unique color, X-Orange, Y-Black, U-Yellow, V-Green, W-Red.
Outline Dimensions:

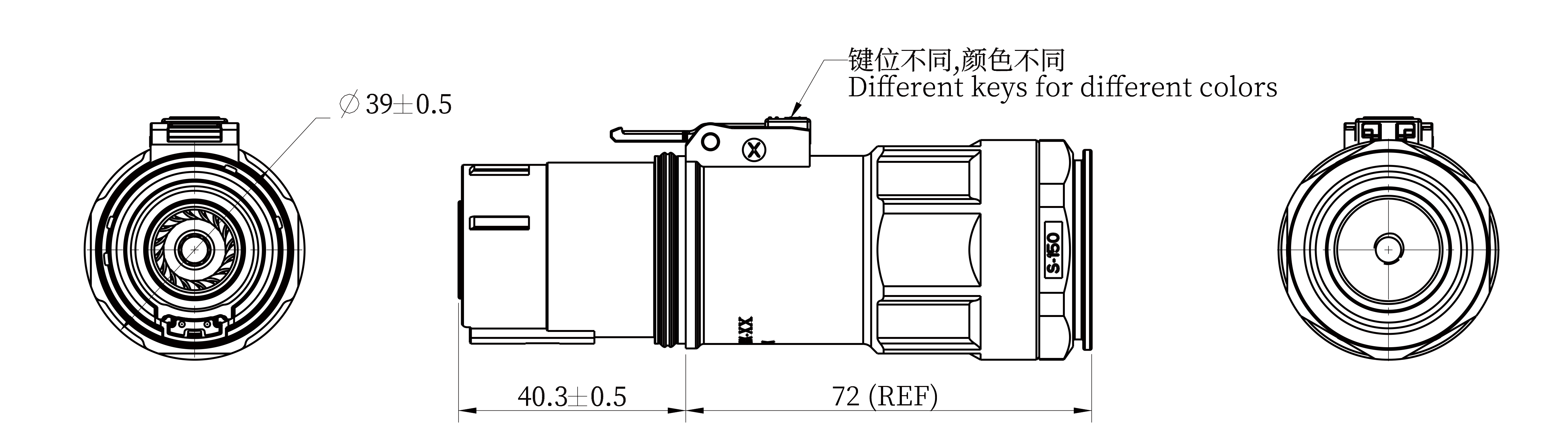

Straight Plug Outline Drawing

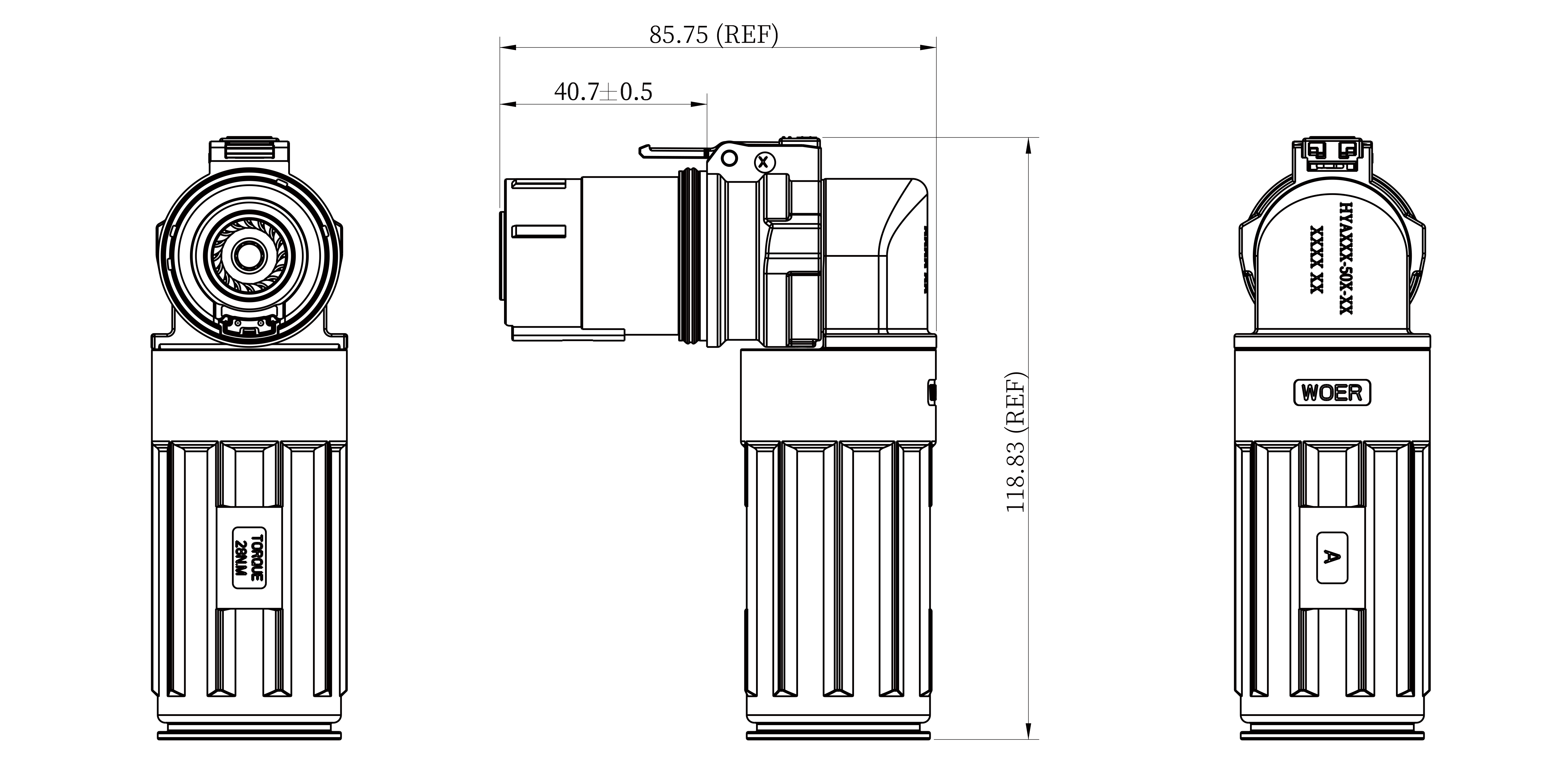

Right Angle Plug Outline Drawing

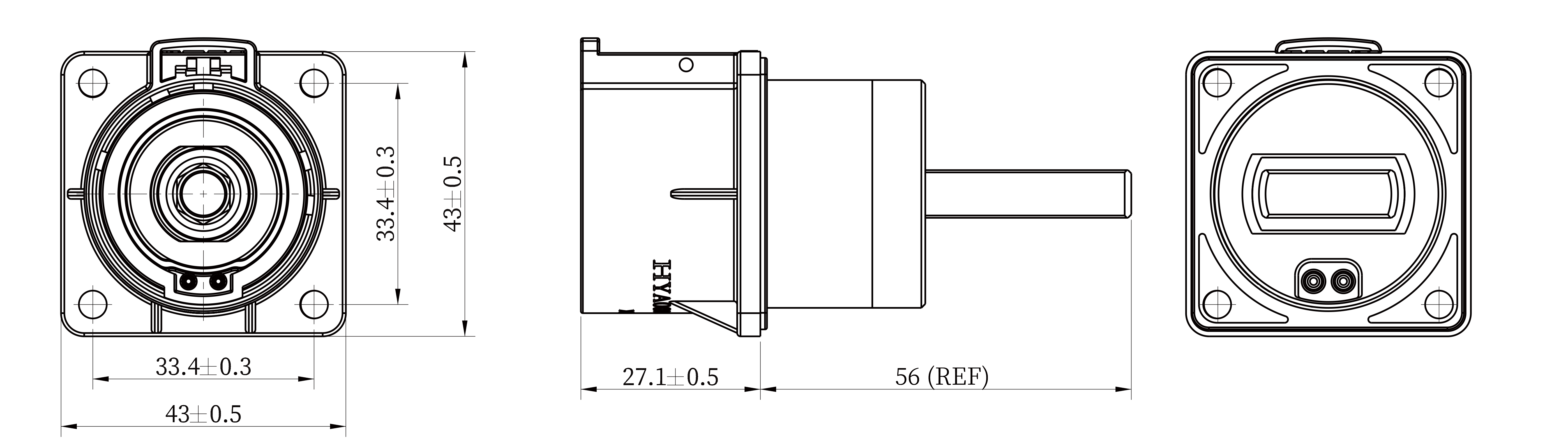

Receptacle Outline Drawing
Recommended Panel Cutout
