HPLB300 Metal High Voltage Connector
This series of connectors is designed for high-current transmission in the electric vehicle (EV) and hybrid power markets. They support crimping for 35 to 70 mm² cables with a rated current range of 150A to 250A. These connectors are primarily used for auxiliary equipment in EV and HEV applications, including high-voltage distribution boxes, on-board chargers, battery packs, motors, and electronic controllers.

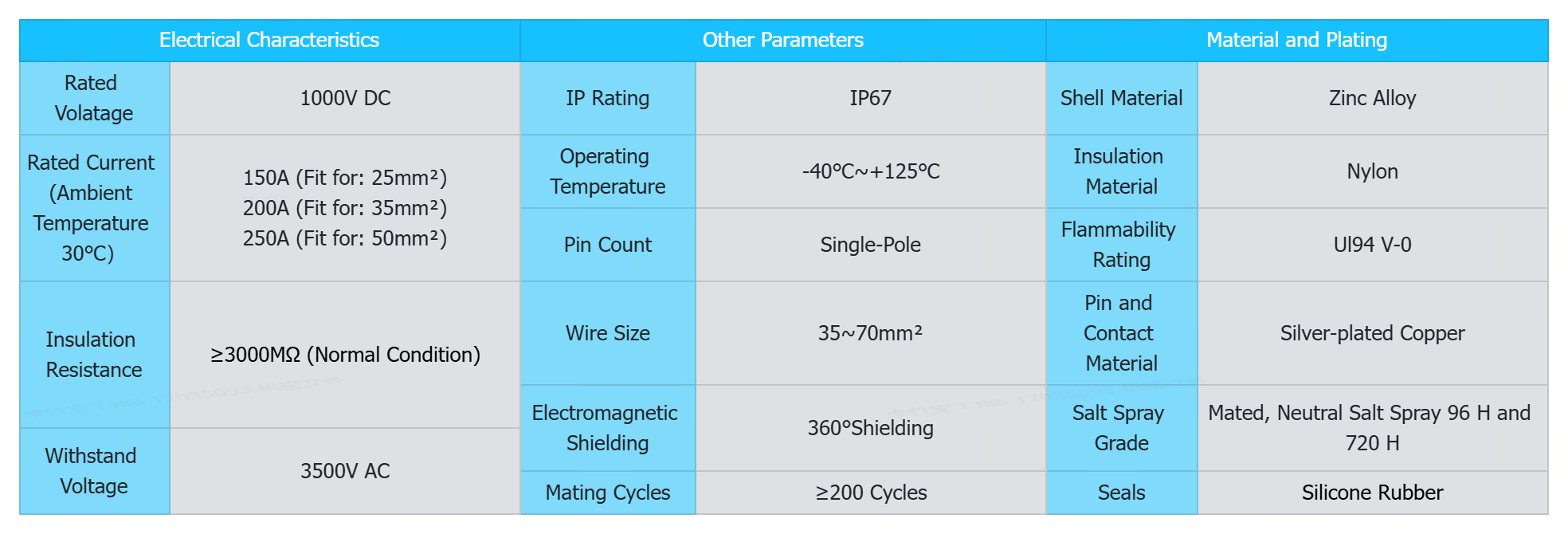

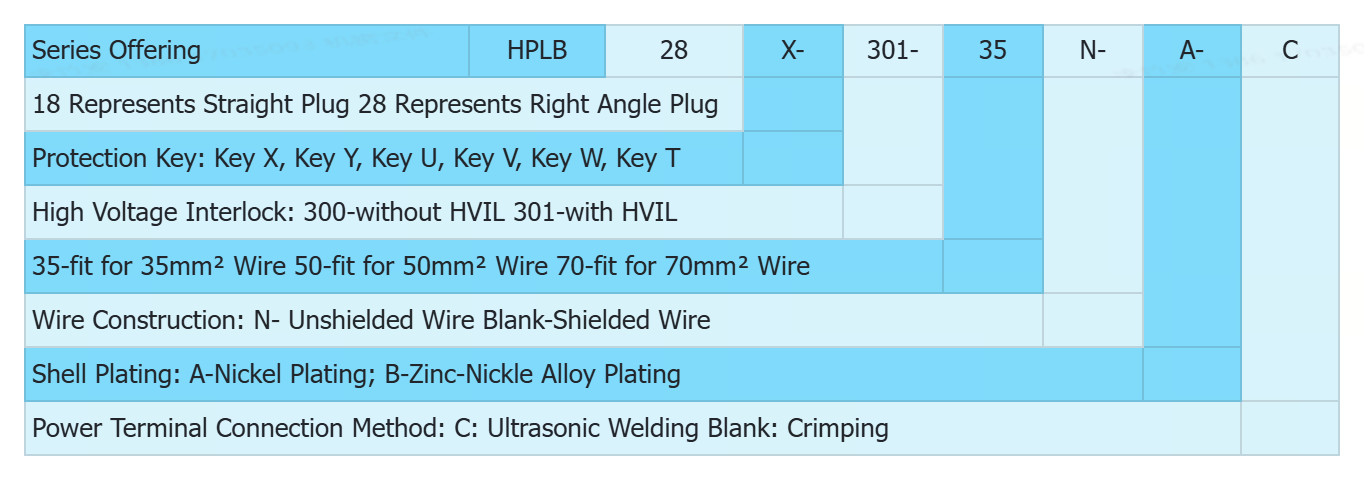

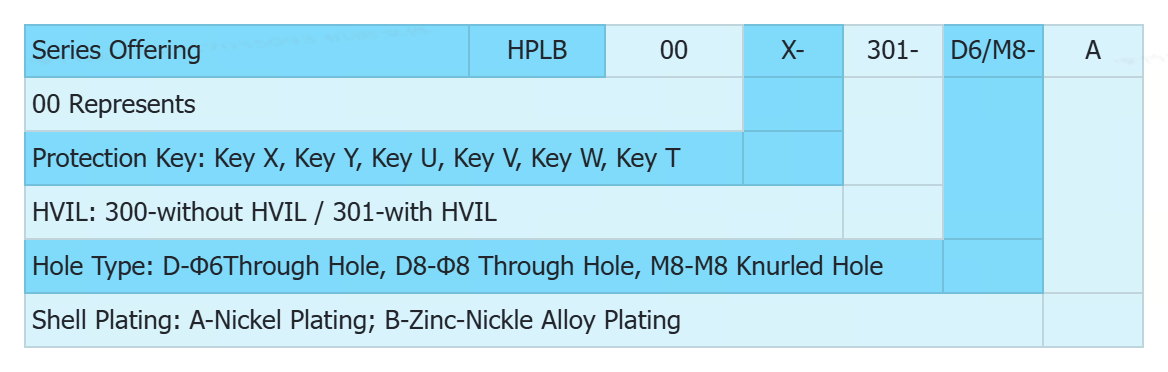

Model Description:
Remark:
1. Only plugs and sockets with identical product series, shell number, contact count, and keying position are intermateable. Example: HPLB18X-301-50-A and HPLB00X-301-D6-A.
2. This product is suitable for three cable specifications: 35 mm², 50mm² , and 70mm² . The conductor cross-sectional area shall meet the nominal cross-section requirements.
3. The cables referred to in the following text are GB/T cross-linked polyolefin cables. Tinned copper wire is recommended. If other cable specifications (e.g., silicone rubber cables) are to be used for crimping operations, please confirm and validate with our technical department.
Share:
Related Products
HPL36 series connector is specially d...
HPL200 series connector mainly applie...
Description
Datasheet
Highlights
Product List:
Straight Plug List
| Ordering P/N | Description | Applicable Wire Size |
| HPLB18*-301-35-A | Straight Plug with HVIL, Key*, 96 H Neutral Salt Spray |
35mm² |
| HPLB18*-301-50-A | Straight Plug with HVIL, Key*, 96 H Neutral Salt Spray | 50mm² |
| HPLB18*-301-70-A | Straight Plug with HVIL, Key*, 96 H Neutral Salt Spray | 70mm² |
| HPLB18*-301-35-B | Straight Plug with HVIL, Key*, 720 H Neutral Salt Spray | 35mm² |
| HPLB18*-301-50-B | Straight Plug with HVIL, Key*, 720 H Neutral Salt Spray | 50mm² |
| HPLB18*-301-70-B | Straight Plug with HVIL, Key*, 720 H Neutral Salt Spray | 70mm² |
| HPLB18*-300-35-A | Straight Plug without HVIL, Key*, 96 H Neutral Salt Spray |
35mm² |
| HPLB18*-300-50-A | Straight Plug without HVIL, Key*, 96 H Neutral Salt Spray | 50mm² |
| HPLB18*-300-70-A | Straight Plug Key*without High Voltage Interlock Plug Neutral Salt Spray 96 H | 70mm² |
| HPLB18*-300-35-B | Straight Plug Key*without High Voltage Interlock Plug Neutral Salt Spray 720 H | 35mm² |
| HPLB18*-300-50-B | Straight Plug Key*without High Voltage Interlock Plug Neutral Salt Spray 720 H | 50mm² |
| HPLB18*-300-70-B | Straight Plug Key*without High Voltage Interlock Plug Neutral Salt Spray 720 H | 70mm² |
| HPLB18*-301-35N-A | Straight Plug with HVIL, Key*, for Unshielded Wire, 96 H Neutral Salt Spray |
35mm² Unshielded Wire |
| HPLB18*-301-50N-A | Straight Plug with HVIL, Key*, for Unshielded Wire, 96 H Neutral Salt Spray | 50mm² Unshielded Wire |
| HPLB18*-301-70N-A | Straight Plug with HVIL, Key*, for Unshielded Wire, 96 H Neutral Salt Spray | 70mm² Unshielded Wire |
| HPLB18*-301-35N-B | Straight Plug with HVIL, Key*, for Unshielded Wire, 720 H Neutral Salt Spray | 35mm² Unshielded Wire |
| HPLB18*-301-50N-B | Straight Plug with HVIL, Key*, for Unshielded Wire, 720 H Neutral Salt Spray | 50mm² Unshielded Wire |
| HPLB18*-301-70N-B | Straight Plug with HVIL, Key*, for Unshielded Wire, 720 H Neutral Salt Spray | 70mm² Unshielded Wire |
| HPLB18*-300-35N-A | Straight Plug without HVIL, Key*, for Unshielded Wire, 96 H Neutral Salt Spray |
35mm² Unshielded Wire |
| HPLB18*-300-50N-A | Straight Plug without HVIL, Key*, for Unshielded Wire, 96 H Neutral Salt Spray | 50mm² Unshielded Wire |
| HPLB18*-300-70N-A | Straight Plug without HVIL, Key*, for Unshielded Wire, 96 H Neutral Salt Spray | 70mm² Unshielded Wire |
| HPLB18*-300-35N-B | Straight Plug without HVIL, Key*, for Unshielded Wire, 720 H Neutral Salt Spray | 35mm² Unshielded Wire |
| HPLB18*-300-50N-B | Straight Plug without HVIL, Key*, for Unshielded Wire, 720 H Neutral Salt Spray | 50mm² Unshielded Wire |
| HPLB18*-300-70N-B | Straight Plug without HVIL, Key*, for Unshielded Wire, 720 H Neutral Salt Spray | 70mm² Unshielded Wire |
Right Angle Plug List
| Ordering P/N | Description | Applicable Wire Size |
| HPLB28*-301-35-A | Right Angle Plug with HVIL, *Key, 96 H Neutral Salt Spray |
35mm² |
| HPLB28*-301-50-A | Right Angle Plug with HVIL, *Key, 96 H Neutral Salt Spray | 50mm² |
| HPLB28*-301-70-A | Right Angle Plug with HVIL, *Key, 96 H Neutral Salt Spray | 70mm² |
| HPLB28*-301-35-B | Right Angle Plug with HVIL, *Key, 720 H Neutral Salt Spray | 35mm² |
| HPLB28*-301-50-B | Right Angle Plug with HVIL, *Key, 720 H Neutral Salt Spray | 50mm² |
| HPLB28*-301-70-B | Right Angle Plug with HVIL, *Key, 720 H Neutral Salt Spray | 70mm² |
| HPLB28*-301-35-A-C | Right Angle Plug with HVIL, Key*, 96 H Neutral Salt Spray (Ultrasonic Welding) |
35mm² |
| HPLB28*-301-50-A-C | Right Angle Plug with HVIL, Key*, 96 H Neutral Salt Spray (Ultrasonic Welding) | 50mm² |
| HPLB28*-301-70-A-C | Right Angle Plug with HVIL, Key*, 96 H Neutral Salt Spray (Ultrasonic Welding) | 70mm² |
| HPLB28*-301-35-B-C | Right Angle Plug with HVIL, Key*, 720 H Neutral Salt Spray (Ultrasonic Welding) | 35mm² |
| HPLB28*-301-50-B-C | Right Angle Plug with HVIL, Key*, 720 H Neutral Salt Spray (Ultrasonic Welding) | 50mm² |
| HPLB28*-301-70-B-C | Right Angle Plug with HVIL, Key*, 720 H Neutral Salt Spray (Ultrasonic Welding) | 70mm² |
| HPLB28*-300-35-A | Right Angle Plug without HVIL, *Key, 96 H Neutral Salt Spray |
35mm² |
| HPLB28*-300-50-A | Right Angle Plug without HVIL, *Key, 96 H Neutral Salt Spray | 50mm² |
| HPLB28*-300-70-A | Right Angle Plug without HVIL, *Key, 96 H Neutral Salt Spray | 70mm² |
| HPLB28*-300-35-B | Right Angle Plug without HVIL, *Key, 720 H Neutral Salt Spray | 35mm² |
| HPLB28*-300-50-B | Right Angle Plug without HVIL, *Key, 720 H Neutral Salt Spray | 50mm² |
| HPLB28*-300-70-B | Right Angle Plug without HVIL, *Key, 720 H Neutral Salt Spray | 70mm² |
| HPLB28*-300-35-A-C | Right Angle Plug without HVIL, Key*, 96 H Neutral Salt Spray (Ultrasonic Welding) |
35mm² |
| HPLB28*-300-50-A-C | Right Angle Plug without HVIL, Key*, 96 H Neutral Salt Spray (Ultrasonic Welding) | 50mm² |
| HPLB28*-300-70-A-C | Right Angle Plug without HVIL, Key*, 96 H Neutral Salt Spray (Ultrasonic Welding) | 70mm² |
| HPLB28*-300-35-B-C | Right Angle Plug without HVIL, Key*, 720 H Neutral Salt Spray (Ultrasonic Welding) | 35mm² |
| HPLB28*-300-50-B-C | Right Angle Plug without HVIL, Key*, 720 H Neutral Salt Spray (Ultrasonic Welding) | 50mm² |
| HPLB28*-300-70-B-C | Right Angle Plug without HVIL, Key*, 720 H Neutral Salt Spray (Ultrasonic Welding) | 70mm² |
| HPLB28*-301-35N-A | Right Angle Plug with HVIL, Key*, for Unshielded Wire, 96 H Neutral Salt Spray |
35mm² Unshielded Wire |
| HPLB28*-301-50N-A | Right Angle Plug with HVIL, Key*, for Unshielded Wire, 96 H Neutral Salt Spray | 50mm² Unshielded Wire |
| HPLB28*-301-70N-A | Right Angle Plug with HVIL, Key*, for Unshielded Wire, 96 H Neutral Salt Spray | 70mm² Unshielded Wire |
| HPLB28*-301-35N-B | Right Angle Plug with HVIL, Key*, for Unshielded Wire, 720 H Neutral Salt Spray | 35mm² Unshielded Wire |
| HPLB28*-301-50N-B | Right Angle Plug with HVIL, Key*, for Unshielded Wire, 720 H Neutral Salt Spray | 50mm² Unshielded Wire |
| HPLB28*-301-70N-B | Right Angle Plug with HVIL, Key*, for Unshielded Wire, 720 H Neutral Salt Spray | 70mm² Unshielded Wire |
| HPLB28*-301-35N-A-C | Right Angle Plug with HVIL, Key*, for Unshielded Wire, 96 H Neutral Salt Spray (Ultrasonic Welding) |
35mm² Unshielded Wire |
| HPLB28*-301-50N-A-C | Right Angle Plug with HVIL, Key*, for Unshielded Wire, 96 H Neutral Salt Spray (Ultrasonic Welding) | 50mm² Unshielded Wire |
| HPLB28*-301-70N-A-C | Right Angle Plug with HVIL, Key*, for Unshielded Wire, 96 H Neutral Salt Spray (Ultrasonic Welding) | 70mm² Unshielded Wire |
| HPLB28*-301-35N-B-C | Right Angle Plug with HVIL, Key*, for Unshielded Wire, 720 H Neutral Salt Spray (Ultrasonic Welding) | 35mm² Unshielded Wire |
| HPLB28*-301-50N-B-C | Right Angle Plug with HVIL, Key*, for Unshielded Wire, 720 H Neutral Salt Spray (Ultrasonic Welding) | 50mm² Unshielded Wire |
| HPLB28*-301-70N-B-C | Right Angle Plug with HVIL, Key*, for Unshielded Wire, 720 H Neutral Salt Spray (Ultrasonic Welding) | 70mm² Unshielded Wire |
| HPLB28*-300-35N-A | Right Angle Plug without HVIL, Key*, for Unshielded Wire, 96 H Neutral Salt Spray |
35mm² Unshielded Wire |
| HPLB28*-300-50N-A | Right Angle Plug without HVIL, Key*, for Unshielded Wire, 96 H Neutral Salt Spray | 50mm² Unshielded Wire |
| HPLB28*-300-70N-A | Right Angle Plug without HVIL, Key*, for Unshielded Wire, 96 H Neutral Salt Spray | 70mm² Unshielded Wire |
| HPLB28*-300-35N-B | Right Angle Plug without HVIL, Key*, for Unshielded Wire, 720 H Neutral Salt Spray | 35mm² Unshielded Wire |
| HPLB28*-300-50N-B | Right Angle Plug without HVIL, Key*, for Unshielded Wire, 720 H Neutral Salt Spray | 50mm² Unshielded Wire |
| HPLB28*-300-70N-B | Right Angle Plug without HVIL, Key*, for Unshielded Wire, 720 H Neutral Salt Spray | 70mm² Unshielded Wire |
| HPLB28*-300-35N-A-C | Right Angle Plug without HVIL, Key*, for Unshielded Wire, 96 H Neutral Salt Spray (Ultrasonic Welding) |
35mm² Unshielded Wire |
| HPLB28*-300-50N-A-C | Right Angle Plug without HVIL, Key*, for Unshielded Wire, 96 H Neutral Salt Spray (Ultrasonic Welding) | 50mm² Unshielded Wire |
| HPLB28*-300-70N-A-C | Right Angle Plug without HVIL, Key*, for Unshielded Wire, 96 H Neutral Salt Spray (Ultrasonic Welding) | 70mm² Unshielded Wire |
| HPLB28*-300-35N-B-C | Right Angle Plug without HVIL, Key*, for Unshielded Wire, 720 H Neutral Salt Spray (Ultrasonic Welding) | 35mm² Unshielded Wire |
| HPLB28*-300-50N-B-C | Right Angle Plug without HVIL, Key*, for Unshielded Wire, 720 H Neutral Salt Spray (Ultrasonic Welding) | 50mm² Unshielded Wire |
| HPLB28*-300-70N-B-C | Right Angle Plug without HVIL, Key*, for Unshielded Wire, 720 H Neutral Salt Spray (Ultrasonic Welding) | 70mm² Unshielded Wire |
Receptacle Type
| No. | Ordering P/N | Description | Tail's Hole Size |
| 1 | HPLB00*-301-M8-A | Key* with High Voltage Interlock M8 Threaded Hole Receptacle Neutral Salt Spray 96 H |
M8 (10〜12N·m) |
| 2 | HPLB00*-301-D10-A | Key* with High Voltage Interlock D10 Threaded Hole Receptacle Neutral Salt Spray 96 H | ø10 |
| 3 | HPLB00*-301-D8-A | Key* with High Voltage Interlock D8 Threaded Hole Receptacle Neutral Salt Spray 96 H |
ø8 |
| 4 | HPLB00*-301-D6-A | Key* with High Voltage Interlock D6 Threaded Hole Receptacle Neutral Salt Spray 96 H | ø6.5 |
| 5 | HPLB00*-301-M8-B | Key* with High Voltage Interlock M8 Threaded Hole Receptacle Neutral Salt Spray 720 H |
M8 (10〜12N·m) |
| 6 | HPLB00*-301-D10-B | Key* with High Voltage Interlock D10 Threaded Hole Receptacle Neutral Salt Spray 720 H | ø10 |
| 7 | HPLB00*-301-D8-B | Key* with High Voltage Interlock D8 Threaded Hole Receptacle Neutral Salt Spray 720 H |
ø8 |
| 8 | HPLB00*-301-D6-B | Key* with High Voltage Interlock D6 Threaded Hole Receptacle Neutral Salt Spray 720 H | ø6.5 |
| 9 | HPLB00*-300-M8-A | Key* without High Voltage Interlock M8 Threaded Hole Receptacle Neutral Salt Spray 96 H |
M8 (10〜12N·m) |
| 10 | HPLB00*-300-D10-A | Key* without High Voltage Interlock D10 Threaded Hole Receptacle Neutral Salt Spray 96 H | ø10 |
| 11 | HPLB00*-300-D8-A | Key* without High Voltage Interlock D8 Threaded Hole Receptacle Neutral Salt Spray 96 H |
ø8 |
| 12 | HPLB00*-300-D6-A | Key* without High Voltage Interlock D6 Threaded Hole Receptacle Neutral Salt Spray 96 H | ø6.5 |
| 13 | HPLB00*-300-M8-B | Key* without High Voltage Interlock M8 Threaded Hole Receptacle Neutral Salt Spray 720 H |
M8 (10〜12N·m) |
| 14 | HPLB00*-300-D10-B | Key* without High Voltage Interlock D10 Threaded Hole Receptacle Neutral Salt Spray 720 H | ø10 |
| 15 | HPLB00*-300-D8-B | Key* without High Voltage Interlock D8 Threaded Hole Receptacle Neutral Salt Spray 720 H |
ø8 |
| 16 | HPLB00*-300-D6-B | Key* without High Voltage Interlock D6 Threaded Hole Receptacle Neutral Salt Spray 720 H | ø6.5 |
Remark: *represents key, X, Y, W key optional, one key one color, X-Orange, Y-Black, W-Red.
External Dimension:

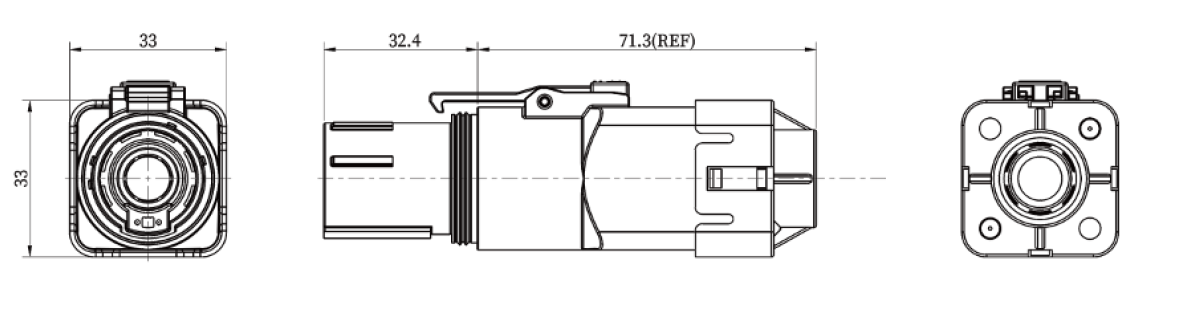

Straight Plug Outside Drawing

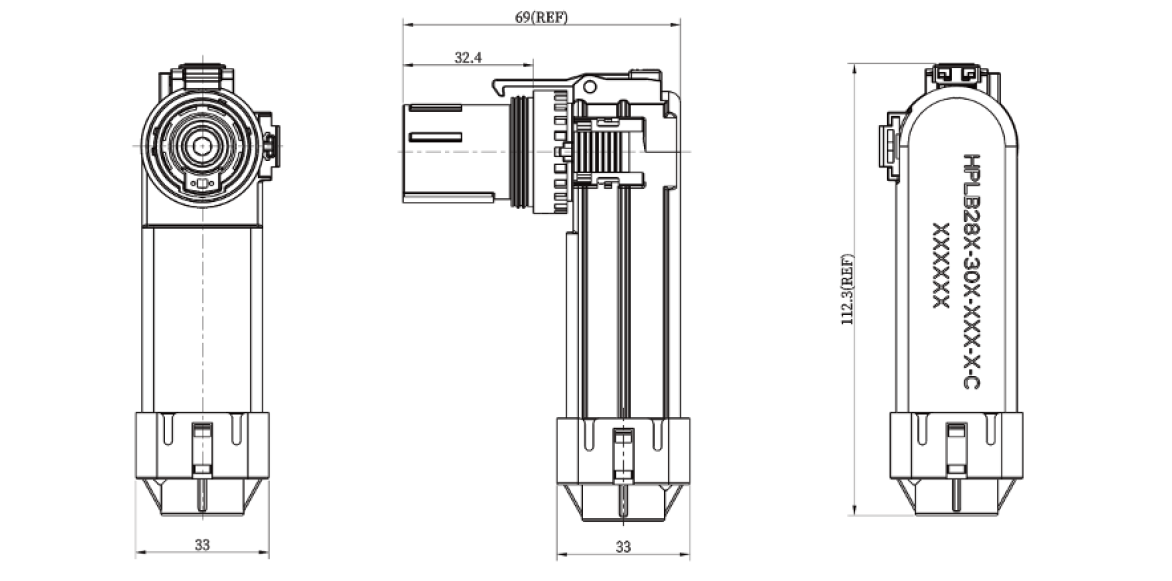

Right Angle Plug Outside Drawing
Remarks: The elbow angle connector features an integrated M2.5 threaded hole on its locking device, compatible with a M2.5 locking screw to enable secondary
locking as an added safety measure. The M2.5 locking screw is an optional accessory and is supplied separately (unassembled) by default.

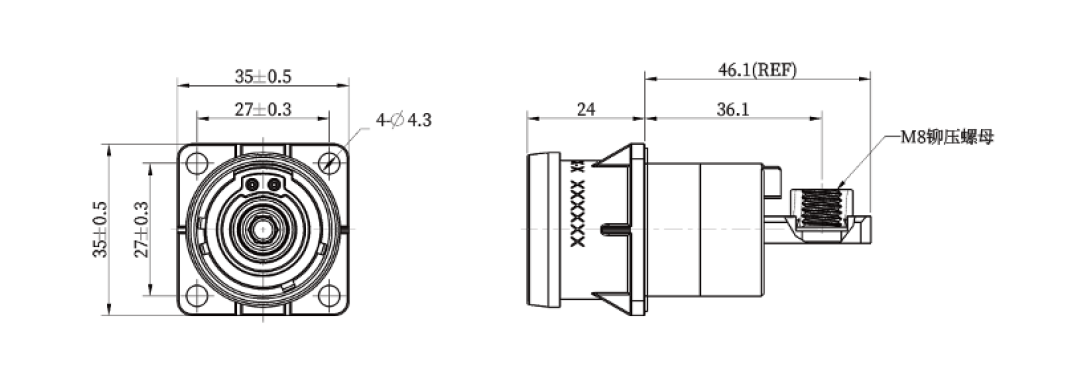

Receptacle Outside Drawing

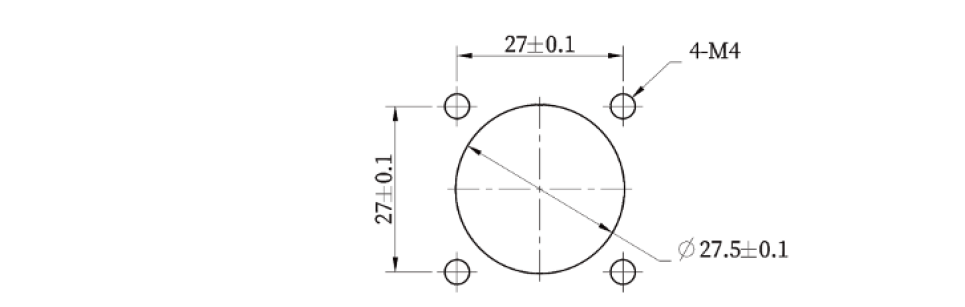

Dimension of Installation Panel
Note:
It is recommended that the panel thickness be>1.5mm, surface roughness Ra<1.6μm, and flatness<0.3mm. The recommended torque value for panel mounting
screws is 1.6‒2.5N·m.
