HPLB300 Metal High Voltage Connector

This series of connectors is designed for high-current transmission in the electric vehicle (EV) and hybrid power markets. They support crimping for 35 to 70 mm² cables with a rated current range of 150A to 250A. These connectors are primarily used for auxiliary equipment in EV and HEV applications, including high-voltage distribution boxes, on-board chargers, battery packs, motors, and electronic controllers.

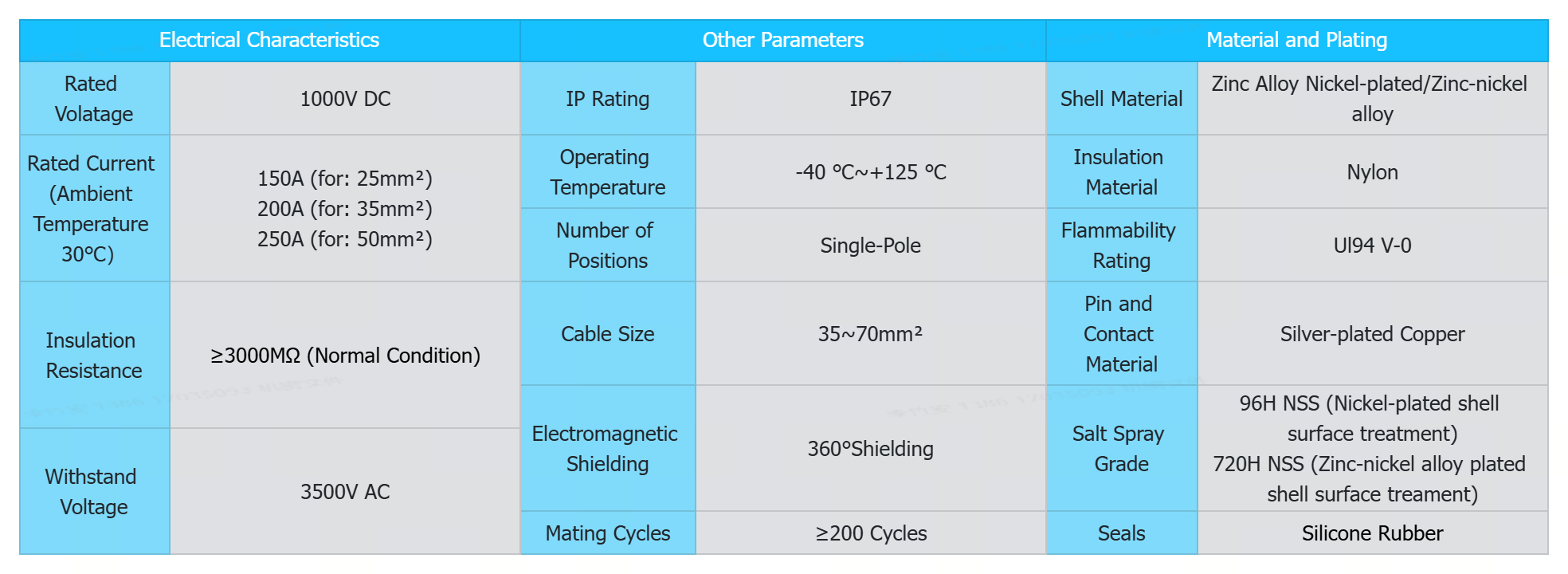

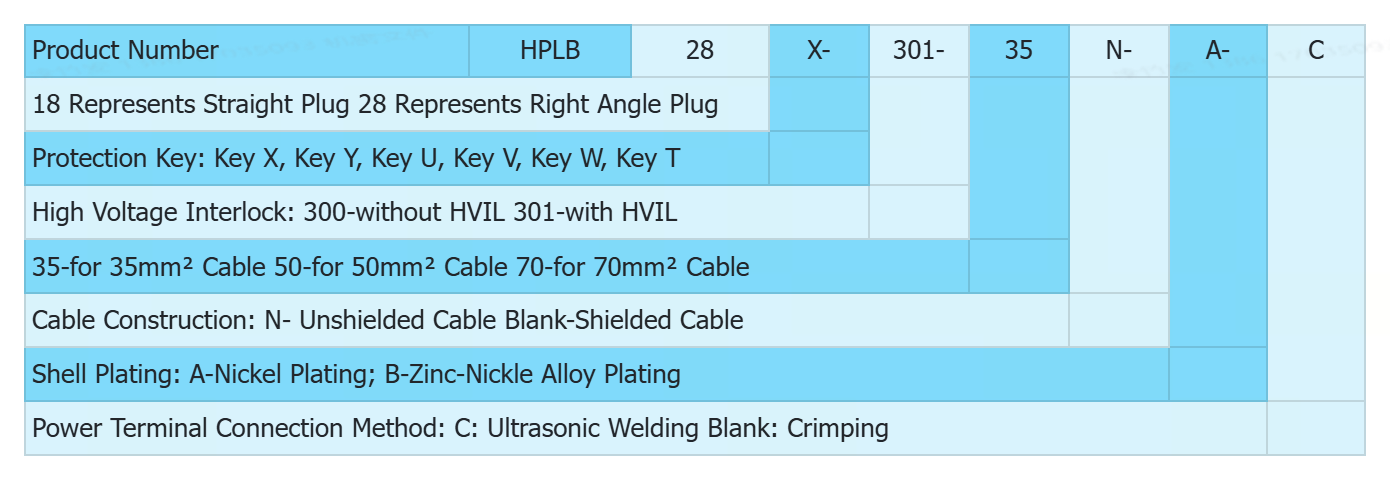

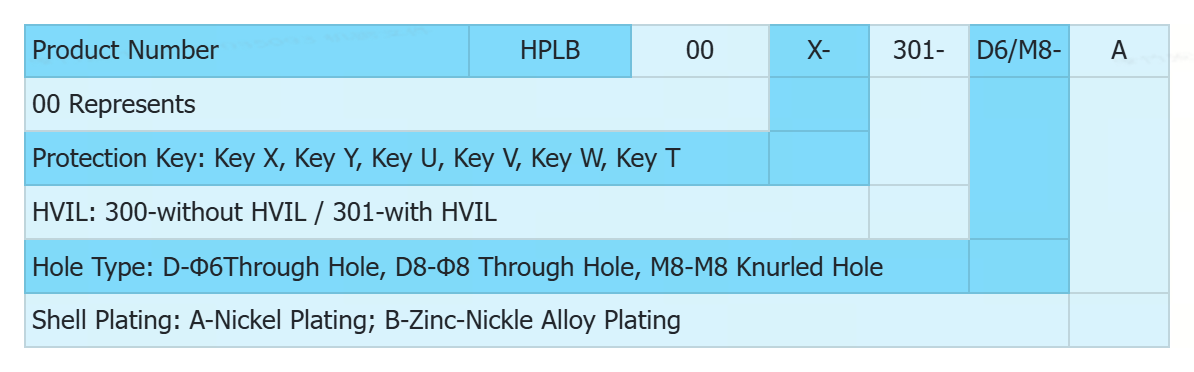

Model Description:

Remark:

1. Only plugs and sockets with identical product series, shell number, contact count, and keying position are intermateable. Example: HPLB18X-301-50-A and HPLB00X-301-D6-A.

2. This product is suitable for three cable specifications: 35 mm², 50mm² , and 70mm². The conductor cross-sectional area shall meet the nominal cross-section requirements.

3. The cables referred to in the following text are GB/T cross-linked polyolefin cables. Tinned copper Cable is recommended. If other cable specifications (e.g., silicone rubber cables) are to be used for crimping operations, please confirm and validate with our technical department.

✉ Inquire Now

Product List:

Straight Plug Ordering Information

Ordering P/N	Description	Applicable Cable Size
HPLB18*-30#-35-A	Straight Key*, 96H NSS	35mm²
HPLB18*-30#-50-A	Straight Key*, 96H NSS	50mm²
HPLB18*-30#-70-A	Straight Key*, 96H NSS	70mm²
HPLB18*-30#-35N-A	Straight Key*, for Unsheilded Cable, 96H NSS	35mm² Unsheilded Cable
HPLB18*-30#-50N-A	Straight Key*, for Unsheilded Cable, 96H NSS	50mm² Unsheilded Cable
HPLB18*-30#-70N-A	Straight Key*, for Unsheilded Cable, 96H NSS	70mm² Unsheilded Cable
HPLB18*-30#-35-B	Straight Key*, 720H NSS	35mm²
HPLB18*-30#-50-B	Straight Key*, 720H NSS	50mm²
HPLB18*-30#-70-B	Straight Key*, 720H NSS	70mm²
HPLB18*-30#-35N-B	Straight Key*, for Unsheilded Cable, 720H NSS	35mm² Unsheilded Cable
HPLB18*-30#-50N-B	Straight Key*, for Unsheilded Cable, 720H NSS	50mm² Unsheilded Cable
HPLB18*-30#-70N-B	Straight Key*, for Unsheilded Cable, 720H NSS	70mm² Unsheilded Cable

Remark: *represents key, X, Y, W key optional, Each key corresponds to a unique color: X-Orange, Y-Black, U-Yellow, V-Green, W-Red, T-Blue; "#"set to 0 indicates without HVIL; "#" set to 1 indicates with HVIL.

Right Angle Plug Ordering Information

Ordering P/N	Description	Applicable Cable Size
HPLB28*-30#-35-A	Right Angle Key*, 96H NSS	35mm²
HPLB28*-30#-50-A	Right Angle Key*, 96H NSS	50mm²
HPLB28*-30#-70-A	Right Angle Key*, 96H NSS	70mm²
HPLB28*-30#-35N-A	Right Angle Key*, for Unsheilded Cable, 96H NSS	35mm² Unsheilded Cable
HPLB28*-30#-50N-A	Right Angle Key*, for Unsheilded Cable, 96H NSS	50mm² Unsheilded Cable
HPLB28*-30#-70N-A	Right Angle Key*, for Unsheilded Cable, 96H NSS	70mm² Unsheilded Cable
HPLB28*-30#-35-B	Right Angle Key*, 720H NSS	35mm²
HPLB28*-30#-50-B	Right Angle Key*, 720H NSS	50mm²
HPLB28*-30#-70-B	Right Angle Key*, 720H NSS	70mm²
HPLB28*-30#-35N-B	Right Angle Key*, for Unsheilded Cable, 720H NSS	35mm² Unsheilded Cable
HPLB28*-30#-50N-B	Right Angle Key*, for Unsheilded Cable, 720H NSS	50mm² Unsheilded Cable
HPLB28*-30#-70N-B	Right Angle Key*, for Unsheilded Cable, 720H NSS	70mm² Unsheilded Cable
HPLB28*-30#-35-A-C	Right Angle Key*, Ultrasonic Welding, 96H NSS	35mm²
HPLB28*-30#-50-A-C	Right Angle Key*, Ultrasonic Welding, 96H NSS	50mm²
HPLB28*-30#-70-A-C	Right Angle Key*, Ultrasonic Welding, 96H NSS	70mm²
HPLB28*-30#-35N-A-C	Right Angle Key*, Ultrasonic Welding, for Unsheilded Cable, 96H NSS	35mm² Unsheilded Cable
HPLB28*-30#-50N-A-C	Right Angle Key*, Ultrasonic Welding, for Unsheilded Cable, 96H NSS	50mm² Unsheilded Cable
HPLB28*-30#-70N-A-C	Right Angle Key*, Ultrasonic Welding, for Unsheilded Cable, 96H NSS	70mm² Unsheilded Cable
HPLB28*-30#-35-B-C	Right Angle Key*, Ultrasonic Welding, 720H NSS	35mm²
HPLB28*-30#-50-B-C	Right Angle Key*, Ultrasonic Welding, 720H NSS	50mm²
HPLB28*-30#-70-B-C	Right Angle Key*, Ultrasonic Welding, 720H NSS	70mm²
HPLB28*-30#-35N-B-C	Right Angle Key*, Ultrasonic Welding, for Unsheilded Cable, 720H NSS	35mm² Unsheilded Cable
HPLB28*-30#-50N-B-C	Right Angle Key*, Ultrasonic Welding, for Unsheilded Cable, 720H NSS	50mm² Unsheilded Cable
HPLB28*-30#-70N-B-C	Right Angle Key*, Ultrasonic Welding, for Unsheilded Cable, 720H NSS	70mm² Unsheilded Cable

Receptacle Ordering Information

No.	Ordering P/N	Description	Tail Hole Size
1	HPLB00*-30#-M8-A	Key*, M8 Threaded Hole, Receptacle, 96H NSS	M8 (10〜12N·m)
2	HPLB00*-30#-D10-A	Key*, D10 Threaded Hole, Receptacle, 96H NSS	ø10
3	HPLB00*-30#-D8-A	Key*, D8 Threaded Hole, Receptacle, 96H NSS	ø8
4	HPLB00*-30#-D6-A	Key*, D6 Threaded Hole, Receptacle, 96H NSS	ø6.5
5	HPLB00*-30#-M8-B	Key*, M8 Threaded Hole, Receptacle, 720H NSS	M8 (10〜12N·m)
6	HPLB00*-30#-D10-B	Key*, D10 Threaded Hole, Receptacle, 720H NSS	ø10
7	HPLB00*-30#-D8-B	Key*, D8 Threaded Hole, Receptacle, 720H NSS	ø8
8	HPLB00*-30#-D6-B	Key*, D6 Threaded Hole, Receptacle, 720H NSS	ø6.5
9	HPLB00*-30#-M10-A-E	Key*, M10 Threaded Hole, Receptacle, 96H NSS, Extended Terminal	M10 (12〜15N·m)
10	HPLB00*-30#-M8-A-E	Key*, M8 Threaded Hole, Receptacle, 96H NSS, Extended Terminal	M8 (10〜12N·m)
11	HPLB00*-30#-D10-A-E	Key*, D10 Threaded Hole, Receptacle, 96H NSS, Extended Terminal	ø10
12	HPLB00*-30#-D8-A-E	Key*, D8 Threaded Hole, Receptacle, 96H NSS, Extended Terminal	ø8
13	HPLB00*-30#-D6-A-E	Key*, D6 Threaded Hole, Receptacle, 96H NSS, Extended Terminal	ø6.5
14	HPLB00*-30#-M10-B-E	Key*, M10 Threaded Hole, Receptacle, 720H NSS, Extended Terminal	M10 (12〜15N·m)
15	HPLB00*-30#-M8-B-E	Key*, M8 Threaded Hole, Receptacle, 720H NSS, Extended Terminal	M8 (10〜12N·m)
16	HPLB00*-30#-D10-B-E	Key*, D10 Threaded Hole, Receptacle, 720H NSS, Extended Terminal	ø10
17	HPLB00*-30#-D8-B-E	Key*, D8 Threaded Hole, Receptacle, 720H NSS, Extended Terminal	ø8
18	HPLB00*-30#-D6-B-E	Key*, D6 Threaded Hole, Receptacle, 720H NSS, Extended Terminal	ø6.5

Outline Dimensions:

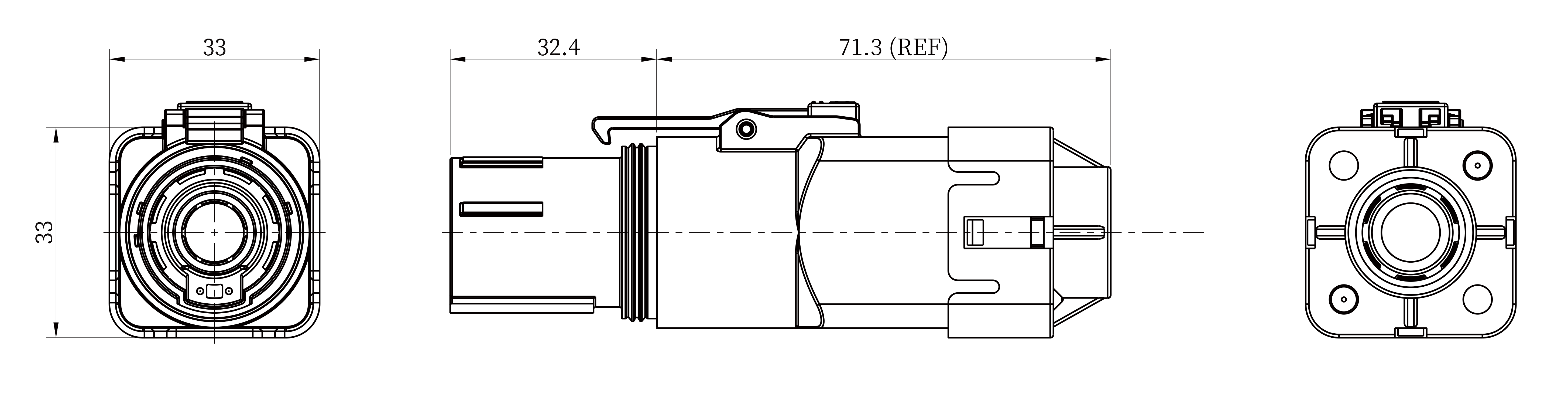

Straight Plug Outline Drawing

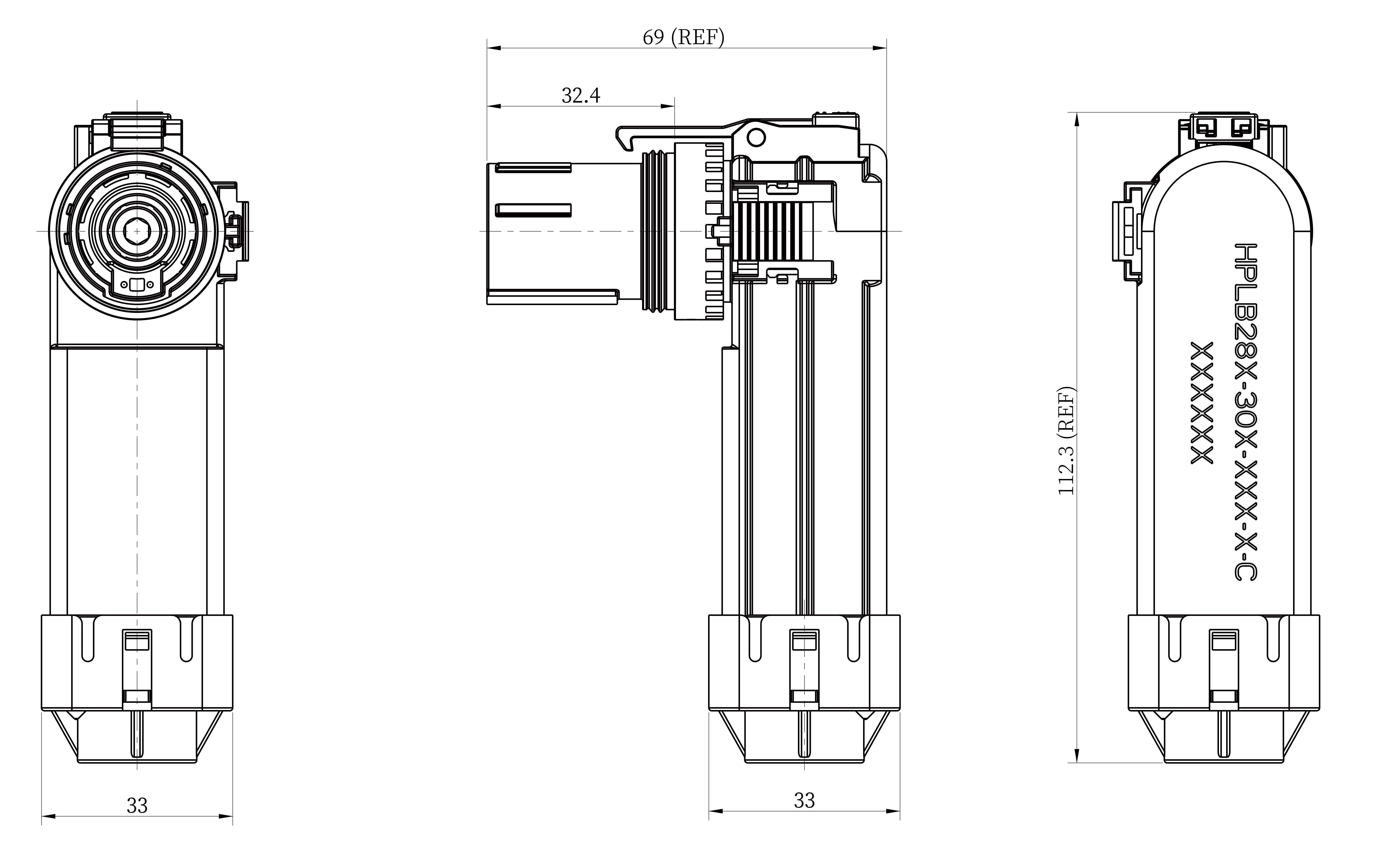

Right Angle Plug Outline Drawing

Remarks: The elbow angle connector features an integrated M2.5 threaded hole on its locking device, compatible with a M2.5 locking screw to enable secondary
locking as an added safety measure. The M2.5 locking screw is an optional accessory and is supplied separately (unassembled) by default.

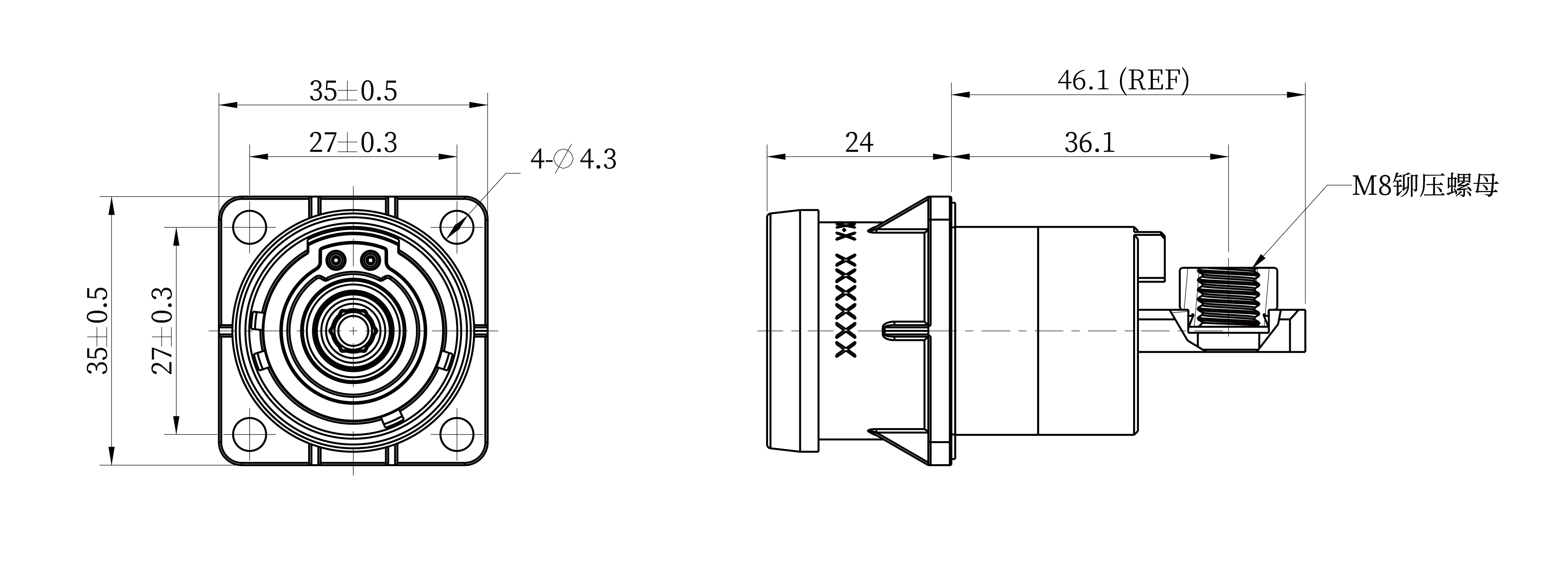

Receptacle Outline Drawing

Recommended Panel Cutout

Note:
It is recommended that the panel thickness be>1.5mm, surface roughness Ra<1.6μm, and flatness<0.3mm. The recommended torque value for panel mounting
screws is 1.6‒2.5N·m.
