HPL200 Series Single-Pole 200A with High Voltage Interlock Connector

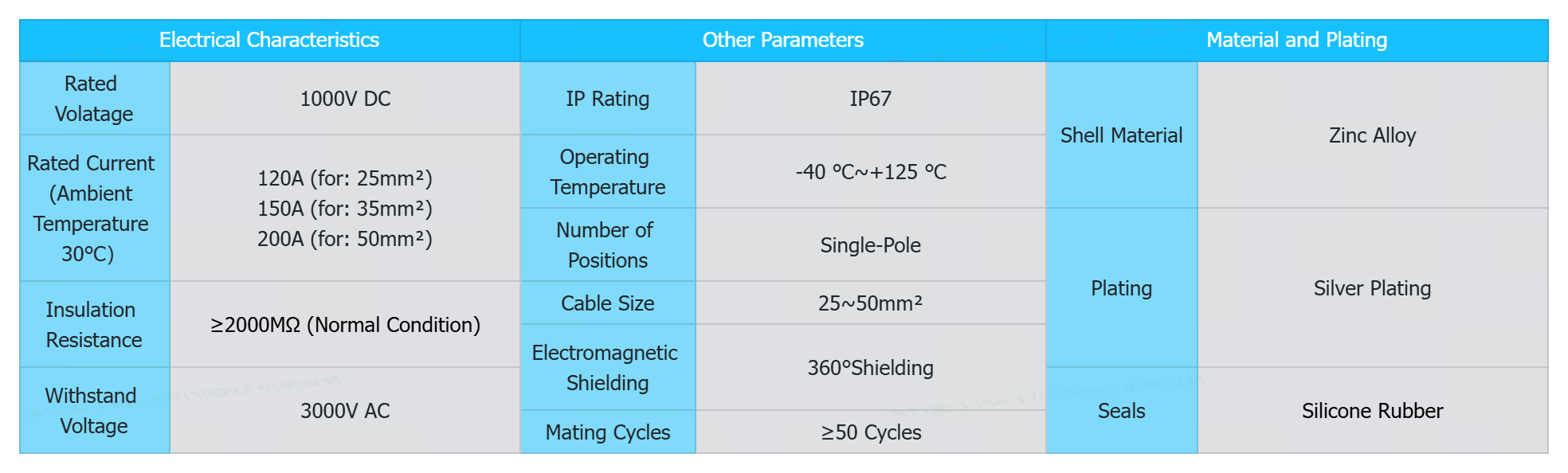

Product Characteristic:
Related Products
Product List:

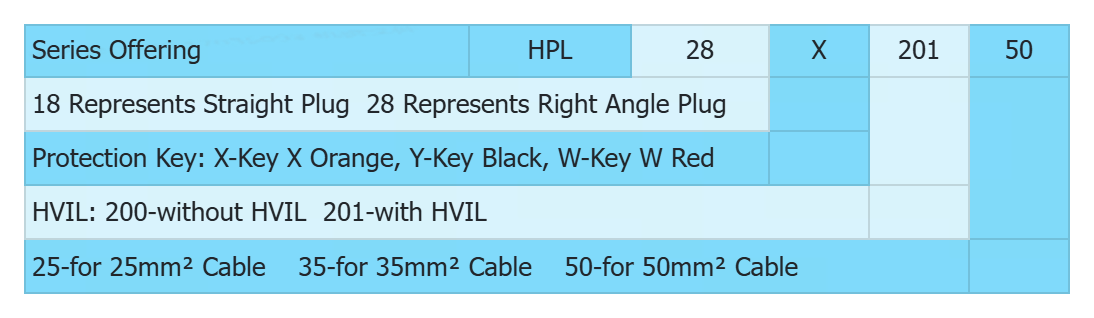

Plug Ordering Information
| No. | Ordering P/N | Description | Applicable Cable Size |
| 1 | HPL18*-200-25 | Straight Plug Key*Without High Voltage Interlock Plug-25mm² |
25mm² Shielded Cable |
| 2 | HPL18*-200-35 | Straight Plug Key*Without High Voltage Interlock Plug-35mm² | 35mm² Shielded Cable |
| 3 | HPL18*-200-50 | Straight Plug Key*Without High Voltage Interlock Plug-50mm² | 50mm² Shielded Cable |
| 4 | HPL18*-201-25 | Straight Plug Key*With High Voltage Interlock Plug-25mm² | 25mm² Shielded Cable |
| 5 | HPL18*-201-35 | Straight Plug Key*With High Voltage Interlock Plug-35mm² | 35mm² Shielded Cable |
| 6 | HPL18*-201-50 | Straight Plug Key*With High Voltage Interlock Plug-50mm² | 50mm² Shielded Cable |
| 7 | HPL28*-200-25 | Right Angle Plug Key*without High Voltage Interlock Plug-25mm² |
25mm² Shielded Cable |
| 8 | HPL28*-200-35 | Right Angle Plug Key*without High Voltage Interlock Plug-35mm² | 35mm² Shielded Cable |
| 9 | HPL28*-200-50 | Right Angle Plug Key*without High Voltage Interlock Plug-50mm² | 50mm² Shielded Cable |
| 10 | HPL28*-201-25 | Right Angle Plug Key*with High Voltage Interlock Plug-25mm² | 25mm² Shielded Cable |
| 11 | HPL28*-201-35 | Right Angle Plug Key*with High Voltage Interlock Plug-35mm² | 35mm² Shielded Cable |
| 12 | HPL28*-201-50 | Right Angle Plug Key*with High Voltage Interlock Plug-50mm² | 50mm² Shielded Cable |
Remark: *represents key, X, Y, W key optional, Each key corresponds to a unique color, X-Orange, Y-Black, W-Red.

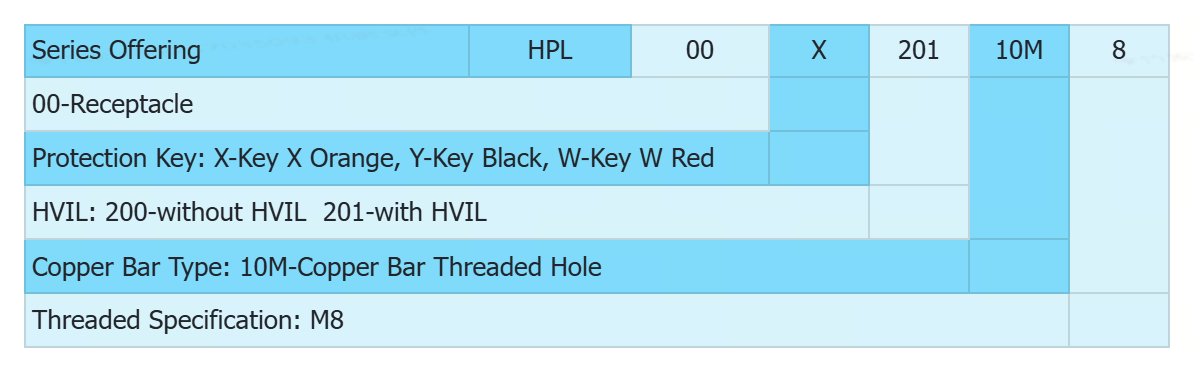

Receptacle Ordering Information
| No. | Ordering P/N | Description | Tail's Hole Size | Rated Current |
| 1 | HPL00*-200-10M8 | Key*without High Voltage Interlock, Copper Bar, M8 Threaded Hole Receptacle |
M8 |
200A |
| 2 | HPL00*-201-10M8 | Key*with High Voltage Interlock, Copper Bar, M8 Threaded Hole Receptacle | M8 | 200A |
Remark: *represents key, X, Y, W key optional, Each key corresponds to a unique color, X-Orange, Y-Black, W-Red.
Outline Dimensions:

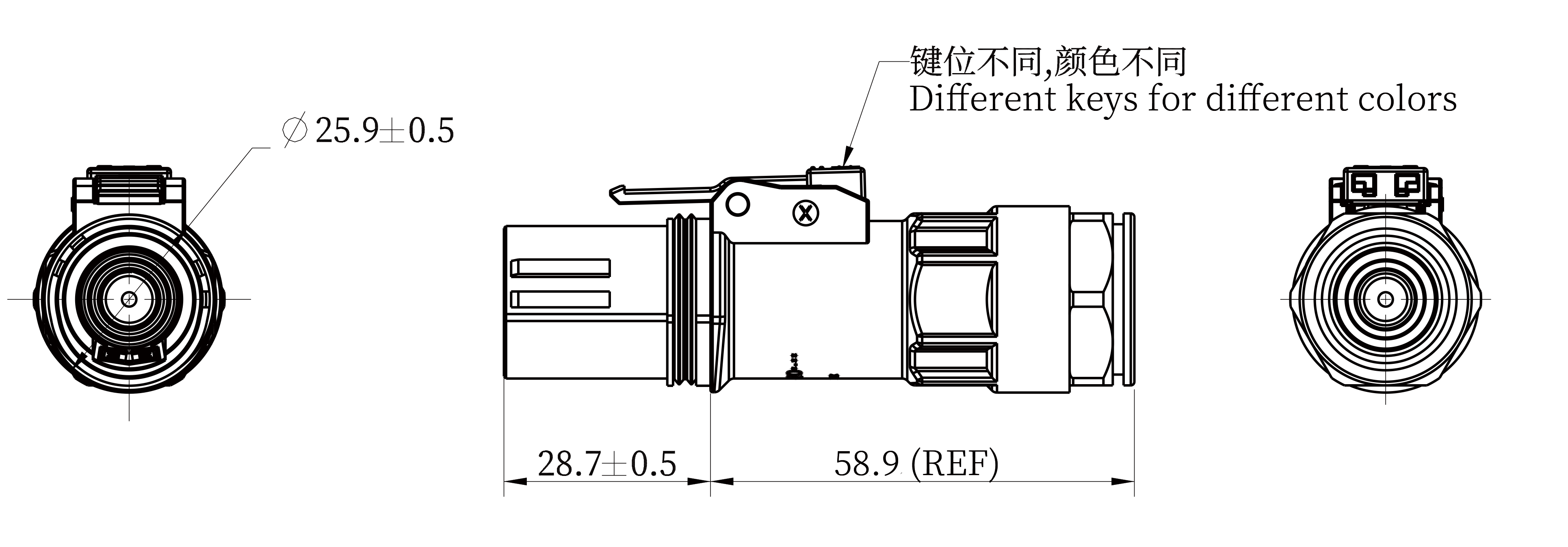

Straight Plug Outline Drawing

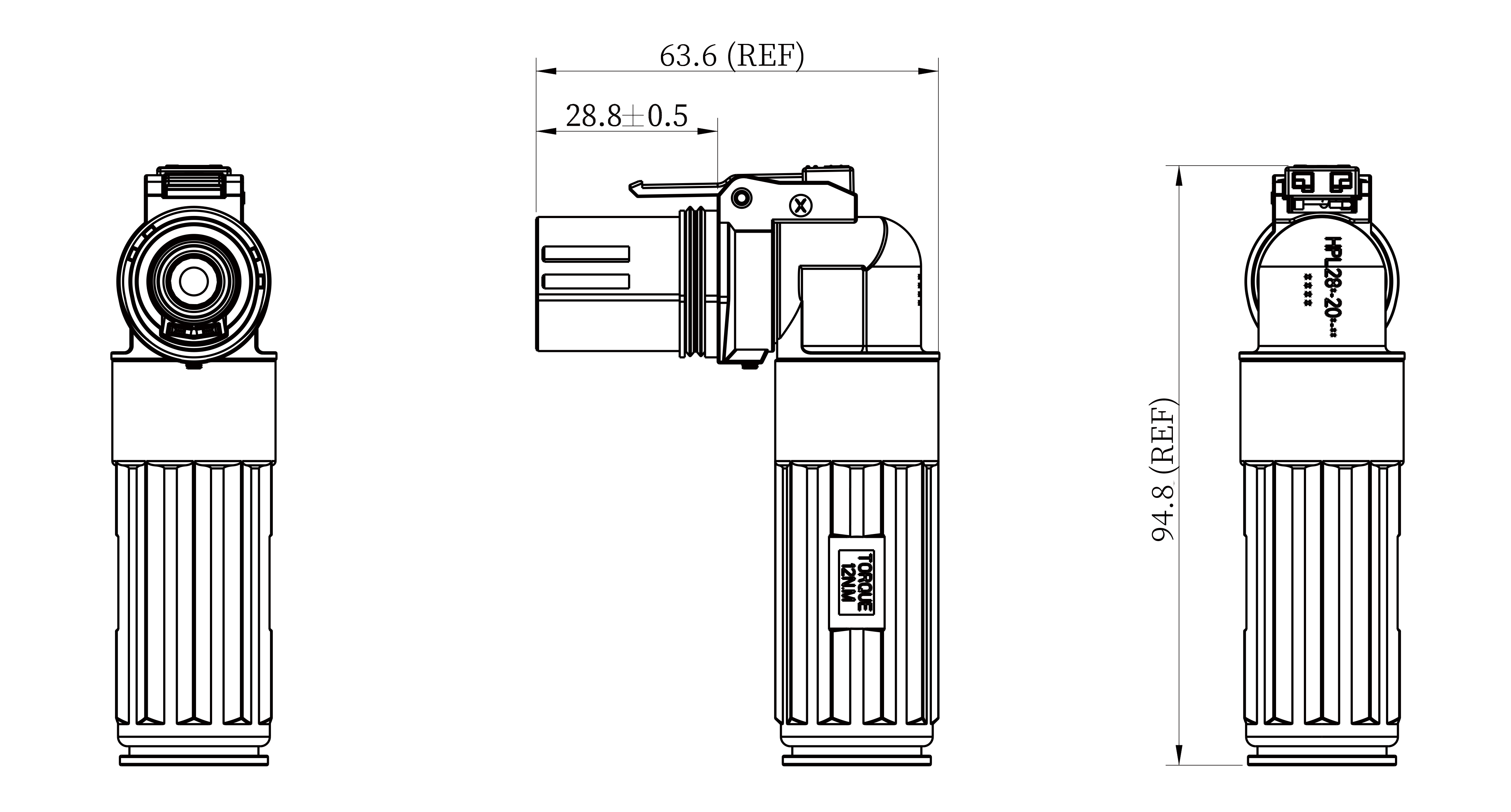

Right Angle Plug Outline Drawing

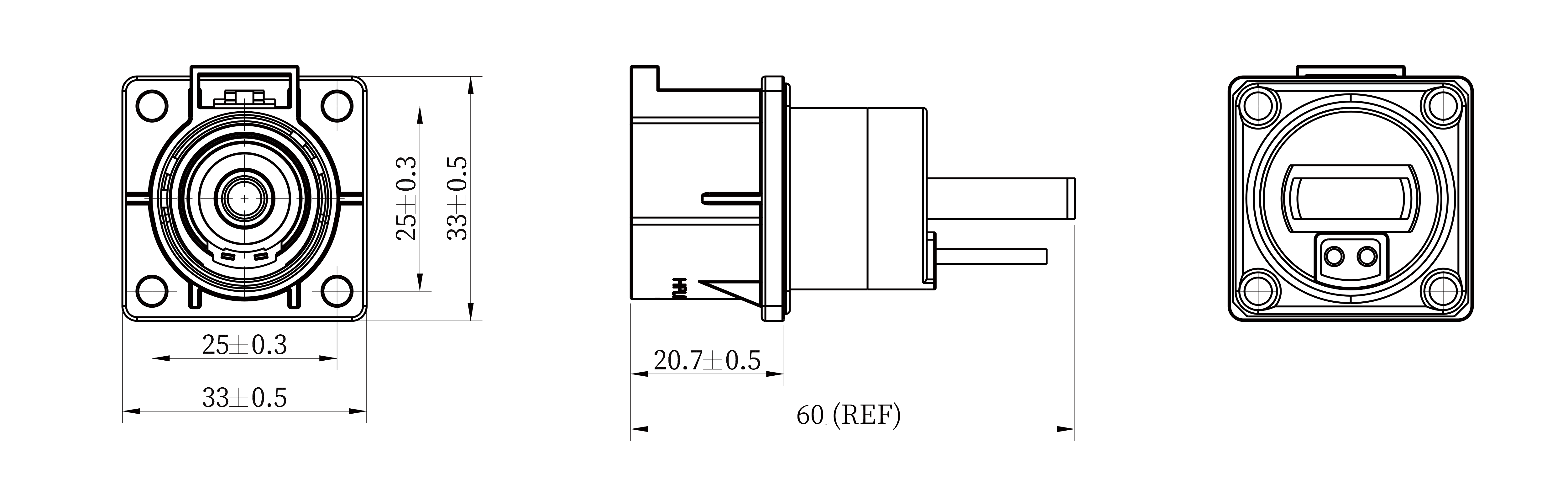

Receptacle Outline Drawing
Recommended Panel Cutout
