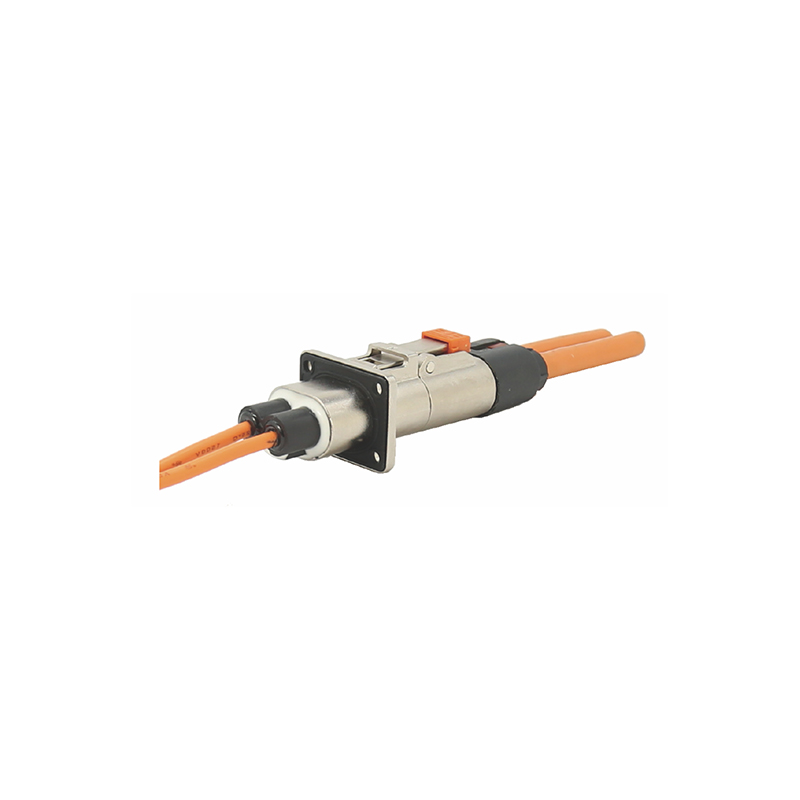

HPL36 Series High Voltage Interlock Connector
HPL36 series connector is specially designed for small and medium current of now energy vehicle. It mainly applies to PDU, Air conditioner, DC/DC, oil pump, air pump, defroster, AC inlet harness, etc.
Product Characteristic:
Related Products
Product List:

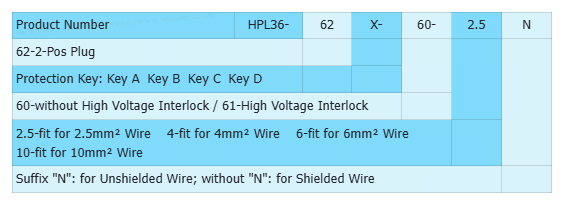

Plug Type
| No. | Ordering P/N | Description | Applicable Wire Size |
| 1 | HPL36-02*-60-2.5 | Key*Receptacle/Without High Voltage Interlock |
2.5mm² Shielded Wire |
| 2 | HPL36-02*-61-2.5 | Key*Recetacle/with High Voltage Interlock | 2.5mm² Shielded Wire |
| 3 | HPL36-02*-60-4 | Key*Receptacle/Without High Voltage Interlock | 4mm² Shielded Wire |
| 4 | HPL36-02*-61-4 | Key*Recetacle/with High Voltage Interlock | 4mm² Shielded Wire |
| 5 | HPL36-02*-60-6 | Key*Receptacle/Without High Voltage Interlock | 6mm² Shielded Wire |
| 6 | HPL36-02*-61-6 | Key*Recetacle/with High Voltage Interlock | 6mm² Shielded Wire |
| 7 | HPL36-02*-60-10 | Key*Receptacle/Without High Voltage Interlock | 10mm² Shielded Wire |
| 8 | HPL36-02*-61-10 | Key*Recetacle/with High Voltage Interlock | 10mm² Shielded Wire |
| 9 | HPL36-02*-60-2.5N | Key*Receptacle/Without High Voltage Interlock |
2.5mm² Unshielded Wire |
| 10 | HPL36-02*-61-2.5N | Key*Recetacle/with High Voltage Interlock | 2.5mm² Unshielded Wire |
| 11 | HPL36-02*-60-4N | Key*Receptacle/Without High Voltage Interlock | 4mm² Unshielded Wire |
| 12 | HPL36-02*-61-4N | Key*Recetacle/with High Voltage Interlock | 4mm² Unshielded Wire |
| 13 | HPL36-02*-60-6N | Key*Receptacle/Without High Voltage Interlock | 6mm² Unshielded Wire |
| 14 | HPL36-02*-61-6N | Key*Recetacle/with High Voltage Interlock | 6mm² Unshielded Wire |
| 15 | HPL36-02*-60-10N | Key*Receptacle/Without High Voltage Interlock | 10mm² Unshielded Wire |
| 16 | HPL36-02*-61-10N | Key*Recetacle/with High Voltage Interlock | 10mm² Unshielded Wire |
Remark: *represents key, X, Y, W key optional, one key one color, X-Orange, Y-Black, W-Red.

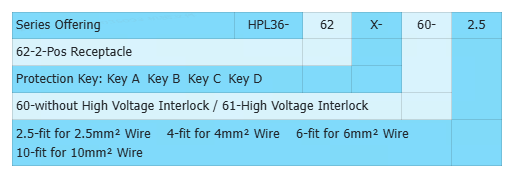

Receptacle Type
| No. | Ordering P/N | Description | Applicable Wire Size |
| 1 | HPL36-02*-60-2.5 | Key*Receptacle/Without High Voltage Interlock |
2.5mm² Unshielded Wire |
| 2 | HPL36-02*-61-2.5 | Key*Recetacle/with High Voltage Interlock | 2.5mm² Unshielded Wire |
| 3 | HPL36-02*-60-4 | Key*Receptacle/Without High Voltage Interlock | 4mm² Unshielded Wire |
| 4 | HPL36-02*-61-4 | Key*Recetacle/with High Voltage Interlock | 4mm² Unshielded Wire |
| 5 | HPL36-02*-60-6 | Key*Receptacle/Without High Voltage Interlock | 6mm² Unshielded Wire |
| 6 | HPL36-02*-61-6 | Key*Recetacle/with High Voltage Interlock | 6mm² Unshielded Wire |
| 7 | HPL36-02*-60-10 | Key*Receptacle/Without High Voltage Interlock | 10mm² Unshielded Wire |
| 8 | HPL36-02*-61-10 | Key*Recetacle/with High Voltage Interlock | 10mm² Unshielded Wire |
Remark: *represents key, X, Y, W key optional, one key one color, X-Orange, Y-Black, W-Red.
External Dimension:

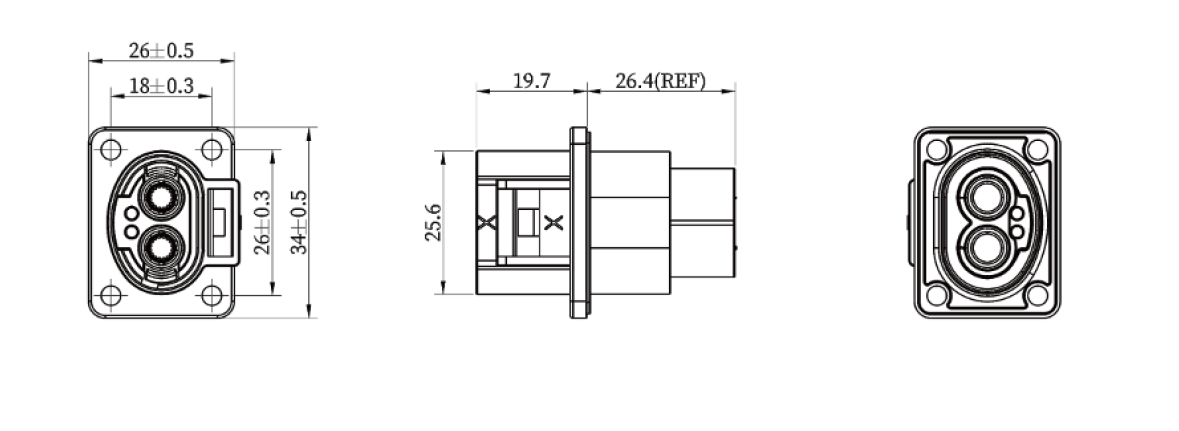

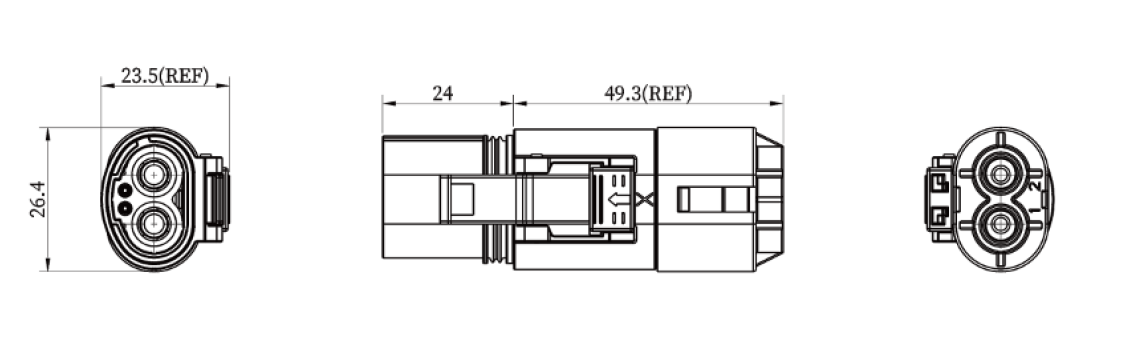

2-Position Plug Outside Drawing
2-Position Receptacle Outside Drawing

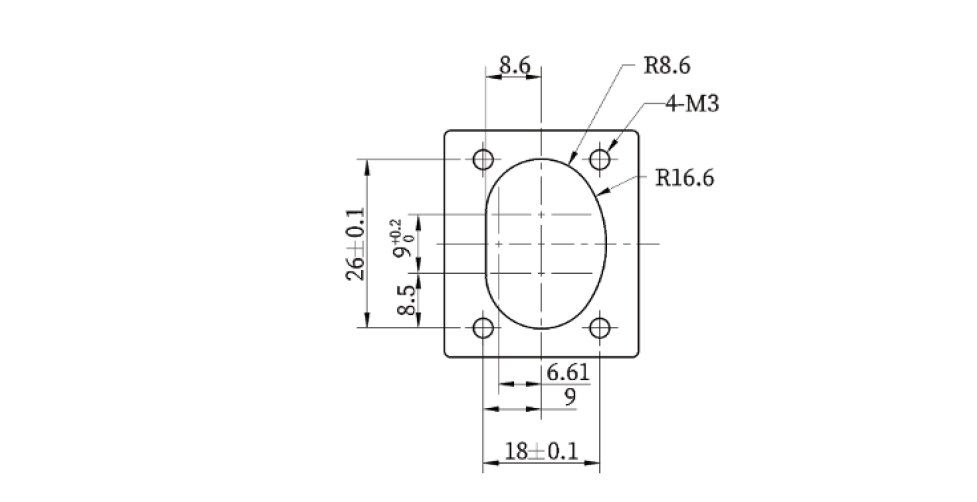

Recommended Trepanning Dimension for 2-Position Receptacle Installation
| Production Process | ||||
|
Injection workshop |
Mixing workshop |
Machining workshop |
Stranded cabling |
Heat shrink tube production |
|
Moulding workshop |
Rubber injection workshop |
Stamping workshop |
Irradiation workshop |
Embossing tube production |

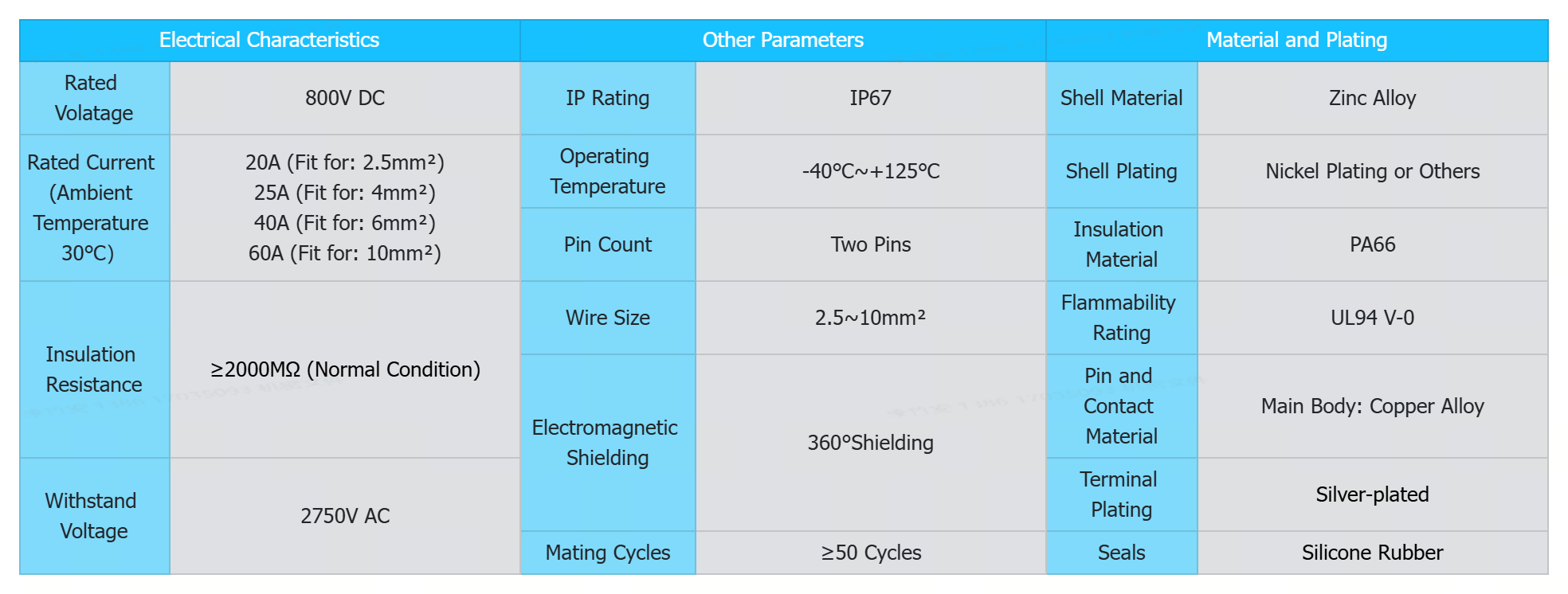

Performance Parameters
|
① Perfect quality management and process production. |
 |
|
|
② A professional team engaged in the production and research and development of this product for more than 12 years. |
|
③ A first-class and complete production workshop and equipment. |
 |
|
|
④ Comprehensive product testing equipment. We have the first authorized UL sighting laboratory in China. |
