CPT-A Series 180° Pass-through Connector

The CPT-A series is designed for EV traction motors, motor controllers, and integrated "all-in-one" systems. It is compatible with wire sizes from 25 to 70 mm², supporting a maximum current of 250A with 360° shielding and high-level protection.

Product Characteristics:
Easy assembly, reliable connection, and economical.

Model Description:
Share:

Related Products

The connectors of the series are design...

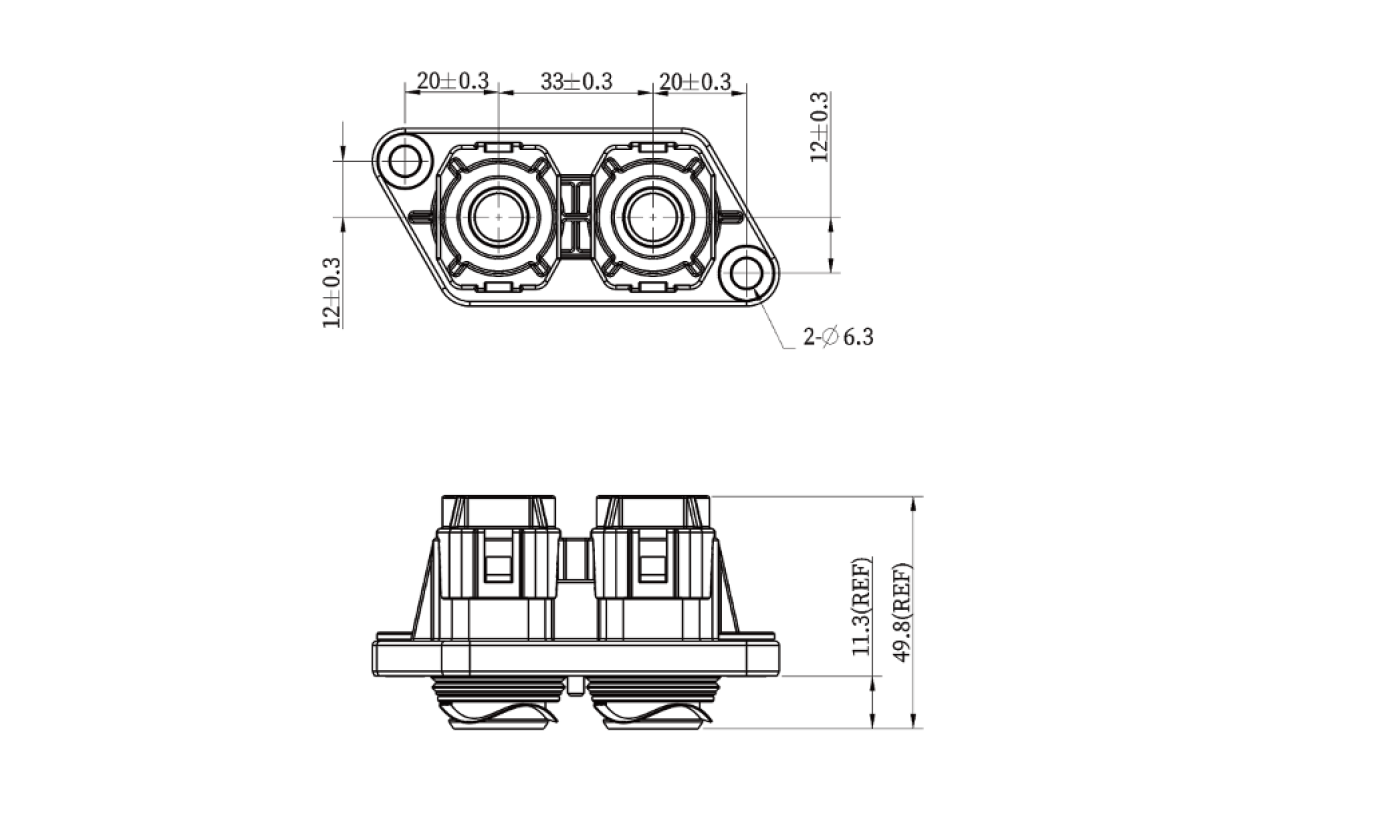

2-Pins Connector Outline Drawing

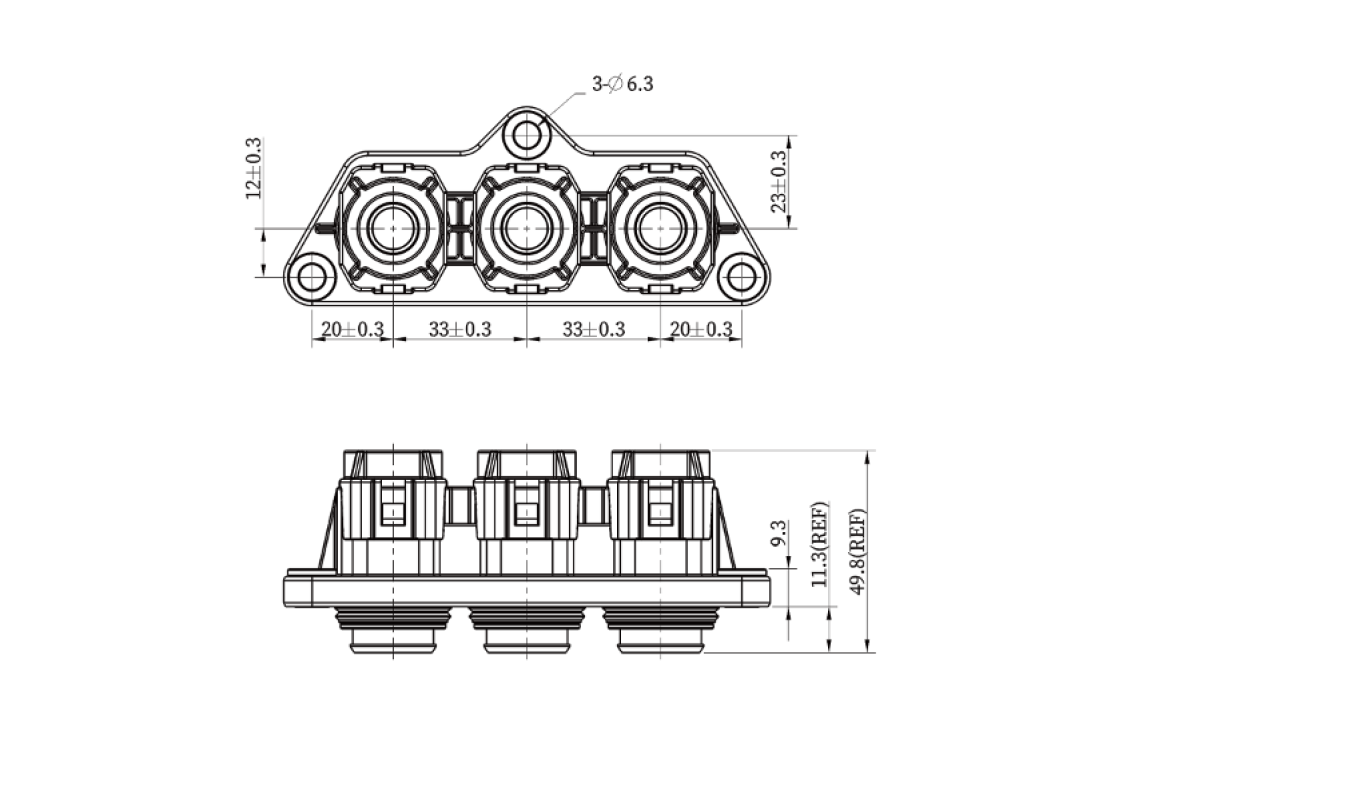

3-Pins Connector Outline Drawing

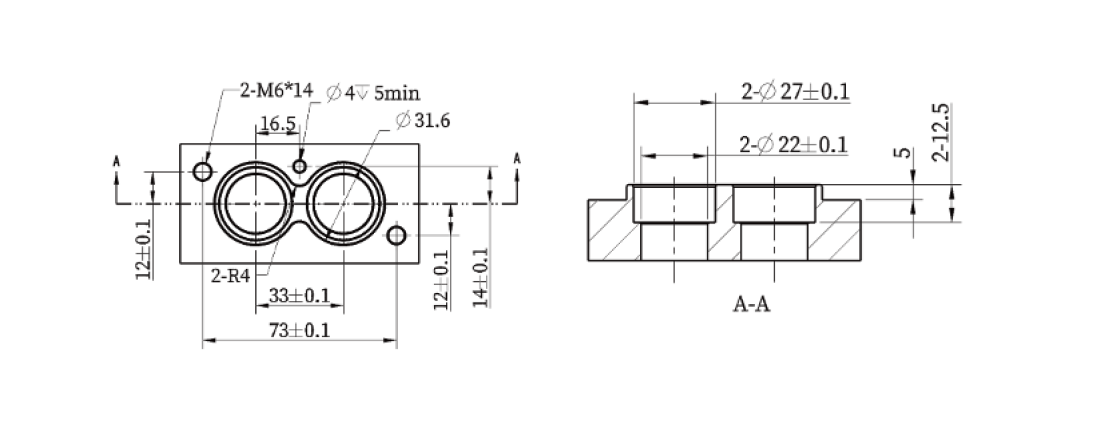

Recommended Hole Dimension for 2-pins Connector

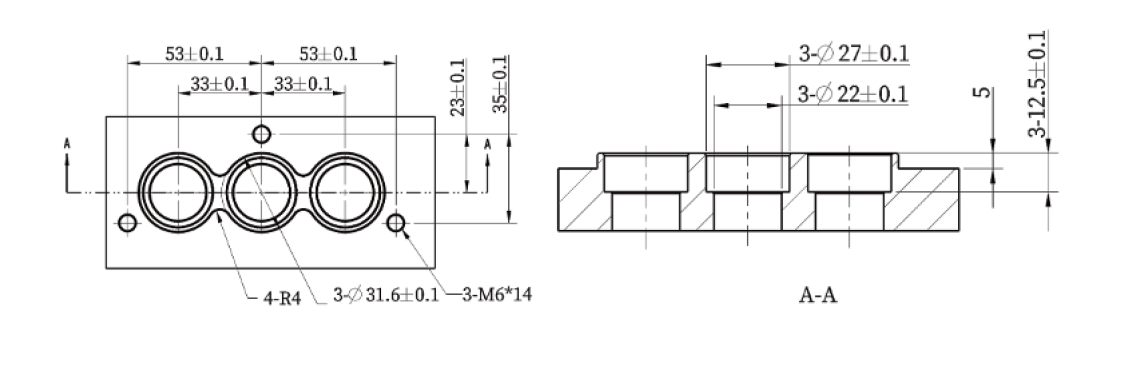

Recommended Hole Dimension for 3-Pins Connector









Production Process

Injection workshop

Mixing workshop

Machining workshop

Stranded cabling

Heat shrink tube production

Moulding workshop

Rubber injection workshop

Stamping workshop

Irradiation workshop

Embossing tube production

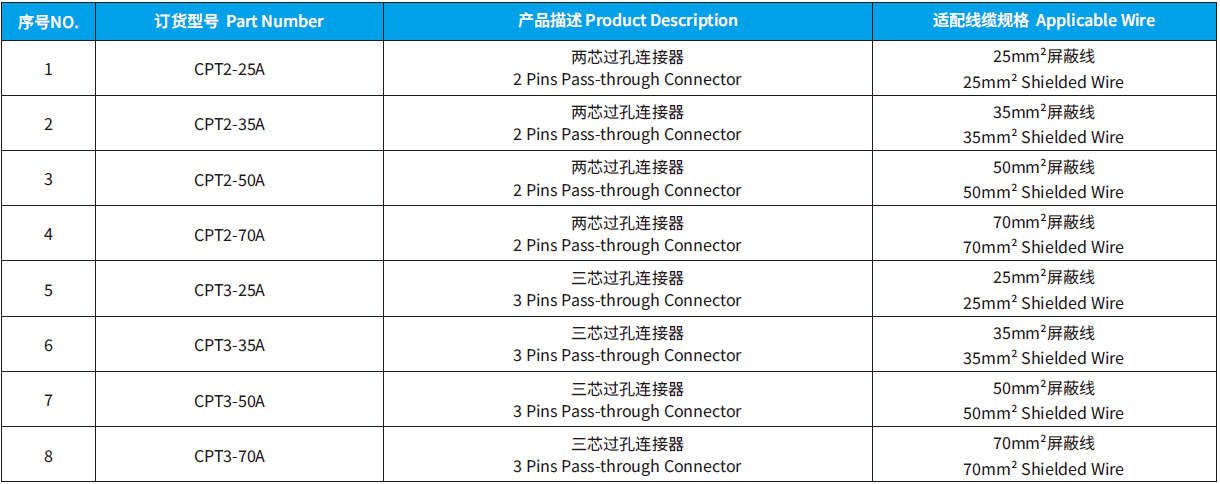

Part Information

Plug Type

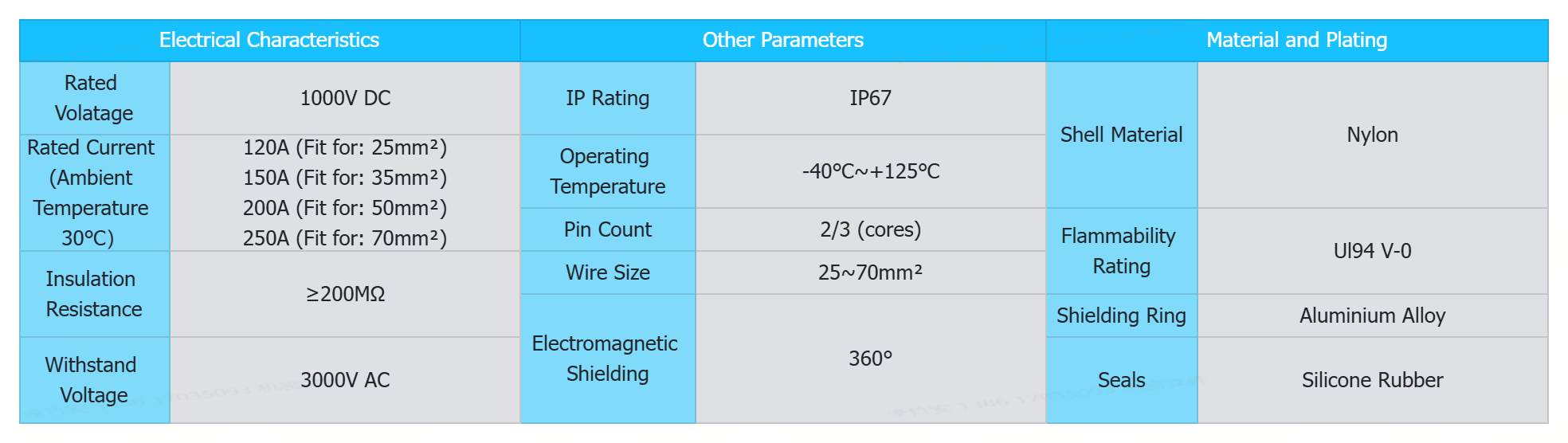

Performance Parameters



① Perfect quality management and process production.



A professional team engaged in the production and research and development of this product for more than 12 years.



A first-class and complete production workshop and equipment.

Comprehensive product testing equipment. We have the first authorized UL sighting laboratory in China.
