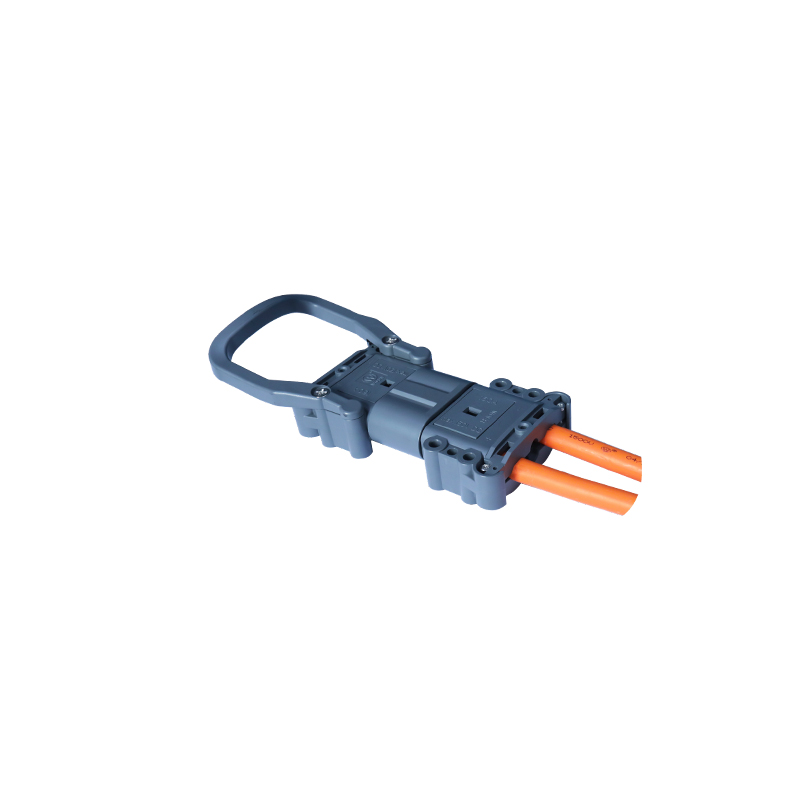

XC02 Series Forklift Connector
Related Products
Product Type:
Socket Type
| No. | Type | Product Description |
Applicable Wire Specification
|
| 1 | XC02K16-X |
Without handle; includes contacts & XPCS signal terminals
|
16 mm² Unshielded Wire
|
| 2 | XC02K25-X |
Without handle; includes contacts & XPCS signal terminals
|
25 mm² Unshielded Wire
|
| 3 | XC02K35-X |
Without handle; includes contacts & XPCS signal terminals
|
35 mm² Unshielded Wire
|
| 4 |
XC02K50-X |
Without handle; includes contacts & XPCS signal terminals
|
50 mm² Unshielded Wire
|
| 5 | XC02KS16-X |
With handle, contacts & XPCS signal terminals
|
16 mm² Unshielded Wire
|
| 6 | XC02KS25-X |
With handle, contacts & XPCS signal terminals
|
25 mm² Unshielded Wire
|
| 7 | XC02KS35-X |
With handle, contacts & XPCS signal terminals
|
35 mm² Unshielded Wire
|
| 8 | XC02KS50-X |
With handle, contacts & XPCS signal terminals
|
50 mm² Unshielded Wire
|
Pin Tyepe
| No. | Type | Product Description |
Applicable Wire Specification
|
| 1 | XC02Z16-X |
Without handle; includes contacts & XPCS signal terminals
|
16 mm² Unshielded Wire
|
| 2 | XC02Z25-X |
Without handle; includes contacts & XPCS signal terminals
|
25 mm² Unshielded Wire
|
| 3 | XC02Z35-X |
Without handle; includes contacts & XPCS signal terminals
|
35 mm² Unshielded Wire
|
| 4 |
XC02Z50-X |
Without handle; includes contacts & XPCS signal terminals
|
50 mm² Unshielded Wire
|
| 5 | XC02ZS16-X |
With handle, contacts & XPCS signal terminals
|
16 mm² Unshielded Wire
|
| 6 | XC02ZS25-X |
With handle, contacts & XPCS signal terminals
|
25 mm² Unshielded Wire
|
| 7 | XC02ZS35-X |
With handle, contacts & XPCS signal terminals
|
35 mm² Unshielded Wire
|
| 8 | XC02ZS50-X |
With handle, contacts & XPCS signal terminals
|
50 mm² Unshielded Wire
|
Note: "-X"at the end of the product: -2 represents 2PCS Signal Terminal I，-2A represents 2PCS Signal Terminal II，-4 represents 4PCS Signal Terminal
(2PCS Signal Terminal I+2PCS Signal Terminal II)

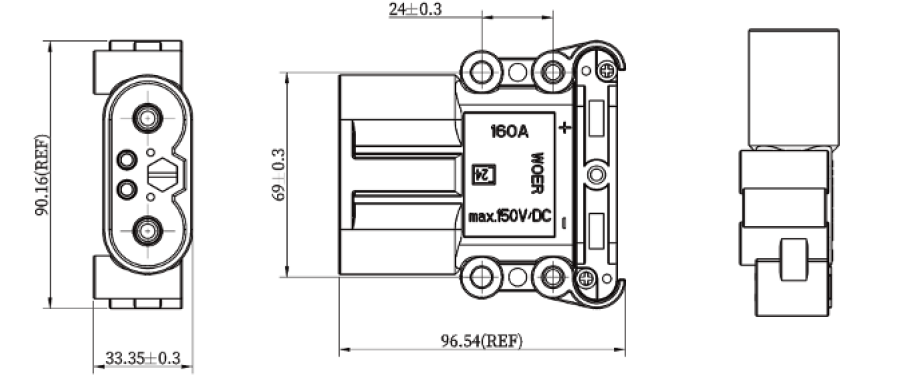

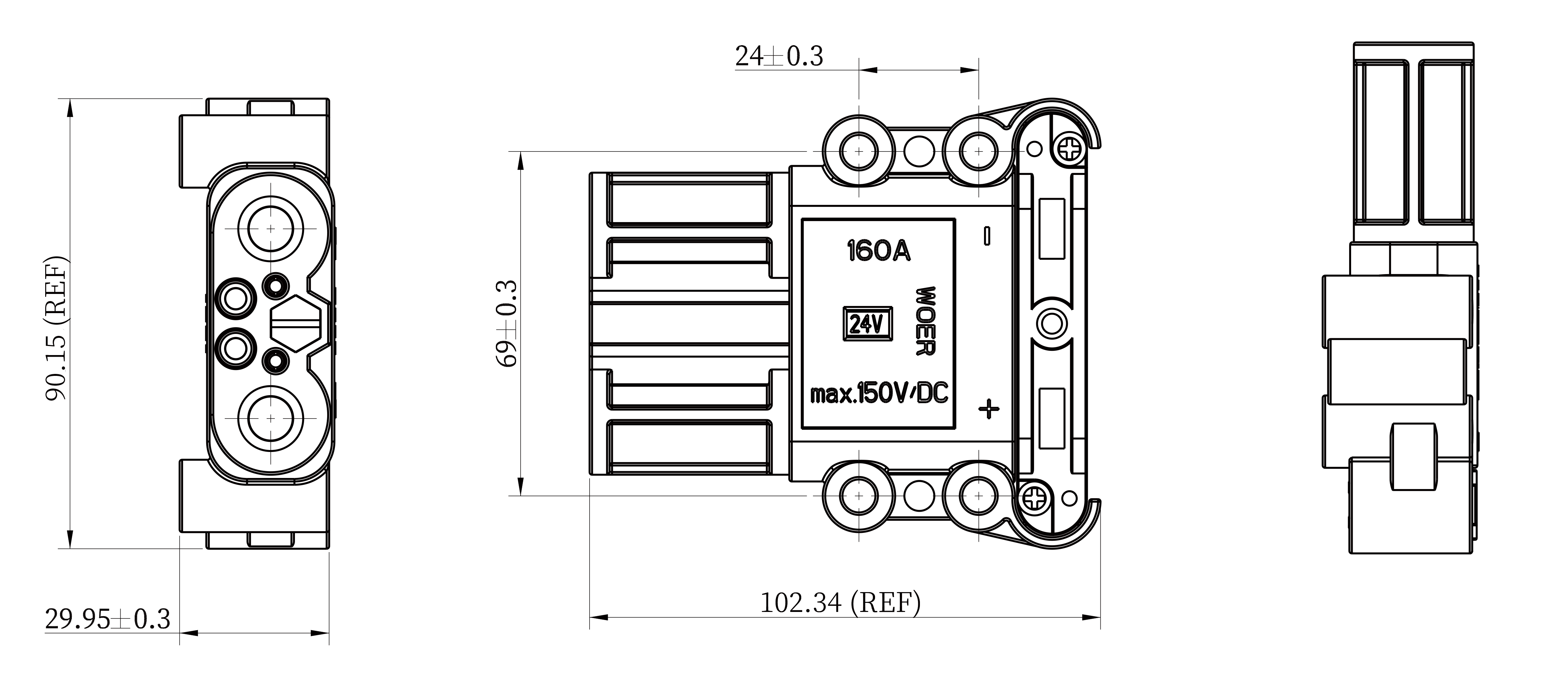

Outline Dimension

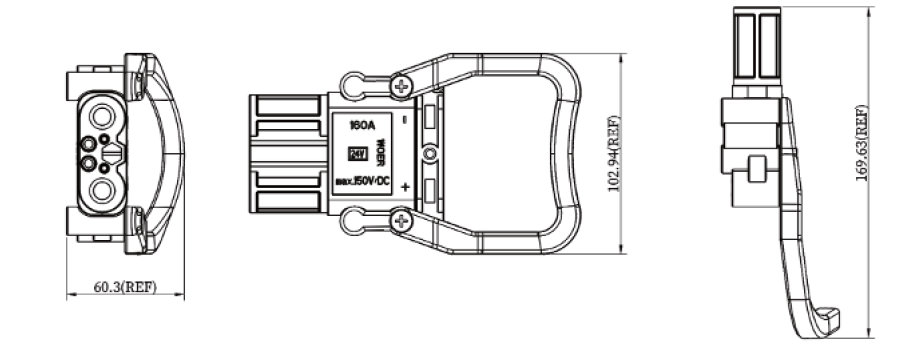

Socket with Handle Outline Drawing

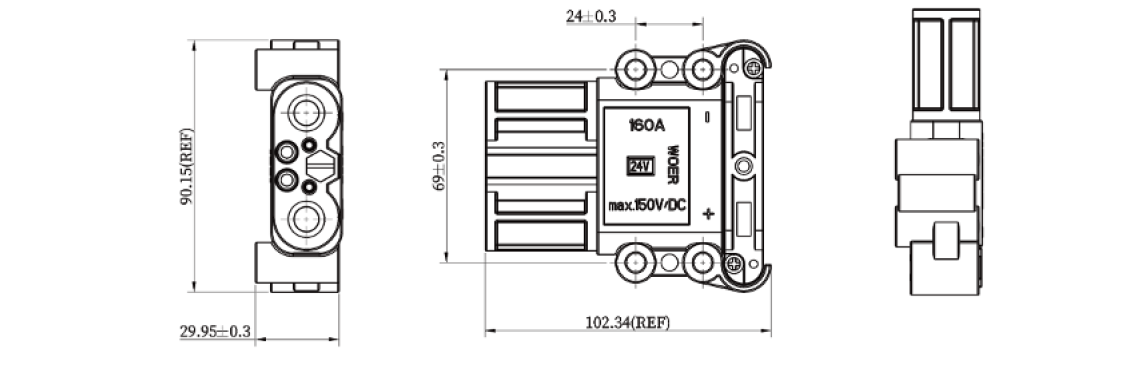

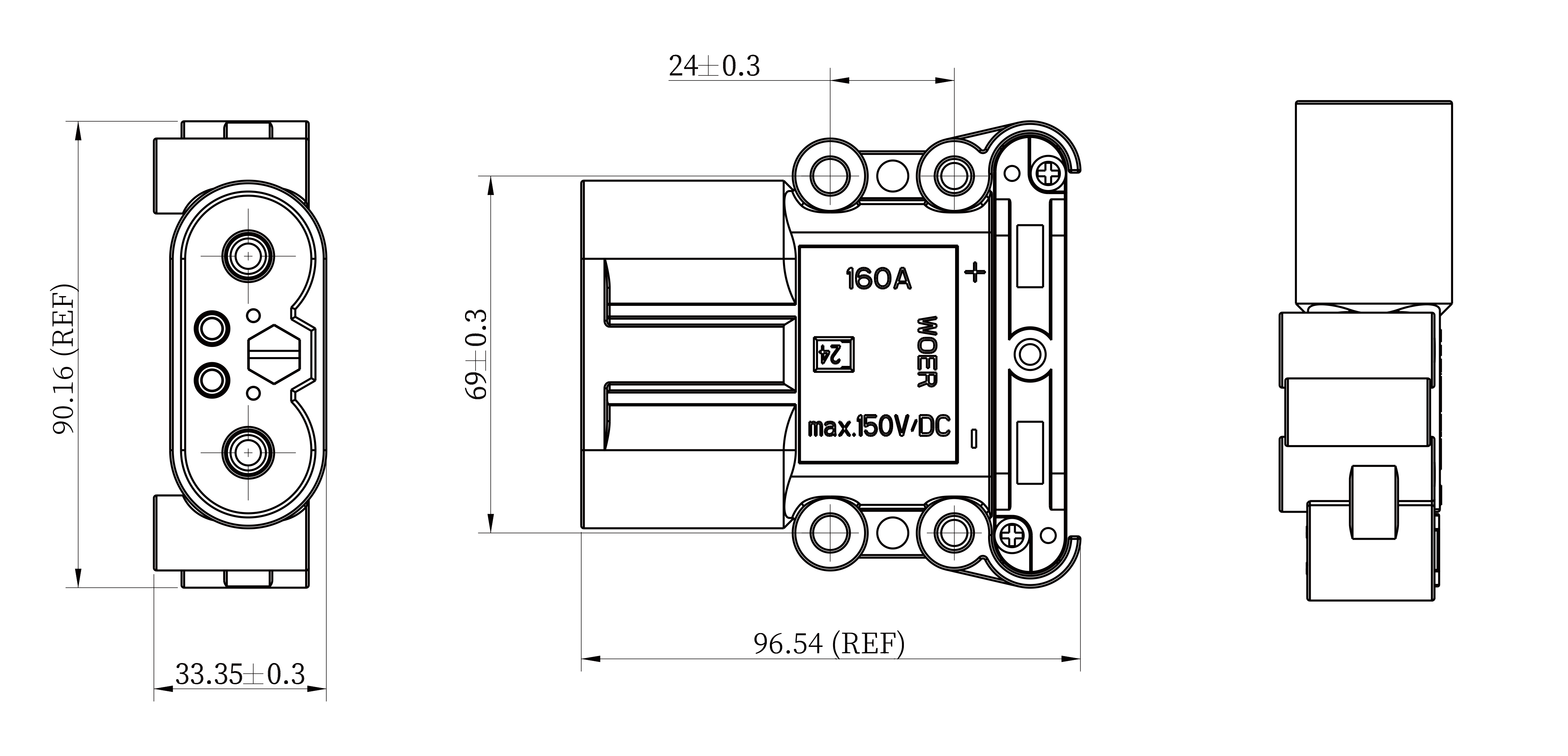

Pin Outline Drawing

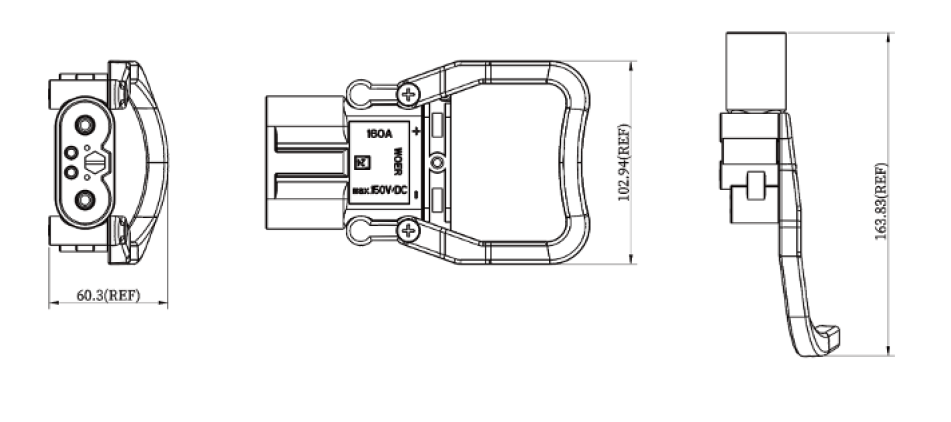

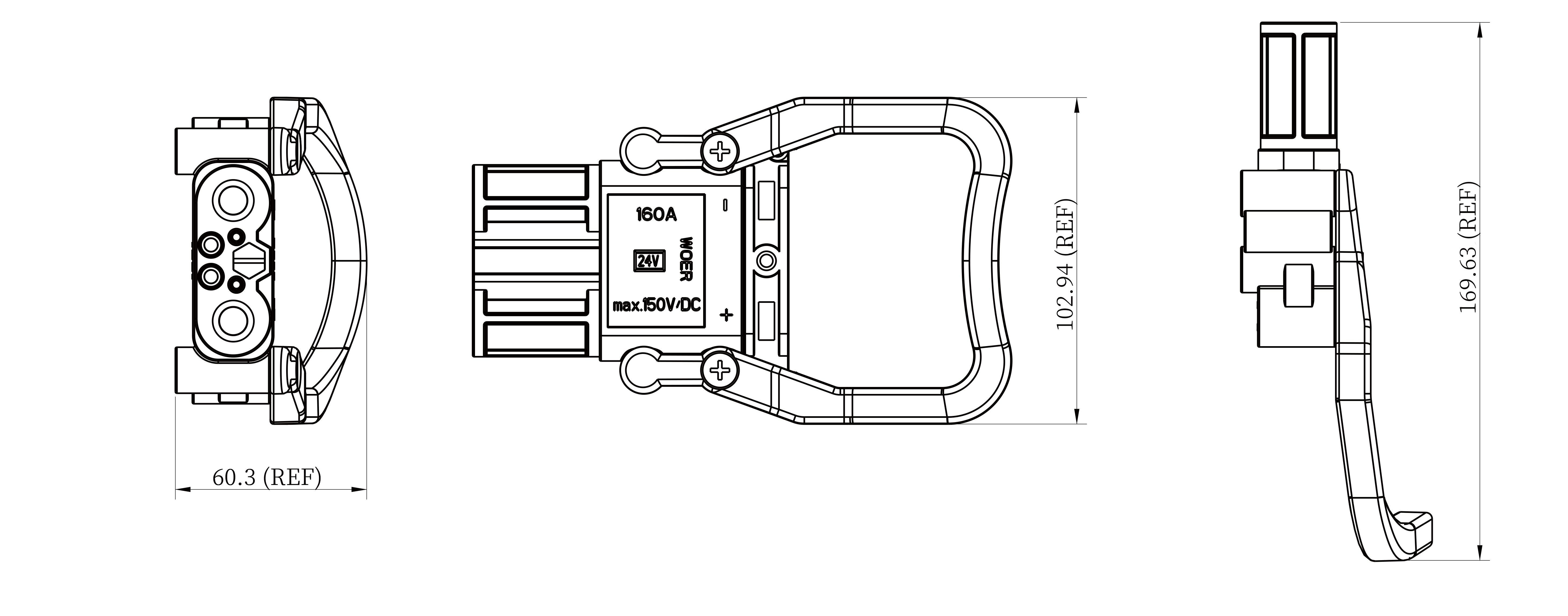

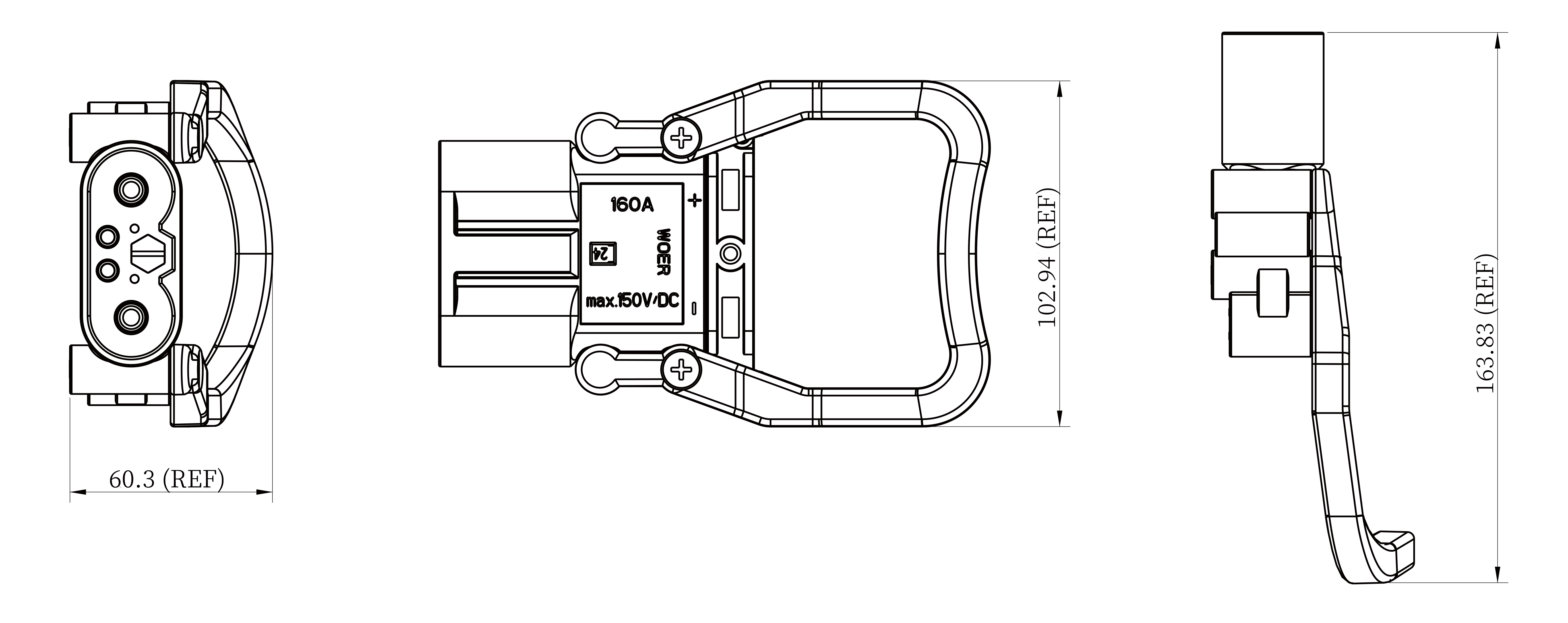

Pin with Handle Outline Drawing
| Production Process | ||||
|
Injection workshop |
Mixing workshop |
Machining workshop |
Stranded cabling |
Heat shrink tube production |
|
Moulding workshop |
Rubber injection workshop |
Stamping workshop |
Irradiation workshop |
Embossing tube production |

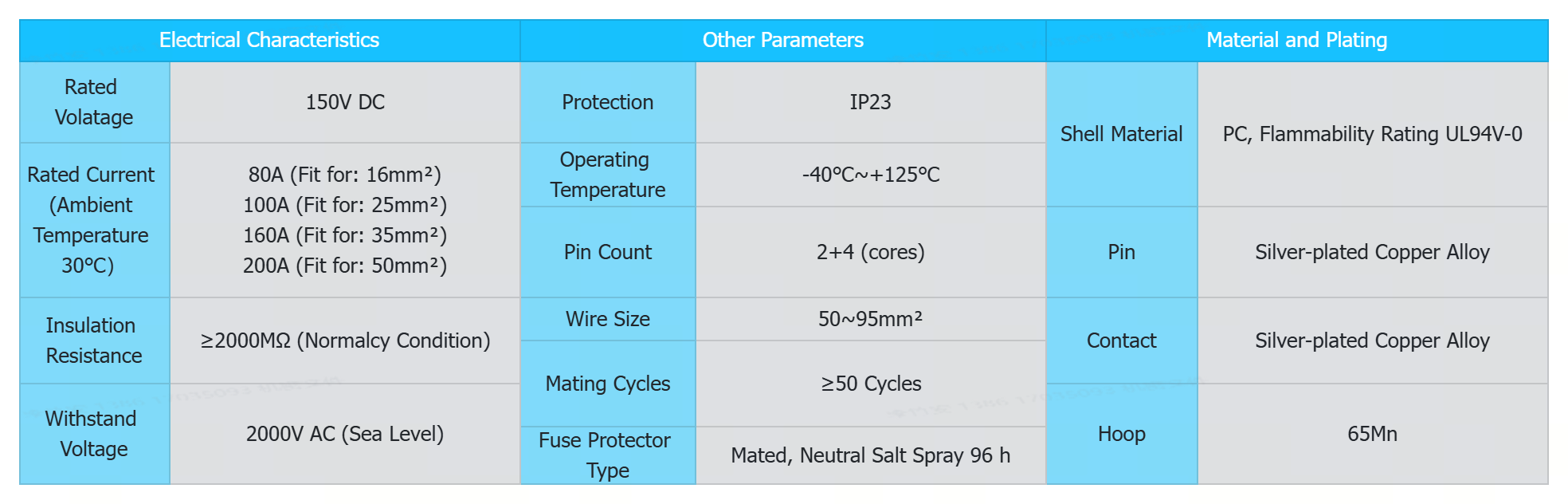

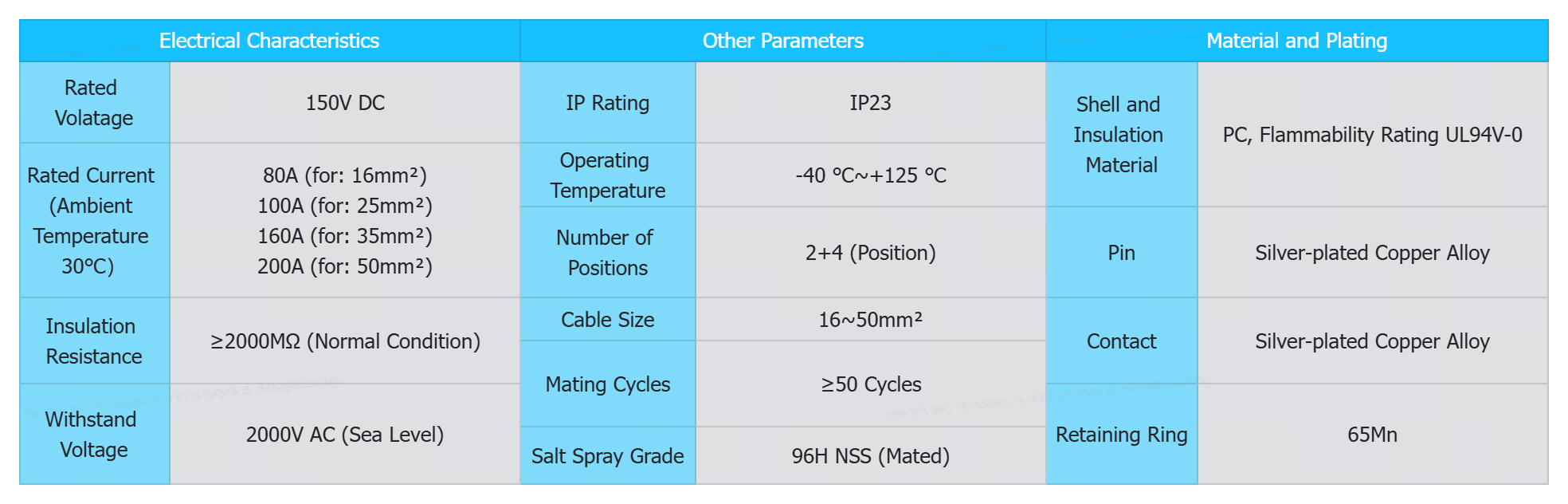

Performance Parameters
|
① Perfect quality management and process production. |
 |
|
|
② A professional team engaged in the production and research and development of this product for more than 12 years. |
|
③ A first-class and complete production workshop and equipment. |
 |
|
|
④ Comprehensive product testing equipment. We have the first authorized UL sighting laboratory in China. |
