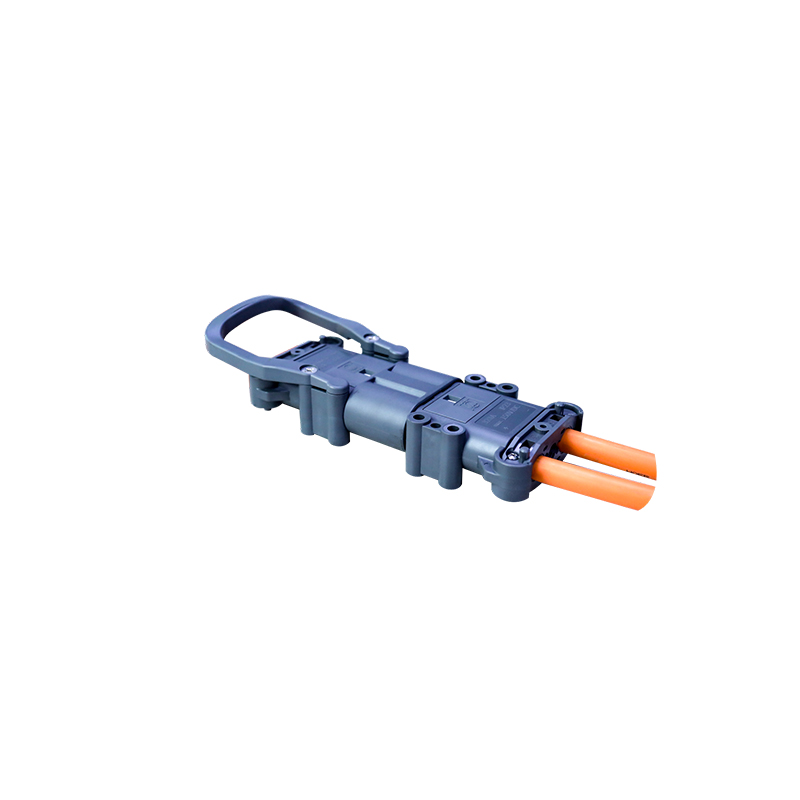

XC01 Series Forklift Connector
Related Products
Product Type:
Socket Type
| No. | Type | Product Description |
Applicable Wire Specification
|
| 1 | XC01KS50-X |
With handle, contacts & XPCS signal terminals; without temp. probe
|
50 mm² Unshielded Wire
|
| 2 | XC01KS70-X |
With handle, contacts & XPCS signal terminals; without temp. probe
|
70 mm² Unshielded Wire
|
| 3 | XC01KS95-X |
With handle, contacts & XPCS signal terminals; without temp. probe
|
95 mm² Unshielded Wire
|
| 4 |
XC01KS50W-X |
With handle, contacts, XPCS signal terminals & temp. probe
|
50 mm² Unshielded Wire
|
| 5 | XC01KS70W-X |
With handle, contacts, XPCS signal terminals & temp. probe
|
70 mm² Unshielded Wire
|
| 6 | XC01KS95W-X |
With handle, contacts, XPCS signal terminals & temp. probe
|
95 mm² Unshielded Wire
|
| 7 | XC01K50-X |
Without handle; includes contacts, signal terminals & temp. probe
|
50 mm² Unshielded Wire
|
| 8 | XC01K70-X |
Without handle; includes contacts, signal terminals & temp. probe
|
70 mm² Unshielded Wire
|
| 9 | XC01K95-X |
Without handle; includes contacts, signal terminals & temp. probe
|
95 mm² Unshielded Wire
|
| 10 | XC01K50W-X |
Without handle; includes contacts & signal terminals; without temp. probe
|
50 mm² Unshielded Wire
|
| 11 | XC01K70W-X |
Without handle; includes contacts & signal terminals; without temp. probe
|
70 mm² Unshielded Wire
|
| 12 | XC01K95W-X |
Without handle; includes contacts & signal terminals; without temp. probe
|
95 mm² Unshielded Wire
|
Pin Tyepe
| No. | Type | Product Description |
Applicable Wire Specification
|
| 1 | XC01ZS50-X |
With handle, contacts & XPCS signal terminals; without temp. probe
|
50 mm² Unshielded Wire
|
| 2 | XC01ZS70-X |
With handle, contacts & XPCS signal terminals; without temp. probe
|
70 mm² Unshielded Wire
|
| 3 | XC01ZS95-X |
With handle, contacts & XPCS signal terminals; without temp. probe
|
95 mm² Unshielded Wire
|
| 4 |
XC01ZS50W-X |
With handle, contacts, XPCS signal terminals & temp. probe
|
50 mm² Unshielded Wire
|
| 5 | XC01ZS70W-X |
With handle, contacts, XPCS signal terminals & temp. probe
|
70 mm² Unshielded Wire
|
| 6 | XC01ZS95W-X |
With handle, contacts, XPCS signal terminals & temp. probe
|
95 mm² Unshielded Wire
|
| 7 | XC01Z50-X |
Without handle; includes contacts, signal terminals & temp. probe
|
50 mm² Unshielded Wire
|
| 8 | XC01Z70-X |
Without handle; includes contacts, signal terminals & temp. probe
|
70 mm² Unshielded Wire
|
| 9 | XC01Z95-X |
Without handle; includes contacts, signal terminals & temp. probe
|
95 mm² Unshielded Wire
|
| 10 | XC01Z50W-X |
Without handle; includes contacts & signal terminals; without temp. probe
|
50 mm² Unshielded Wire
|
| 11 | XC01Z70W-X |
Without handle; includes contacts & signal terminals; without temp. probe
|
70 mm² Unshielded Wire
|
| 12 | XC01Z95W-X |
Without handle; includes contacts & signal terminals; without temp. probe
|
95 mm² Unshielded Wire
|
Remark: "-X"represents the number of signal pins 1, 2, 3, 4.

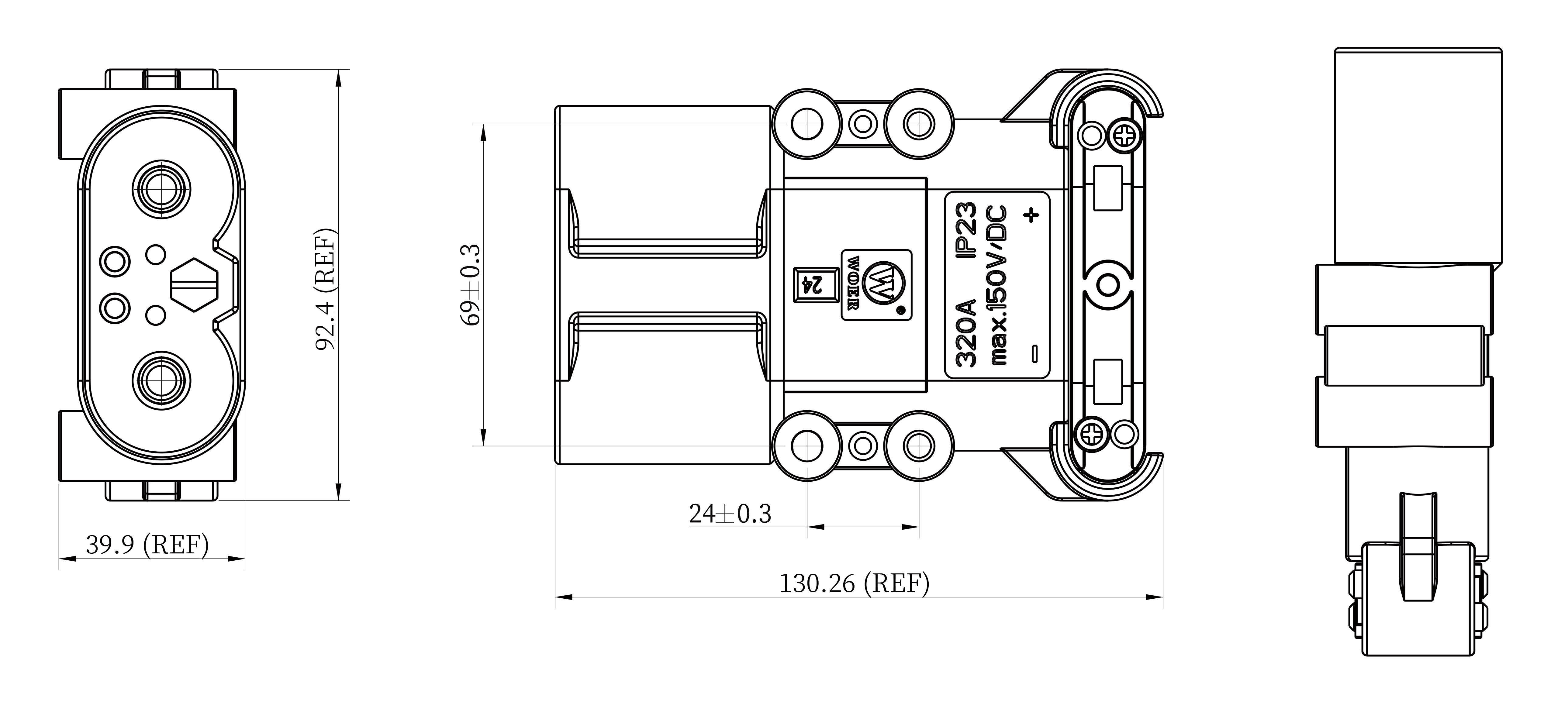

Outline Dimension

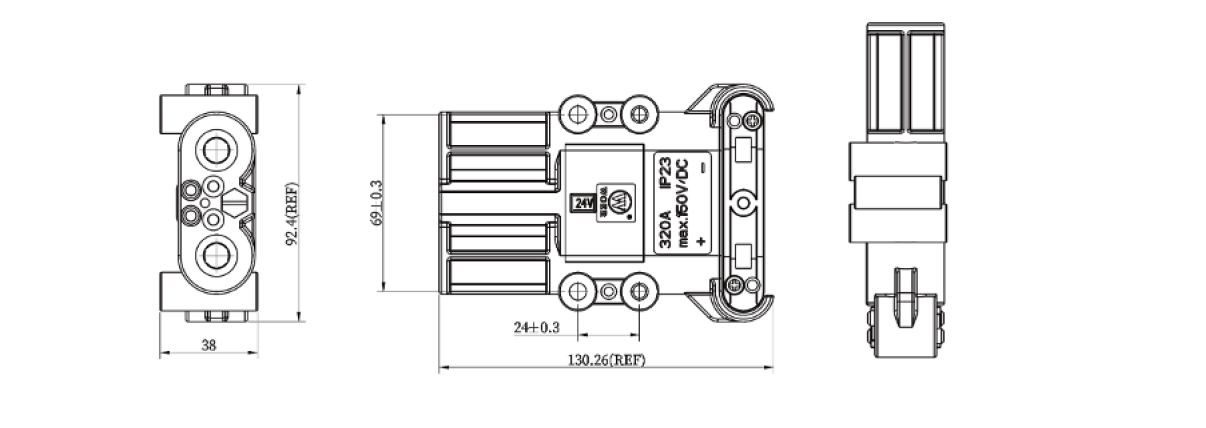

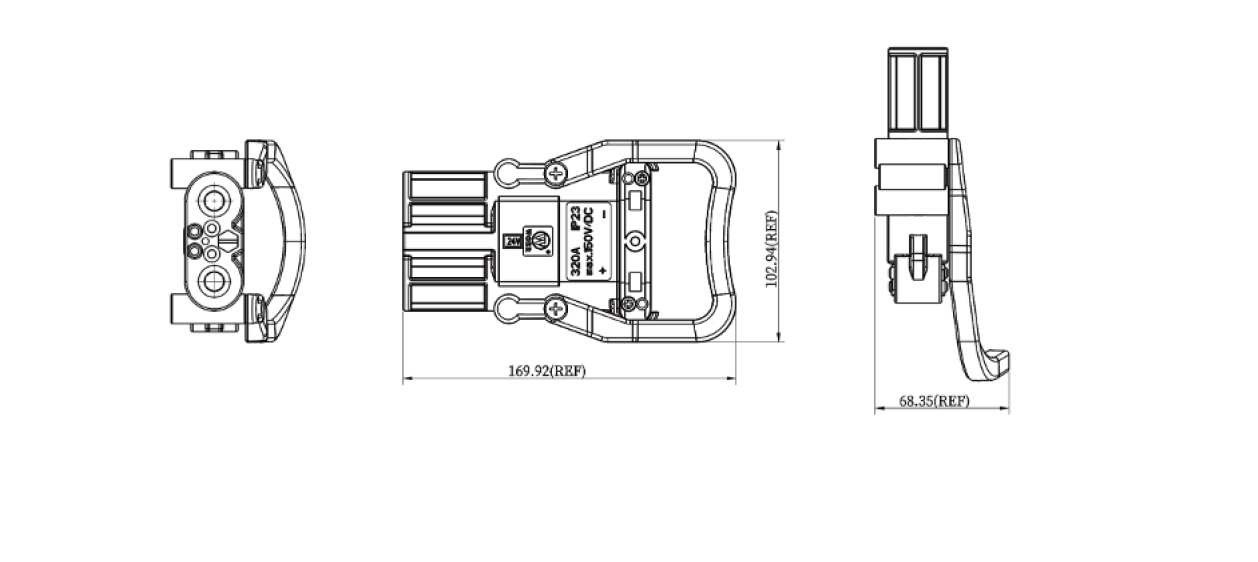

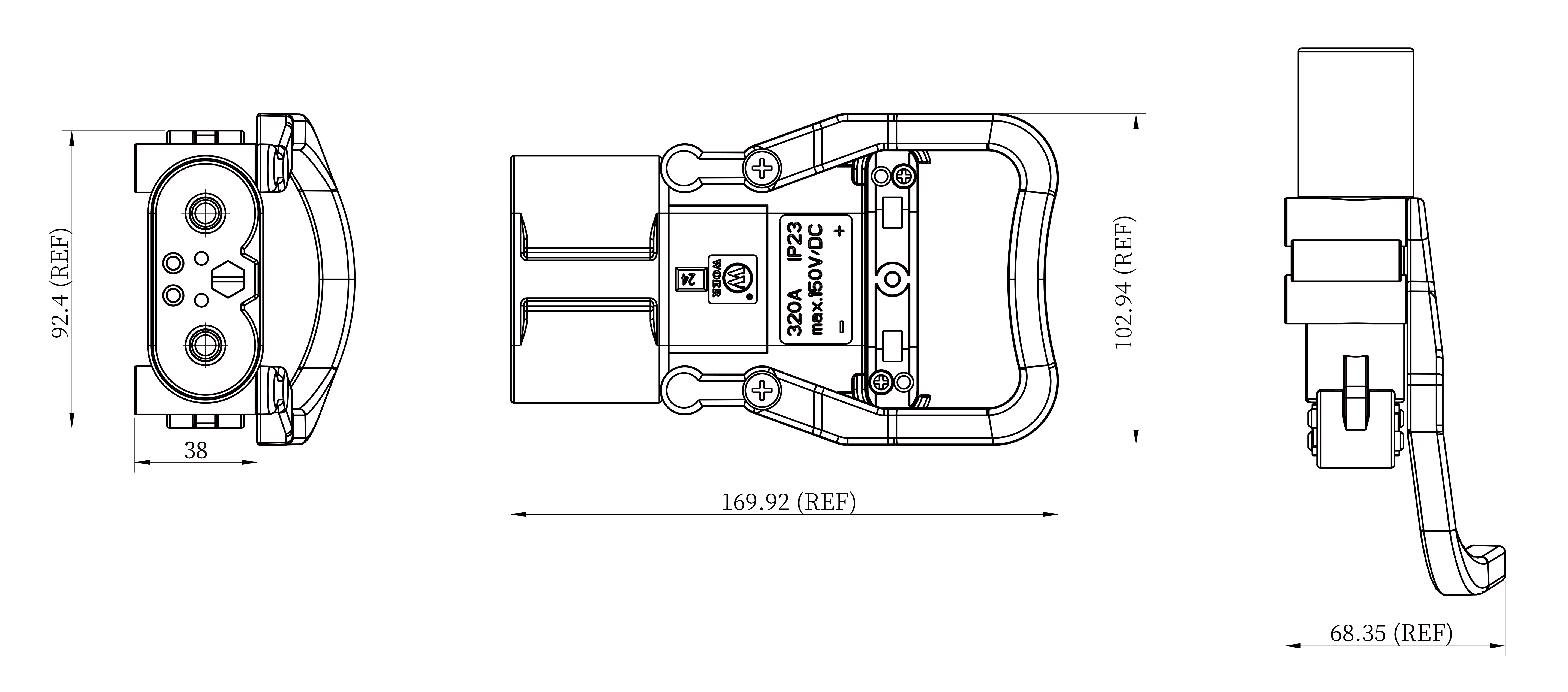

Socket with Handle Outline Drawing

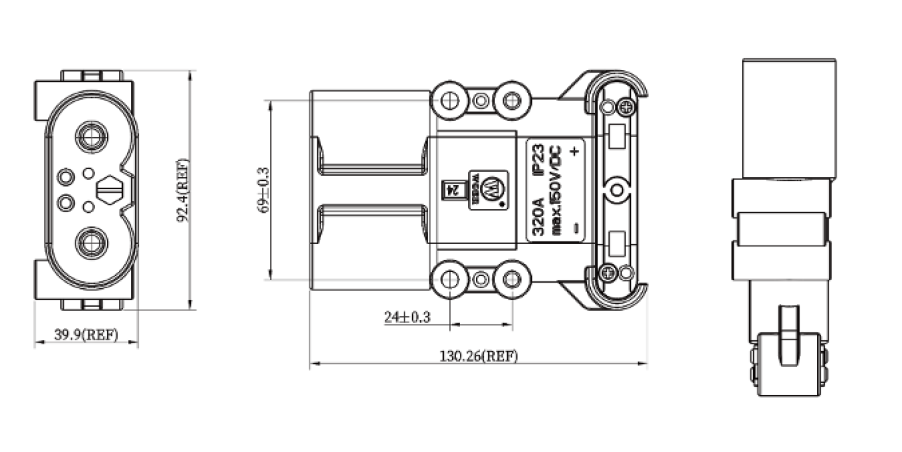

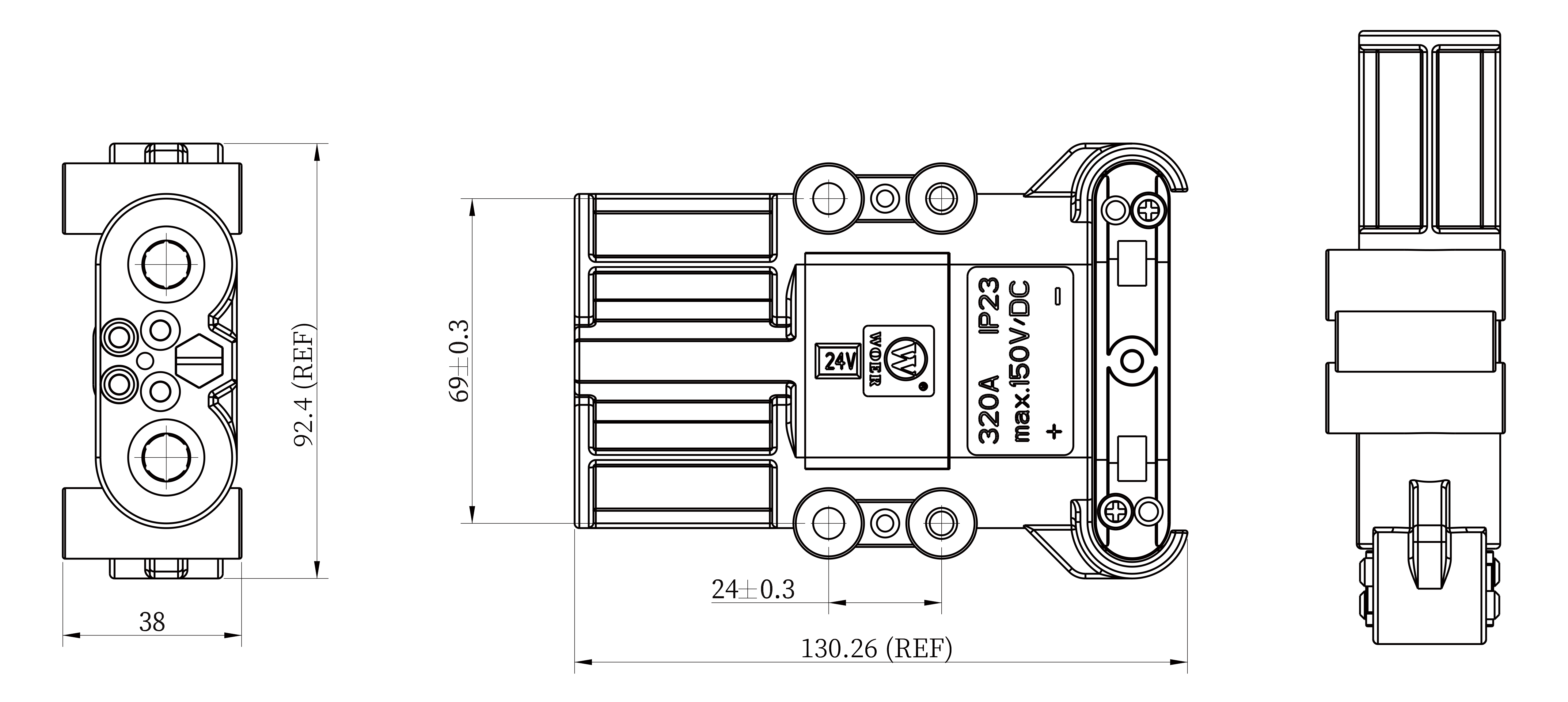

Pin Outline Drawing

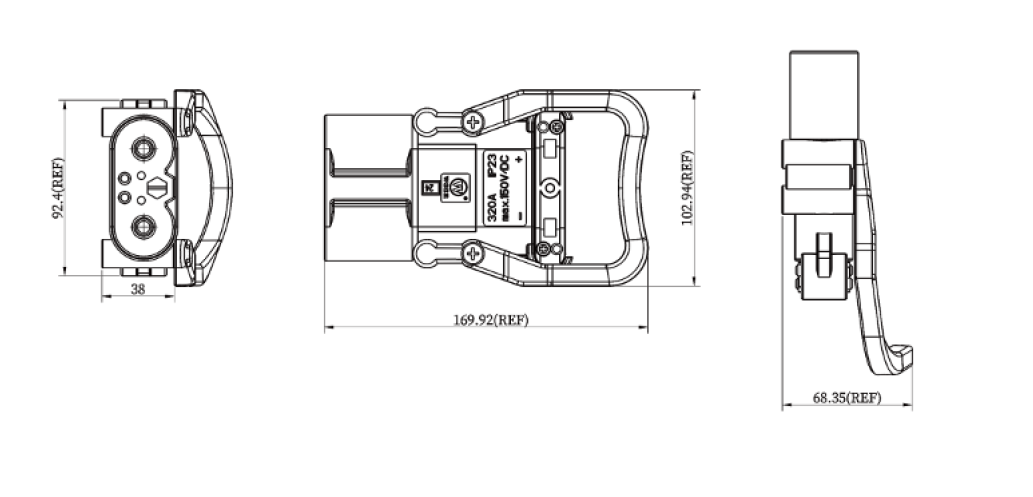

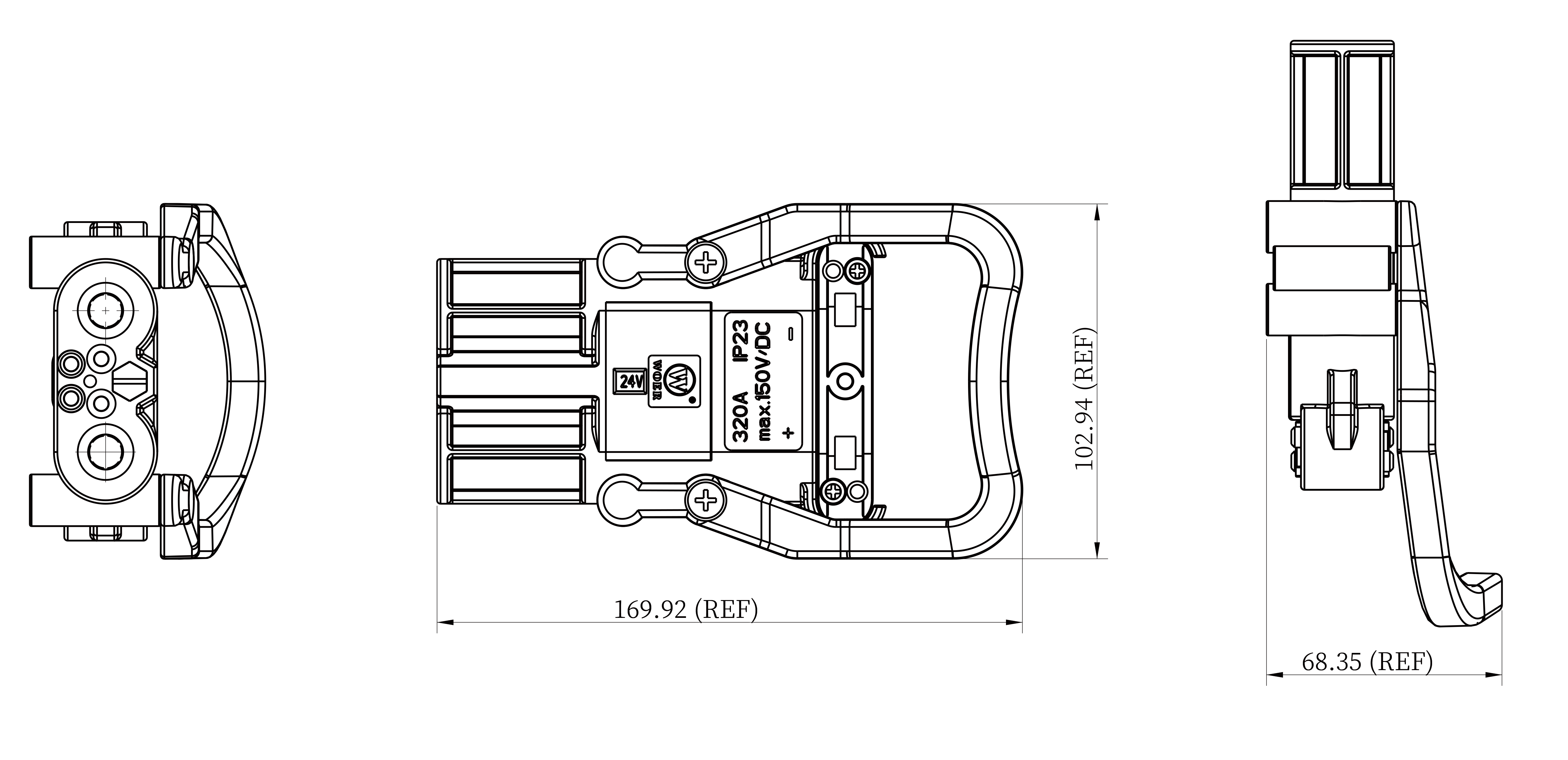

Pin with Handle Outline Drawing
| Production Process | ||||
|
Injection workshop |
Mixing workshop |
Machining workshop |
Stranded cabling |
Heat shrink tube production |
|
Moulding workshop |
Rubber injection workshop |
Stamping workshop |
Irradiation workshop |
Embossing tube production |

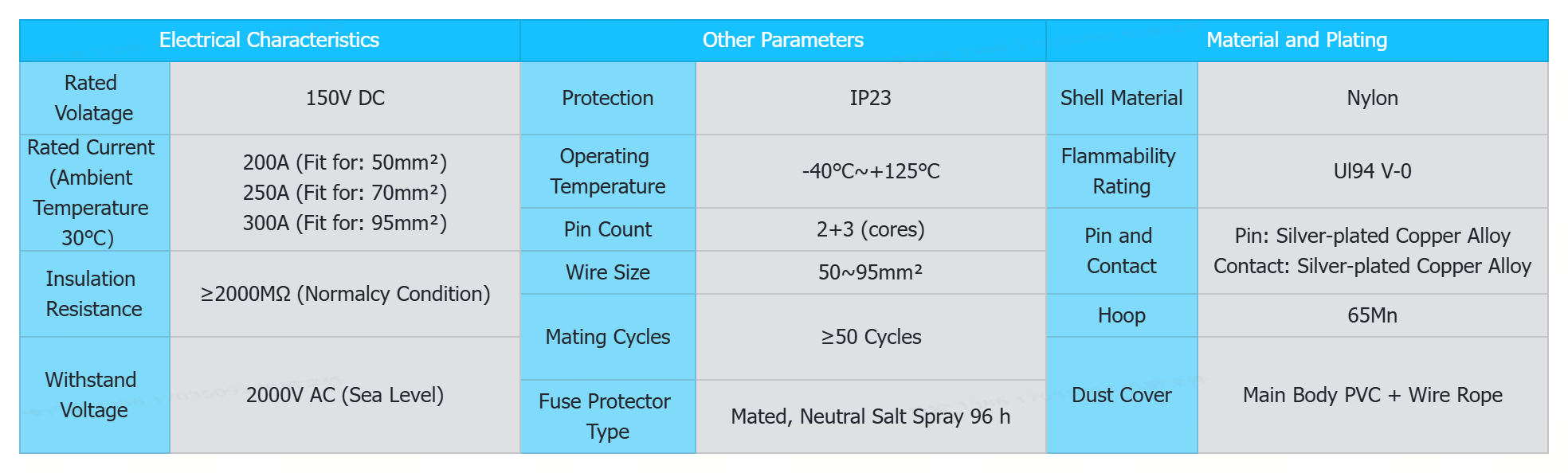

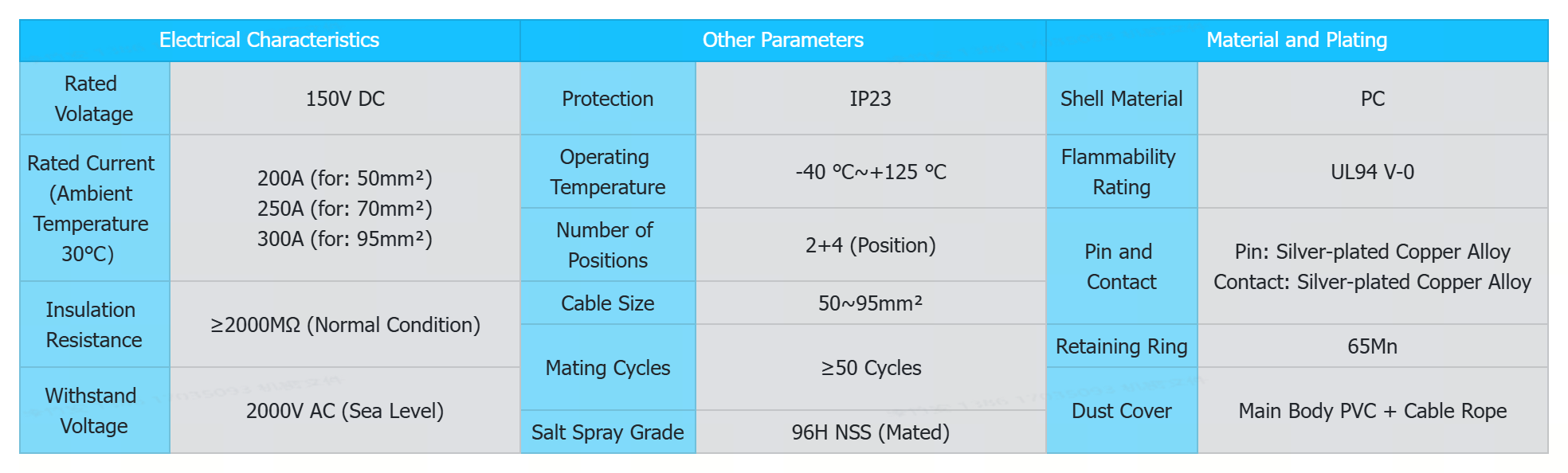

Performance Parameters
|
① Perfect quality management and process production. |
 |
|
|
② A professional team engaged in the production and research and development of this product for more than 12 years. |
|
③ A first-class and complete production workshop and equipment. |
 |
|
|
④ Comprehensive product testing equipment. We have the first authorized UL sighting laboratory in China. |
