HVB630 Series High Voltage Interlock Connector
This product is a plastic HV interlock connector used in EV, hybrid EV, serving HV and large current HV and large current of power battery, motor controller and PDU.
Related Products

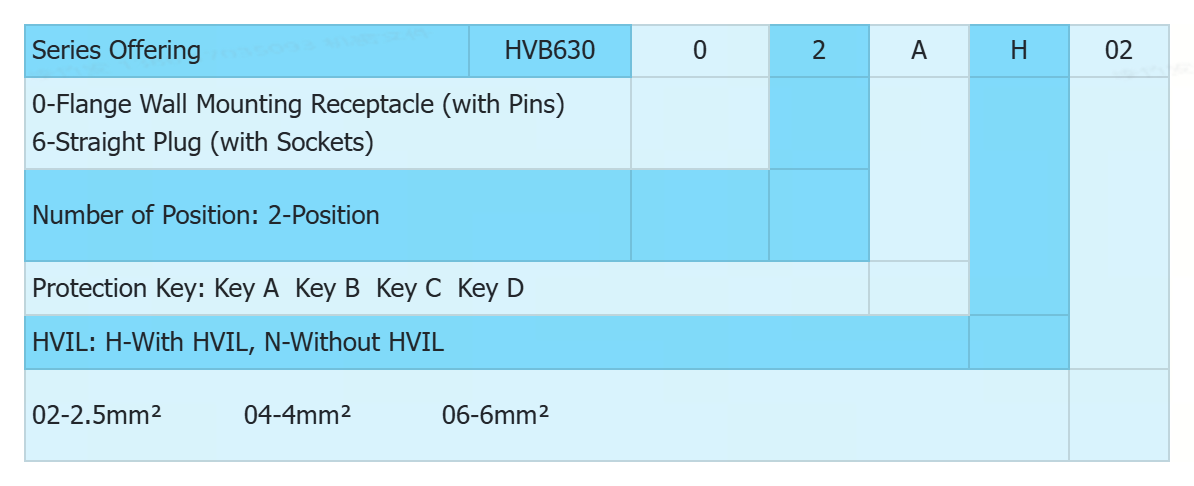

Product List:
HVB630 2-Position
| No. | Ordering P/N | Description | Applicable Cable Size |
| 1 | HVB63062*H02 | 2-Position Flexible with High Voltage Interlock/Plug/Key* |
2.5mm² Shielded Cable |
| 2 | HVAB3062*N02 | 2-Position Flexible without High Voltage Interlock/Plug/Key* | 2.5mm² Shielded Cable |
| 3 | HVB63062*H04 | 2-Position Flexible with High Voltage Interlock/Plug/Key* | 4mm² Shielded Cable |
| 4 | HVB63062*H06 | 2-Position Flexible with High Voltage Interlock/Plug/Key* | 6mm² Shielded Cable |
| 5 | HVB63002*H02 | 2-Position Flexible with High Voltage Interlock/Receptacle/Key* | 2.5mm² Shielded Cable |
| 6 | HVB63002*N02 | 2-Position Flexible without High Voltage Interlock/Receptacle/Key* | 2.5mm² Shielded Cable |
| 7 | HVB63002*H04 | 2-Position Flexible with High Voltage Interlock/Receptacle/Key* | 4mm² Shielded Cable |
| 8 | HVB63002*H06 | 2-Position Flexible with High Voltage Interlock/Receptacle/Key* | 6mm² Shielded Cable |
Outline Dimension:

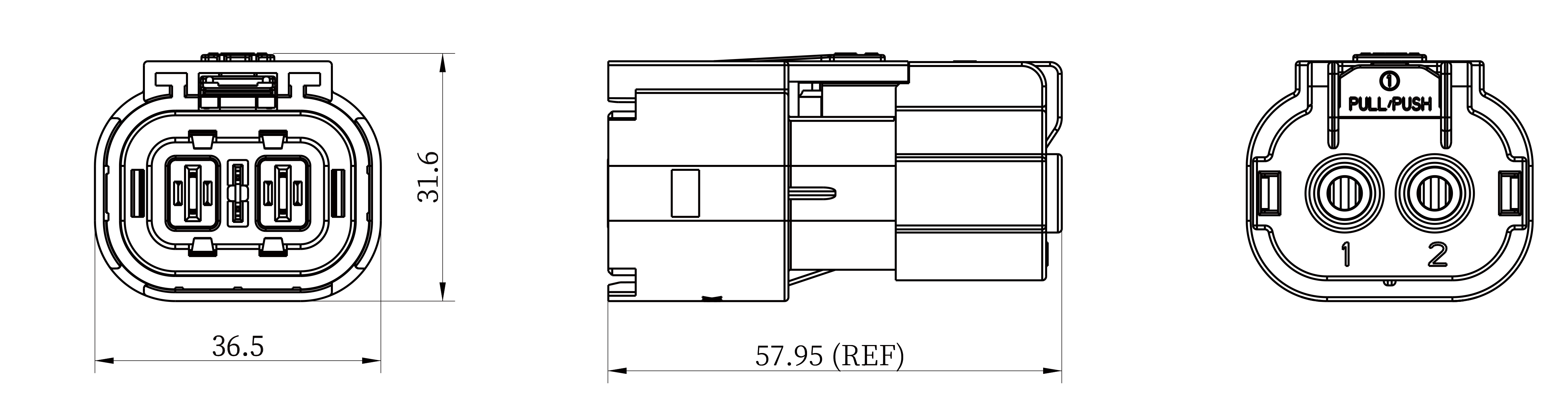

2-Position Plug Outline Drawing

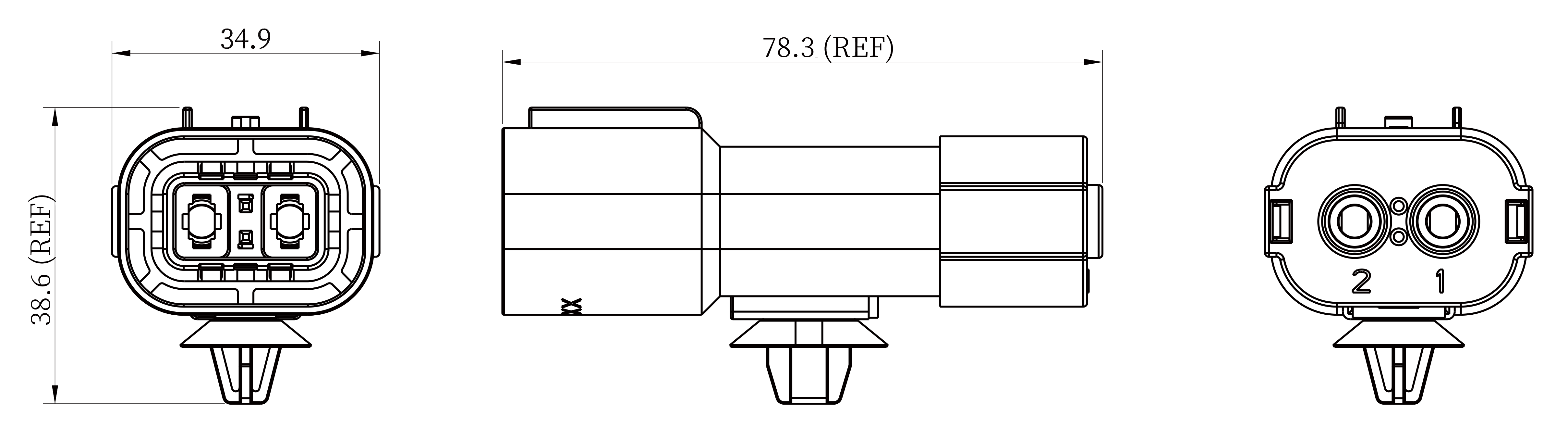

2-Position Receptacle Outline Drawing
| Production Process | ||||
|
Injection Molding Workshop |
Compounding & Mixing Workshop |
Machining Workshop |
Cable Stranding & Cabling |
Heat-Shrink Tubing Production Line |
|
Molding & Tooling Workshop |
Rubber Injection Workshop |
Stamping & Press Workshop |
Irradiation Crosslinking Center |
Embossed Tubing Production Line |

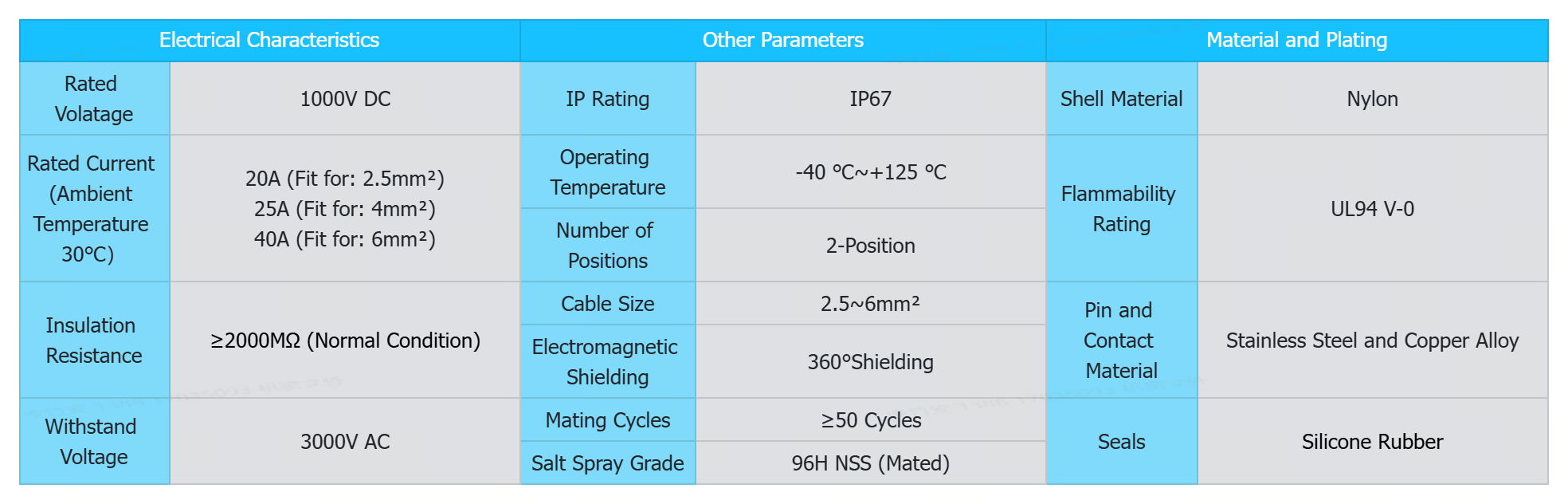

Performance Parameters
|
① Perfect quality management and process production. |
 |
|
|
② A professional team engaged in the production and research and development of this product for more than 12 years. |
|
③ A first-class and complete production workshop and equipment. |
 |
|
|
④ Comprehensive product testing equipment. We have the first authorized UL sighting laboratory in China. |
