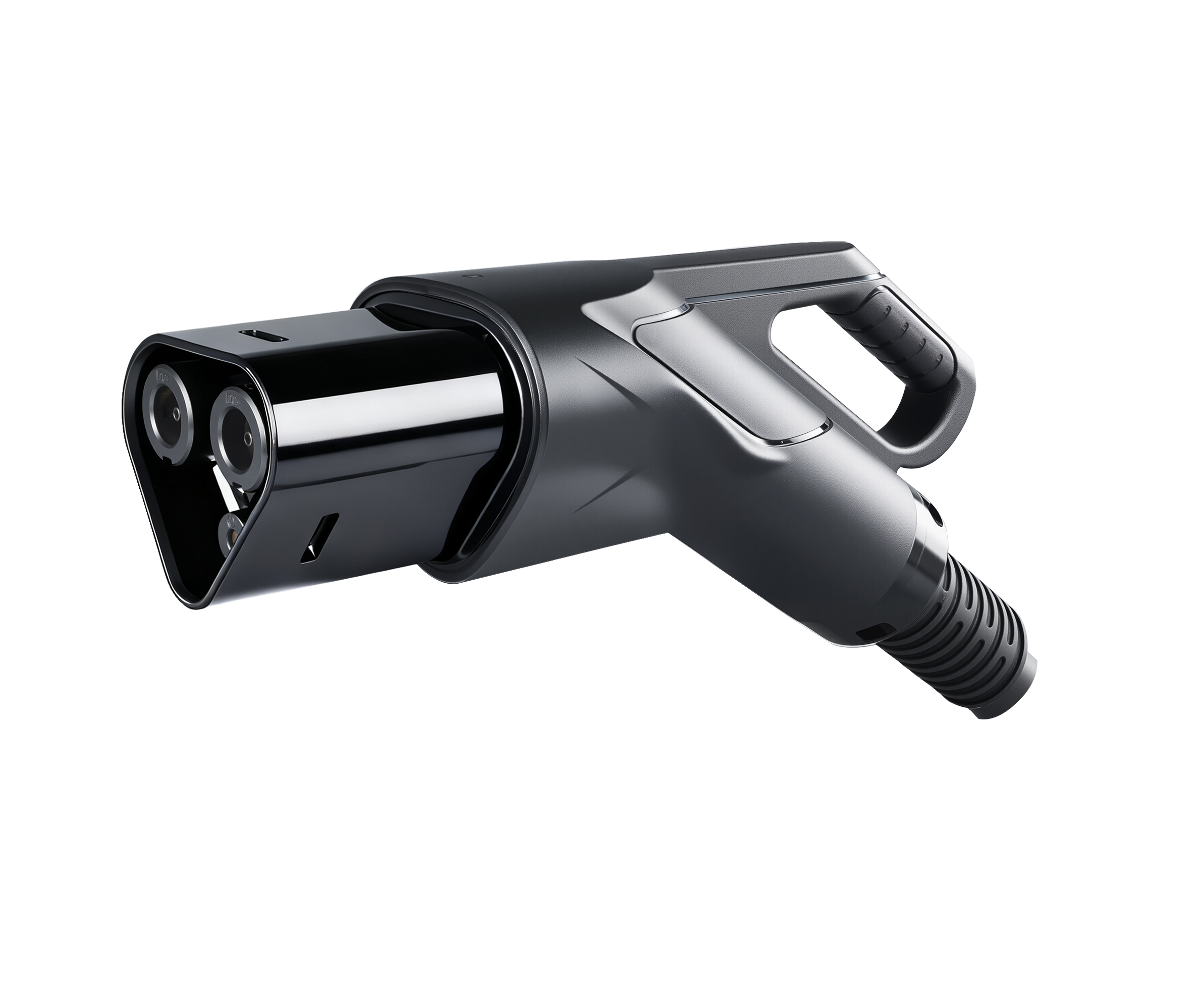

MCS High Power Oil-cooled Charging Connector
| Color : | Black |
| Certification : | IEC TS 63379-2026 |
| Rated Current : | 1200A/1600A |
Related Products
|
About Our Products 'Certificate: Woer New Energy has a professional technical team with hundreds staffs, applying for more than 300 inventions and practical patents, which has passed ISO9001、ISO14001,IATF16949, UL, CSA,TUV andSGS. It is committed to providing customers with more professional products and services.If you need any certificate document, please feel free to contact us .
|
 |
| Production Process | ||||
|
Cutting cables |
Stripping wire |
Mold forming |
Laser printing |
Main line terminal |
|
Signal line terminal |
Visual inspection |
Performance testing |
Packaging and weighing |
Warehousing |
| Rated Voltage | 1500V |
| Rated Current | 1500A |
| Withstand Voltage | 4000V |
| Maximum Peak Current | 1600A |
| Insulation Resistance | ≥500MΩ |
| Operating Temperature | -30℃~+50℃ |
| Protection Degree | IP55(Mated)IP67(Internal Cavity) |
| Flame Retardant Grade | UL94V-0 |
| Mating Forces | <100N |
| Mating Cycles | ≥10000 (No-load) |
| Cooling Power Requirement | 4.5kW |
| Cooling Liquid Flow | 2-6LPM |
| Terminal Working Temperature | 90℃ |
| Maximum Allowable Pressure | 0.6 Mpa Max. |
|
① Perfect quality management and process production. |
 |
|
|
② A professional team engaged in the production and research and development of this product for more than 12 years. |
|
③ A first-class and complete production workshop and equipment. |
 |
|
|
④ Comprehensive product testing equipment. We have the first authorized UL sighting laboratory in China. |
