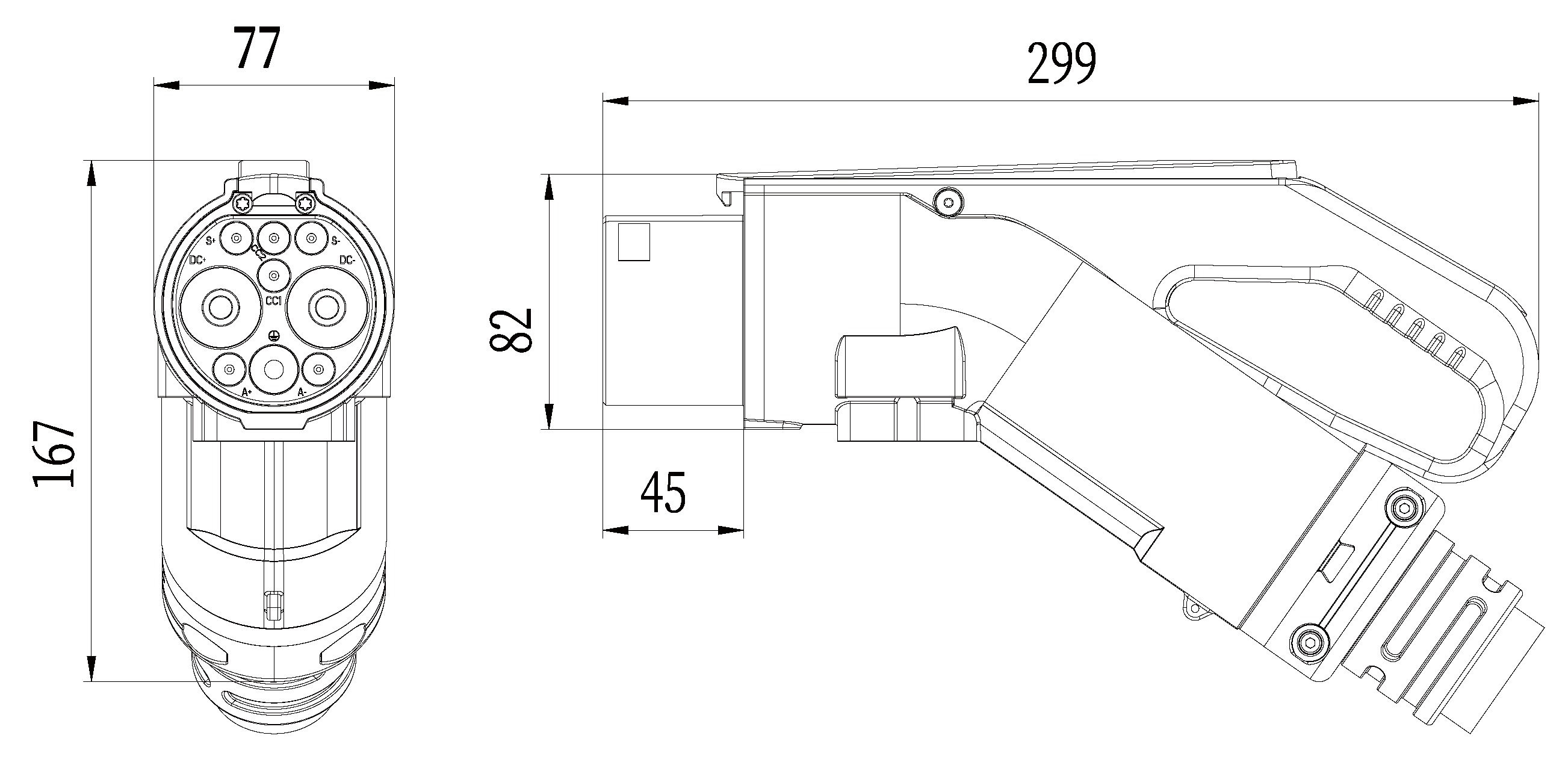

GB/T W-Ⅶ. DC Charging Connector
| Item No : |
WOER-GB-C-DCXXX-06
|
| Color : | White、Black |
| Certification : | GB/T 20234.3-2023 |
| CQC : | YES |
| Rated Current : | 250A/300A/400A |
Related Products
|
About Our Products 'Certificate: Woer New Energy has a professional technical team with hundreds staff, applying for more than 300 inventions and practical patents, which has passed ISO9001、ISO14001,IATF16949, UL, CSA,TUV and SGS. It is committed to providing customers with more professional products and services.If you need any certificate document, please feel free to contact us .
|
 |
| Production Process | ||||
|
Cutting cables |
Stripping wire |
Mold forming |
Laser printing |
Main line terminal |
|
Signal line terminal |
Visual inspection |
Performance testing |
Packaging and weighing |
Warehousing |
| Rated Voltage | 1000V DC |
| Rated Current | 250A/300A/400A |
| Insulation Resistance | ≥500MΩ |
| Withstand Voltage | 3500V AC |
| Mating Cycles | ≥10000 (No-load) |
| Mating Forces | <140N |
| Protection Degree | IP55(Mated)IP67(Internal Cavity) |
| Operating Temperature | -30℃~+50℃ |
| Flame Retardant Grade | UL94V-0 |
| Type of Locking Mechanism | Motor Lock |
|
① Perfect quality management and process production. |
 |
|
|
② A professional team engaged in the production and research and development of this product for more than 12 years. |
|
③ A first-class and complete production workshop and equipment. |
 |
|
|
④ Comprehensive product testing equipment. We have the first authorized UL sighting laboratory in China. |
