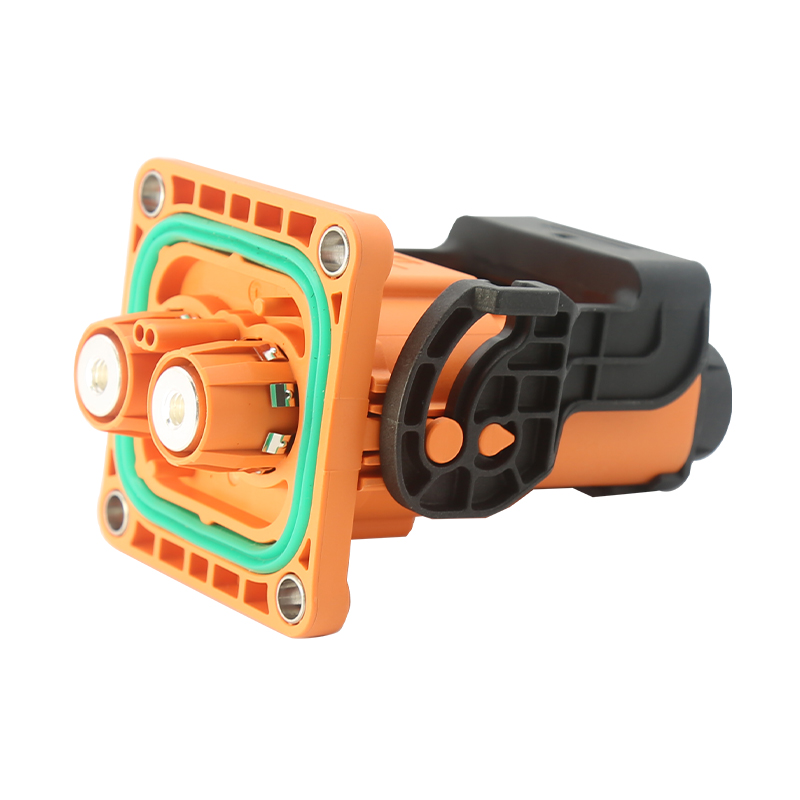

WOER HVB800 series with high voltage interlock connector HV HVIL 1Pin 2Pin 3Pin Metal Plastic Socket Auto For EV
HVB800 series mainly applies to EV battery,PDU,electronic control，etc.
| Item No : | HVB800 |
| Adaptive vehicle type : |
Main push passenger car |
| CQC : | 3 |
| Suitable wiring diameter : | 35mm²~70mm² |
| The protection grades: | IP67 |
Related Products
Product characteristic
This is a plastic shell connector with small size,low weight，easy installation，and better reliability.It applies to all-in-one solution instead of two 2pins connectors to save more.
|
Two cores straight plug outside view
|
|
Plug and socket matching, handle open
|
|
Two cores elbow plug outside view
|
|
Plug and socket matching, handle open
|
|
Two cores receptacle external dimension
|
|
Recommended install trepanning size
|
|
Interlock jack terminal specifications
|
| Production Process | ||||
|
Injection workshop |
Mixing workshop |
Machining workshop |
Stranded cabling |
Heat shrink tube production |
|
Moulding workshop |
Rubber injection workshop |
Stamping workshop |
Irradiation workshop |
Embossing tube production |
|
Electrical characteristic |
Other parameters |
Material and Plating |
|||
|
Rated Voltage |
1000V DC |
Protection |
IP67 |
Shell material |
Nylon |
|
Rated current (ambient temperature 30℃) |
150A (Fit for：35mm²) 200A (Fit for：50mm²) 250A (Fit for：70mm²) |
Temperature range |
-40℃〜+125℃ |
Flammability Rate |
UL94 V-0 |
|
Insulation resistance |
≥2000MΩ(Under normal circumstances) |
Cores |
Two Pins |
Pin and Contact Material |
Red copper |
|
Withstand Voltage |
3000V AC(water level) |
Wire size |
35〜70mm² |
Plating |
Silvering |
|
Electromagnetic Shielding |
360°Shielding |
Seals |
Silicon Rubber |
||
|
Minimum Mating Cycles |
≥100(Times) |
|
|
||
|
Salt Spray Grade |
Neutral salt spray (48H) |
|
|
||
|
① Perfect quality management and process production. |
 |
|
|
② A professional team engaged in the production and research and development of this product for more than 12 years. |
|
③ A first-class and complete production workshop and equipment. |
 |
|
|
④ Comprehensive product testing equipment. We have the first authorized UL sighting laboratory in China. |
