HVA630 Series High Voltage Interlock Connectors
This product is a plastic HV interlock connector used in EV, hybrid EV, serving HV and large current HV and large current of power battery, motor controller and PDU.
Product Characteristic:

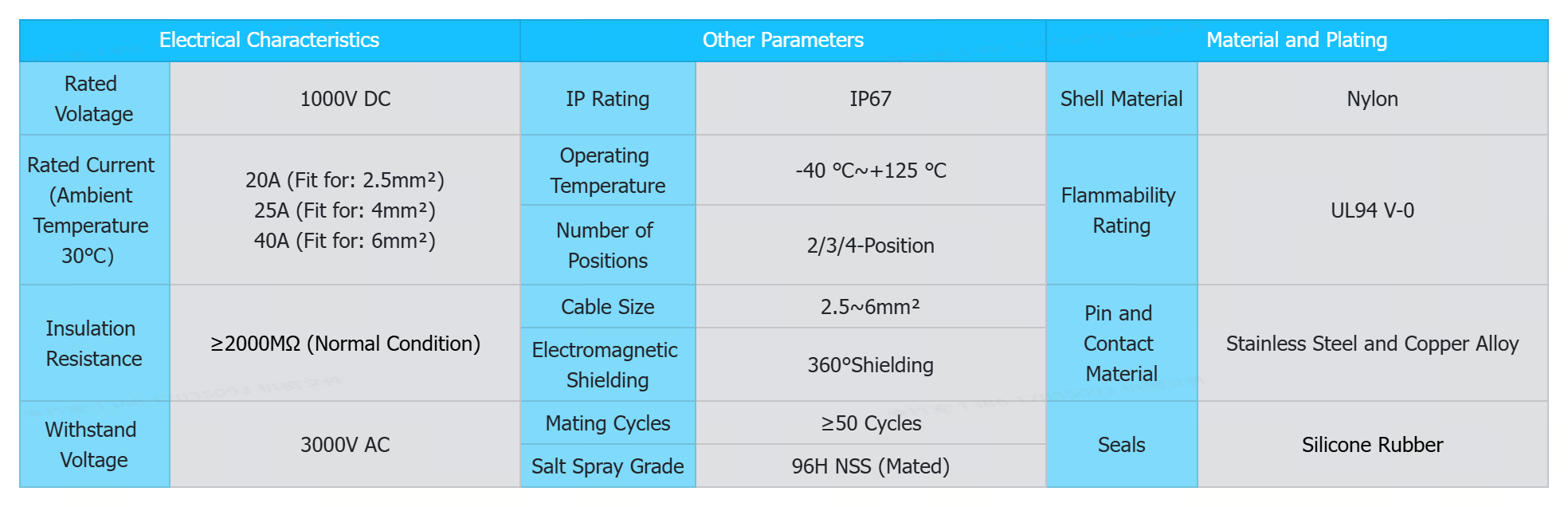

Related Products

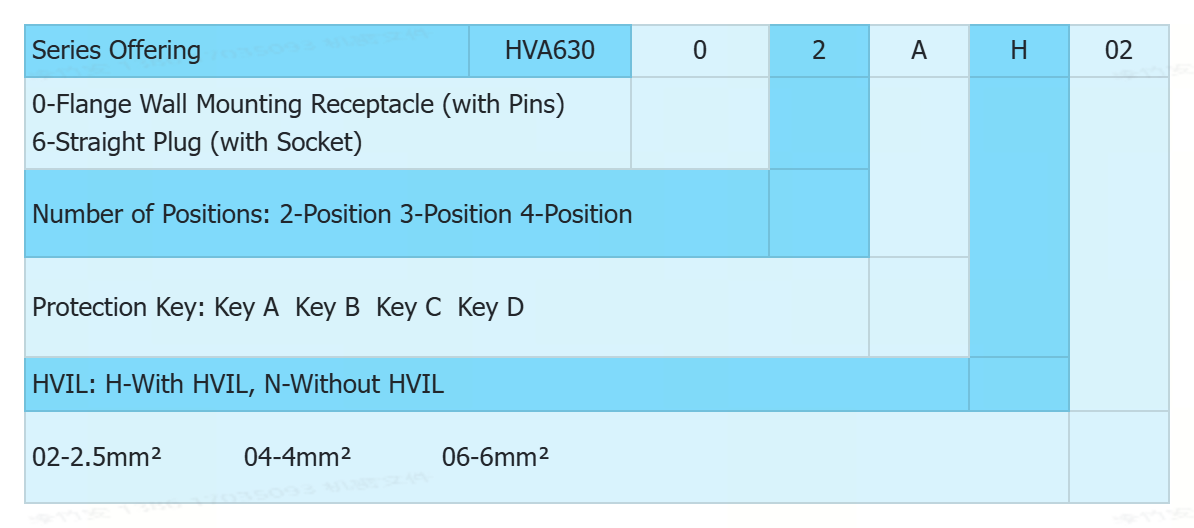

Product List:
HVA630 2-Position
| No. | Ordering P/N | Description | Applicable Cable Size |
| 1 | HVA63062*H02 | High Voltage Interlock/Plug/Key* |
2.5mm² Shielded Cable |
| 2 | HVA63062*H02N | High Voltage Interlock/Plug/Key* | 2.5mm² Unshielded Cable |
| 3 | HVA63062*H02-1 | High Voltage Interlock/Plug/Key* | 2.5mm² Shielded Cable |
| 4 | HVA63062*H04 | High Voltage Interlock/Plug/Key* | 4mm² Shielded Cable |
| 5 | HVA63062*H06 | High Voltage Interlock/Plug/Key* | 6mm² Shielded Cable |
| 6 | HVA63062*H06N | High Voltage Interlock/Plug/Key* | 6mm² Unshielded Cable |
| 7 | HVA63002*H02 | High Voltage Interlock/Receptable/Key* | 2.5mm² Unshielded Cable |
| 8 | HVA63002*H04 | High Voltage Interlock/Receptable/Key* | 4mm² Unshielded Cable |
| 9 | HVA63002*H06 | High Voltage Interlock/Receptable/Key* | 6mm² Unshielded Cable |
HVA630 3-Position
| No. | Ordering P/N | Description | Applicable Cable Size |
| 1 | HVA63063*H02 | High Voltage Interlock/Plug/Key* |
2.5mm² Shielded Cable |
| 2 | HVA63063*H02-1 | High Voltage Interlock/Plug/Key* | 2.5mm² Shielded Cable |
| 3 | HVA63063*H04 | High Voltage Interlock/Plug/Key* | 4mm² Shielded Cable |
| 4 | HVA63063*H06 | High Voltage Interlock/Plug/Key* | 6mm² Shielded Cable |
| 5 | HVA63063*H02N | High Voltage Interlock/Plug/Key* | 2.5mm² Unshielded Cable |
| 6 | HVA63063*H06N | High Voltage Interlock/Plug/Key* | 6mm² Unshielded Cable |
| 7 | HVA63003*H02 | High Voltage Interlock/Receptable/Key* | 2.5mm² Unshielded Cable |
| 8 | HVA63003*H04 | High Voltage Interlock/Receptable/Key* | 4mm² Unshielded Cable |
| 9 | HVA63003*H06 | High Voltage Interlock/Receptable/Key* | 6mm² Unshielded Cable |
| 10 | HVA63003*H02-F | High Voltage Interlock/Receptable/Key*/Split Core | 2.5mm² Unshielded Cable |
| 11 | HVA63003*H04-F | High Voltage Interlock/Receptable/Key*/Split Core | 4mm² Unshielded Cable |
| 12 | HVA63003*H06-F | High Voltage Interlock/Receptable/Key*/Split Core | 6mm² Unshielded Cable |
HVA630 4-Position
| No. |
Ordering P/N
|
Description | Applicable Cable Size |
| 1 | HVA63064*H02 | High Voltage Interlock/Plug/Key* |
2.5mm² Shielded Cable |
| 2 | HVA63064*H02-1 | High Voltage Interlock/Plug/Key* | 2.5mm² Shielded Cable |
| 3 | HVA63064*H04 | High Voltage Interlock/Plug/Key* | 4mm² Shielded Cable |
| 4 | HVA63064*H06 | High Voltage Interlock/Receptable/Key* | 6mm² Shielded Cable |
| 5 | HVA63004*H02 | High Voltage Interlock/Receptable/Key* | 2.5mm² Unshielded Cable |
| 6 | HVA63004*H04 | High Voltage Interlock/Receptable/Key* | 4mm² Unshielded Cable |
| 7 | HVA63004*H06 | High Voltage Interlock/Receptable/Key* | 6mm² Unshielded Cable |
Outline Dimensions:

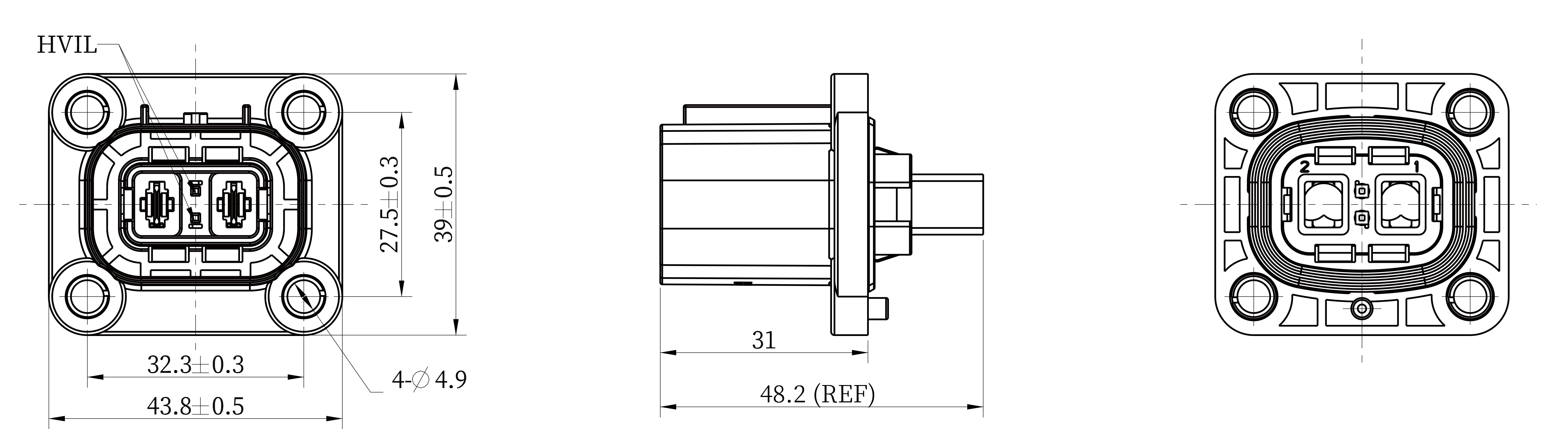

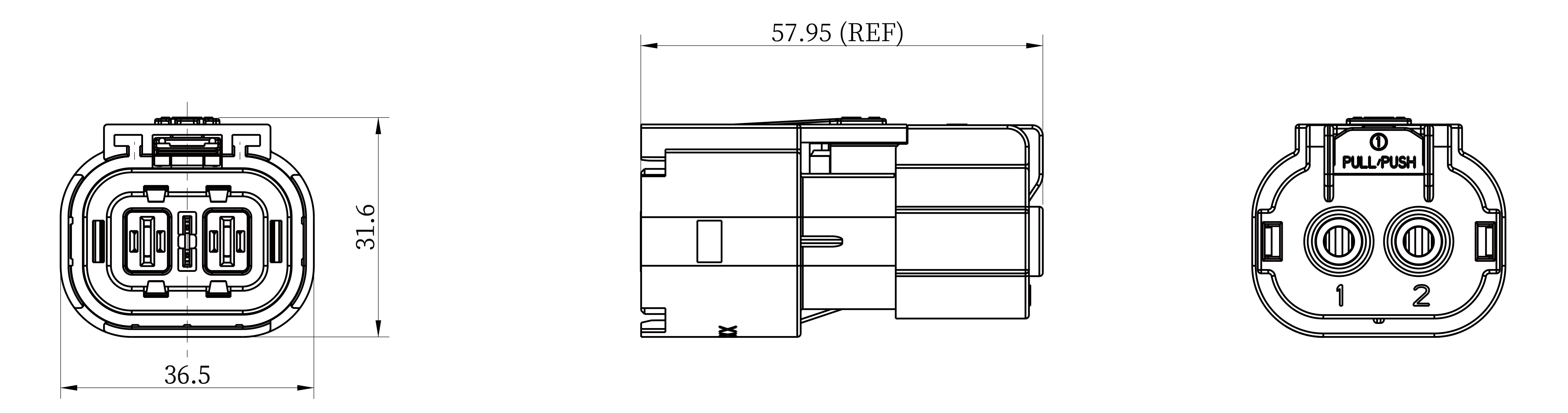

2-Position Plug Outline Drawing
2-Position Receptacle Outline Drawing

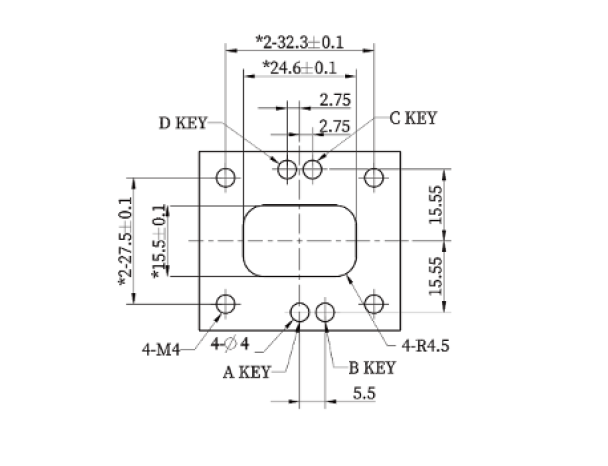

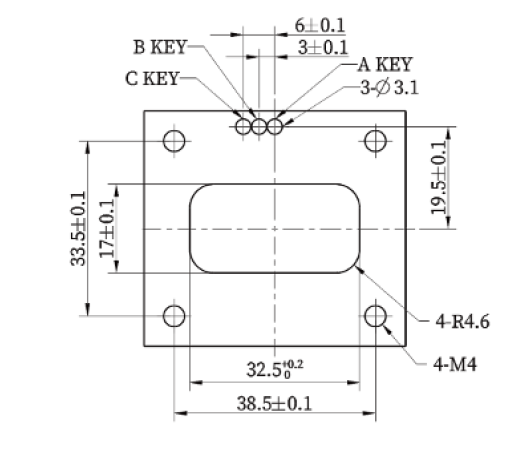

Recommended Panel Cutout

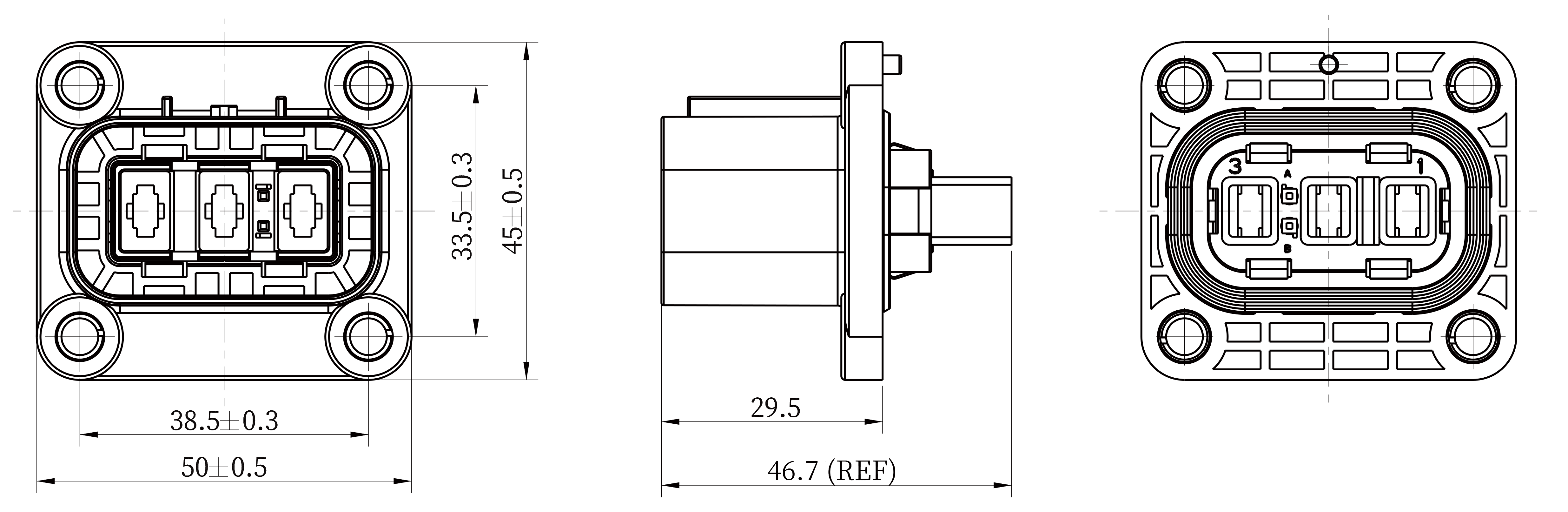

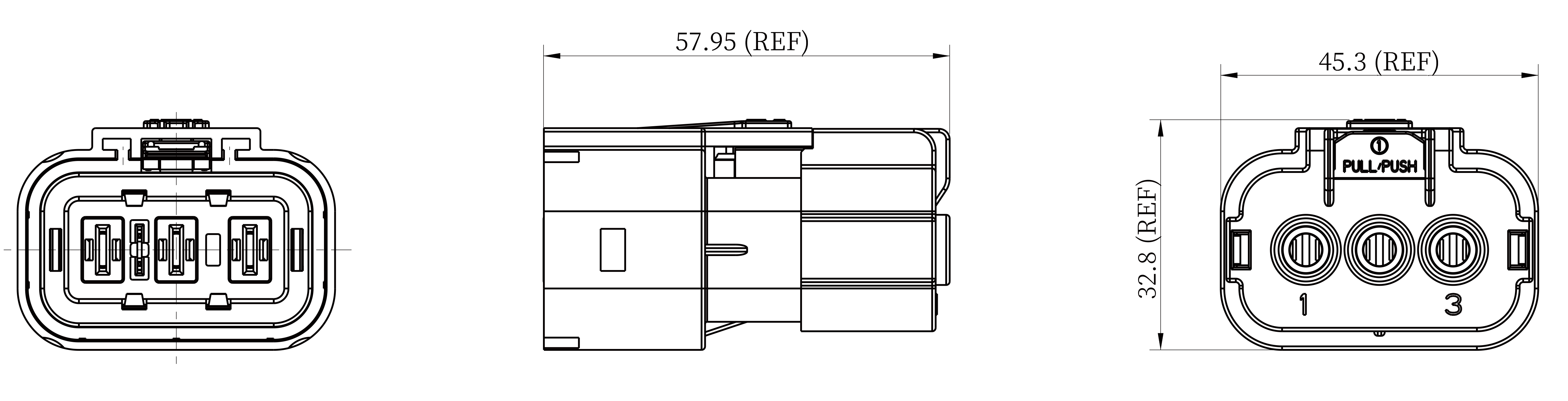

3-Position Plug Outline Drawing
3-Position Receptacle Outline Drawing

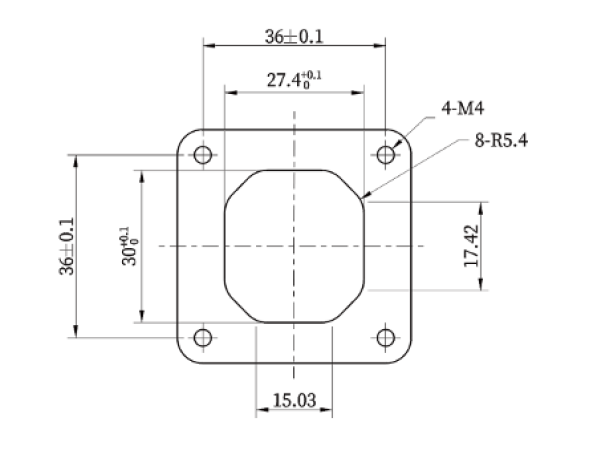

Recommended Panel Cutout (Integrated Core)

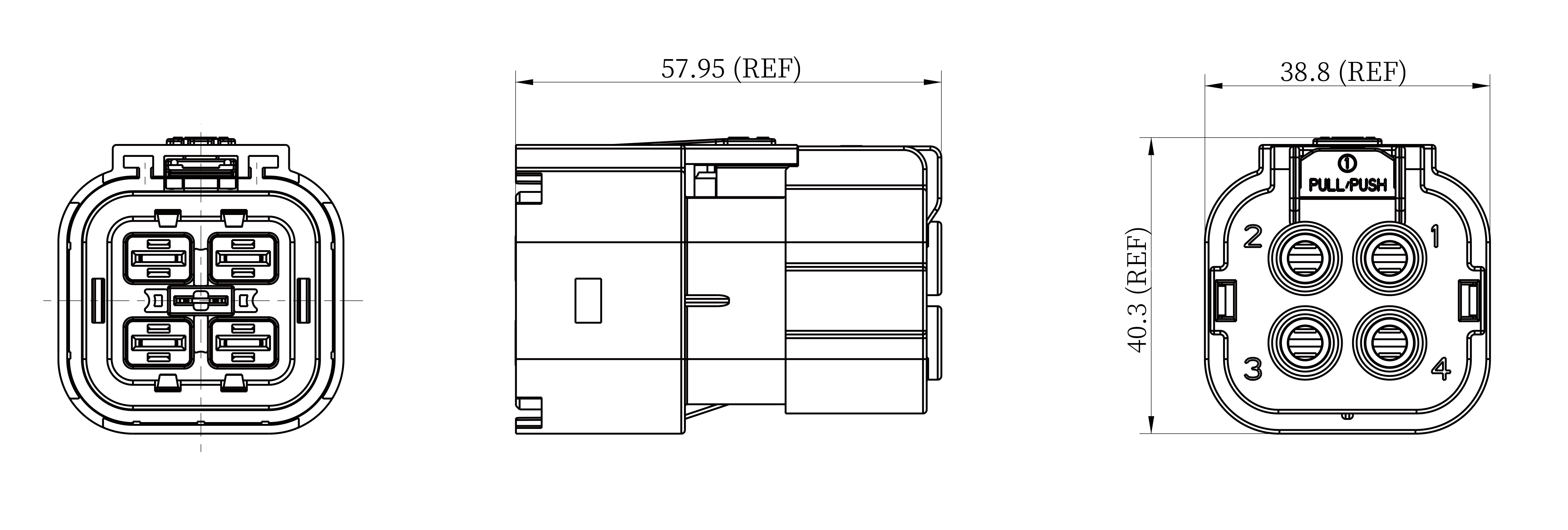

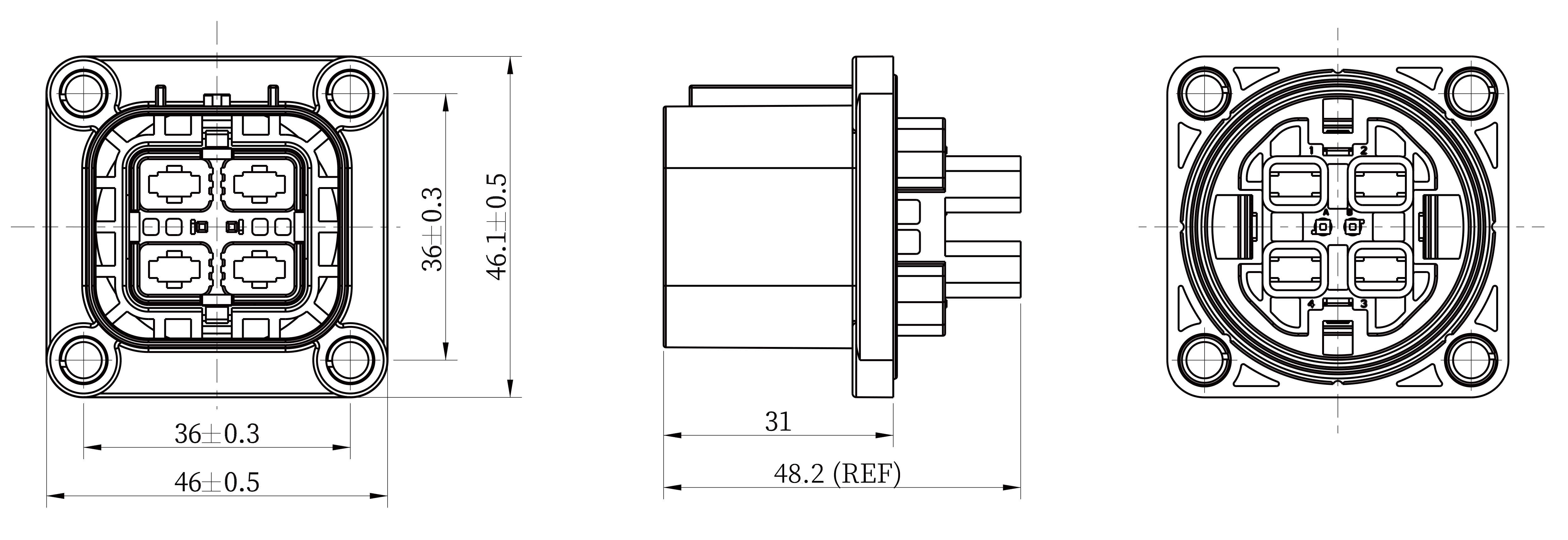

4-Position Plug Outline Drawing
4-Position Receptacle Outline Drawing
Recommended Panel Cutout
