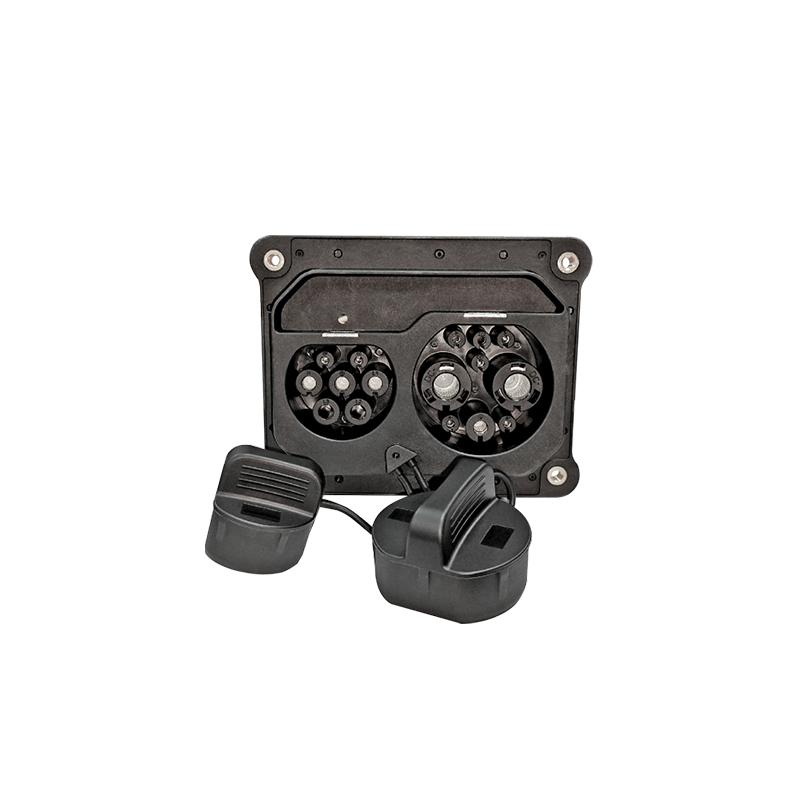

GB/T Modular AC/DC Vehicle Inlet Socket

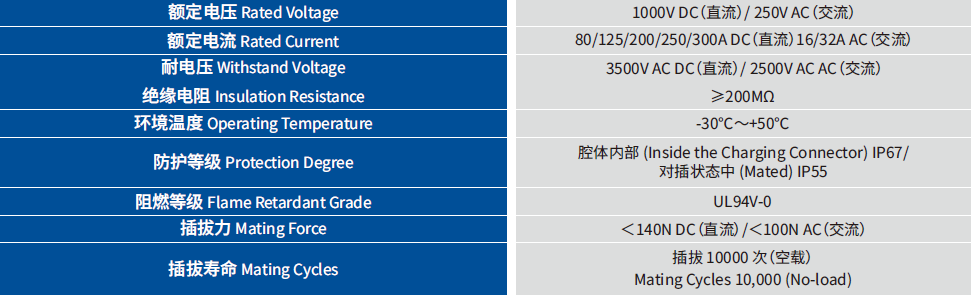

| Certification |
GB/T20234.3-2023 GB/T20234.2-2015 |
| Rated Voltage | 1000V DC/250V AC |
| Rated Current | 80/125/200/250/300A DC 16/32A AC |
| Withstand Voltage | 3500V AC DC / 2500V AC AC |
| Insulation Resistance | ≥200MΩ |
| Operating Temperature |
-30℃〜+50℃ |
|
Protection Degree |
IP55(Mated)IP67(Inside the Charging Connector) |
|
Flame Retardant Grade |
UL94V-0 |
|
Mating Force |
<140N DC / <100N AV |
|
Mating Cycles |
10000 (No-load) |
Share:
Related Products
Description
Datasheet
Highlights
| Production Process | ||||
|
Injection workshop |
Mixing workshop |
Machining workshop |
Stranded cabling |
Heat shrink tube production |
|
Moulding workshop |
Rubber injection workshop |
Stamping workshop |
Irradiation workshop |
Embossing tube production |
|
① Perfect quality management and process production. |
 |
|
|
② A professional team engaged in the production and research and development of this product for more than 12 years. |
|
③ A first-class and complete production workshop and equipment. |
 |
|
|
④ Comprehensive product testing equipment. We have the first authorized UL sighting laboratory in China. |
