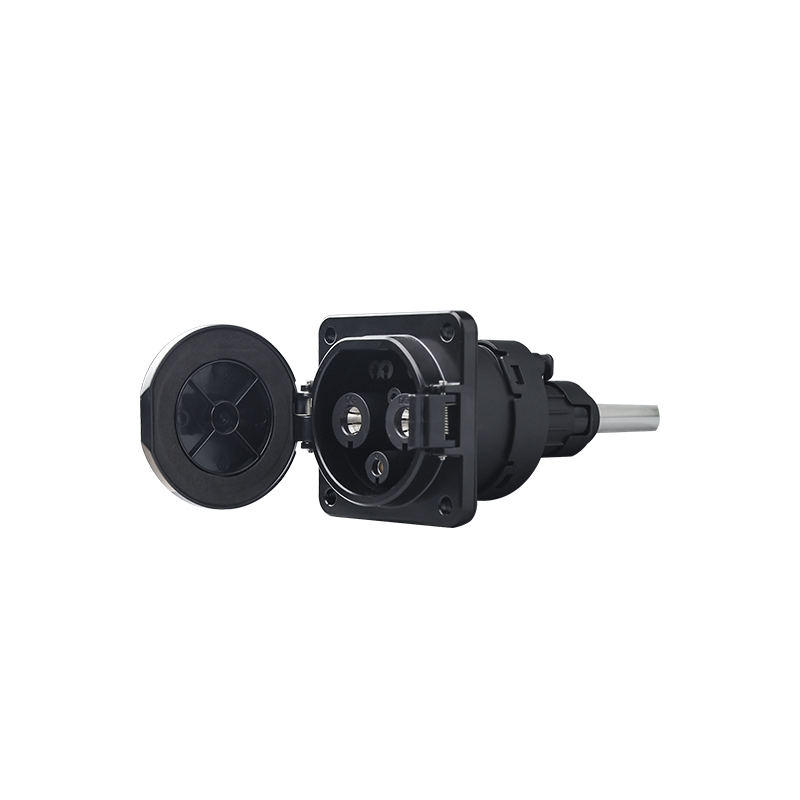

Modular Front-mount DC Vehicle Inlet Socket (Busbar Version)

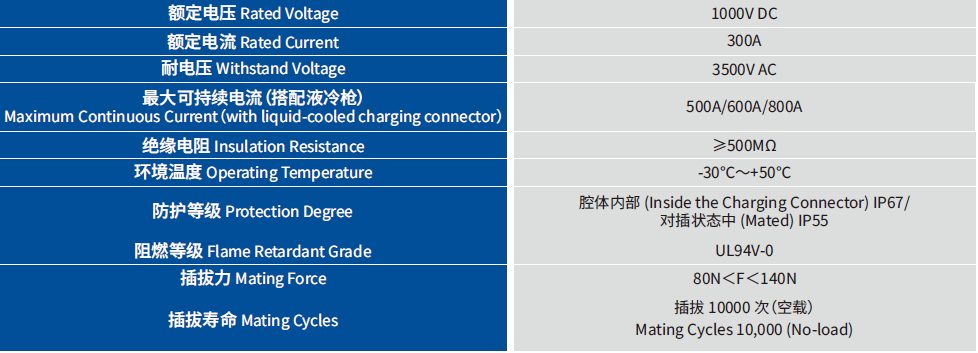

| Certification |
GB/T 20234.3-2023 |
| Rated Voltage | 1000V DC |
| Rated Current | 300A |
| Withstand Voltage | 3500V AC |
| Maximum Continuous Current(with liquid-cooled charging connector | 500A/600/800A |
| Insulation Resistance | ≥500MΩ |
| Operating Temperature |
-30℃〜+50℃ |
|
Protection Degree |
IP55(Mated)IP67(Inside the Charging Connector) |
|
Flame Retardant Grade |
UL94V-0 |
|
Mating Force |
80N＜F<140N |
|
Mating Cycles |
10000(No-load) |
Share:
Related Products
Description
Datasheet
Highlights
| Production Process | ||||
|
Injection workshop |
Mixing workshop |
Machining workshop |
Stranded cabling |
Heat shrink tube production |
|
Moulding workshop |
Rubber injection workshop |
Stamping workshop |
Irradiation workshop |
Embossing tube production |
|
① Perfect quality management and process production. |
 |
|
|
② A professional team engaged in the production and research and development of this product for more than 12 years. |
|
③ A first-class and complete production workshop and equipment. |
 |
|
|
④ Comprehensive product testing equipment. We have the first authorized UL sighting laboratory in China. |
