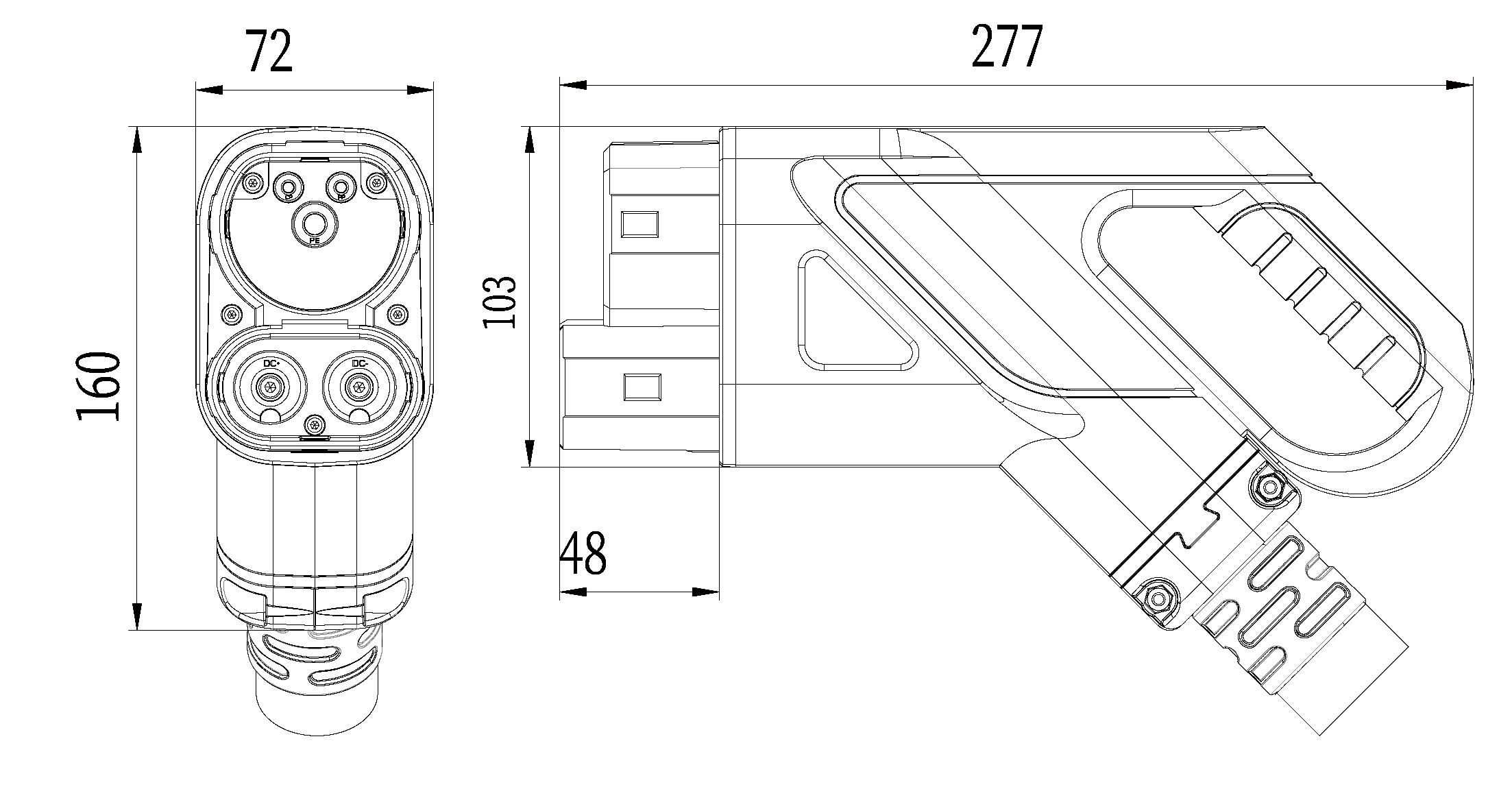

CCS2 High Power Oil-cooled Charging Connector
| Item No : |
WOER-CCS2-C-DC500-01-LC1
|
| Color : | Black |
| Certification : | IEC 62196-3:2022 |
| TUV : | YES |
| CB: | YES |
| Rated Current : | 500A (socket to 120 sq.mm wire) |
Related Products
|
Product Certifications & Patents: Woer New Energy has a professional R&D team of hundreds of experts and holds over 300 invention and utility model patents. Our company and products are fully certified by ISO 9001, ISO 14001, IATF 16949, UL, CSA, TUV, and SGS, ensuring premium quality and professional service for global clients.
|
 |
| Production Process | ||||
|
Cable Cutting |
Wire Stripping |
Overmolding |
Laser Marking |
Power Terminal Crimping |
|
Signal Terminal Crimping |
Visual Inspection (AOI) |
Performance & Electrical Testing |
Packaging & Weighing |
Warehousing & Storage |
| Rated Voltage | 1000 V DC |
| Rated Current | 500A(socket to 120 sq.mm wire) |
| Withstand Voltage | 3500V AC |
| Maximum Peak Current | 600A |
| Insulation Resistance | ≥ 500MΩ |
| Operating Temperature | -30℃~+40℃ |
| Protection Degree | IP55(mated) |
| Flame Retardant Grade | UL94 V-0 |
| Mating Forces | F<100N |
| Mating Cycles | ≥10000(No-load) |
| Cooling Power Requirement | 2.4KW |
| Cooling Liquid Flow | 2-6LPM |
| Terminal Working Temperature | 90℃ |
| Maximum Allowable Pressure | 0.6Mpa Max. |
|
① Perfect quality management and process production. |
 |
|
|
② A professional team engaged in the production and research and development of this product for more than 12 years. |
|
③ A first-class and complete production workshop and equipment. |
 |
|
|
④ Comprehensive product testing equipment. We have the first authorized UL sighting laboratory in China. |
